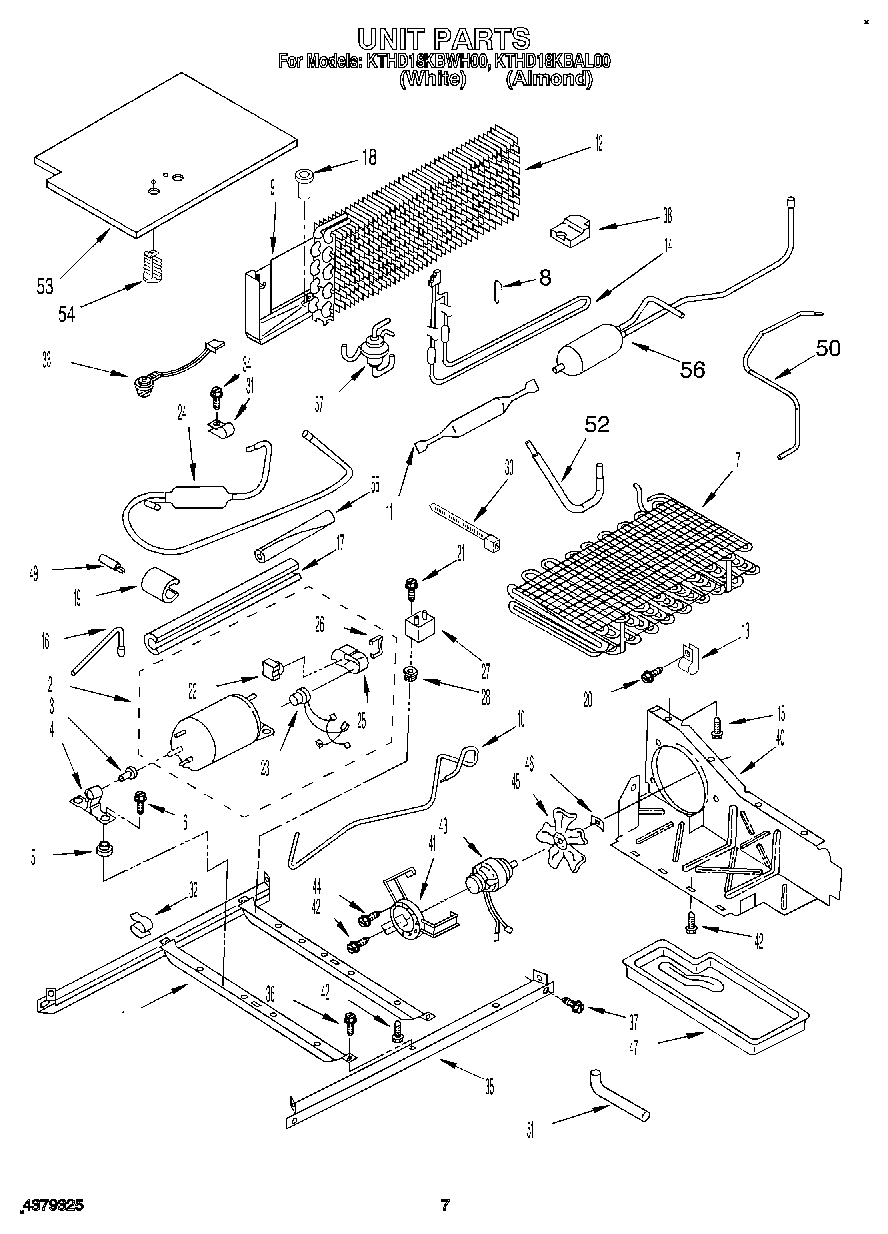

KTHD18KBAL00 05 – UNIT

KTHD18KBAL00 05 – UNIT

Written by

in

KTHD18KBAL00 05 – UNIT

Products

Position	Product
1	Unit, Frame
2	Compressor KIt Includes Items 22 (23, 25, 26 & 27)
3	Grommet, Compressor Bracket
4	Bracket, Mounting
5	Grommet, Compressor (4)
6	Screw (4)
7	Condenser Assembly
8	Support, Heater
9	Drain Pan & Heat Shield
10	Tube, Discharge
11	W10843121 Whirlpool Refrigerator Tube
12	Evaporator
13	Tube Clamp
14	Heater, Defrost
16	Tube, Process
17	WP2002171 Whirlpool Refrigerator Sleeve
18	Drain Fitting
19	WP2158826 Whirlpool Refrigerator Dampener
20	WP489128 Whirlpool Refrigerator Screw
21	W11693756 Whirlpool Screw Assembly
22	Relay (See Overload)
23	Overload (Service (Includes Relay))
23	Overload (Production (Includes Relay))
24	Muffler
25	Terminal Cover (Service)
26	Strap, Cover
27	WPW10662129 Whirlpool Refrigerator Run Capacitor
28	Screw Grommet
30	WPW10339879 Whirlpool Wire Tie
31	Clamp Tube
32	Clip, Wire (2)
33	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
34	WP489478 Whirlpool Refrigerator Screw
35	Unit, Rail
36	WP489427 Whirlpool Refrigerator Screw
37	489340 Whirlpool Refrigerator Screw
38	Wedge, Air Baffle
40	Air, Baffle
41	Fan, Mounting Bracket
42	WP489464 Whirlpool Refrigerator Screw
43	833697 Whirlpool Condenser Fan Motor
44	681390 Whirlpool Refrigerator Screw
45	Fan Blade
46	WP486692 Whirlpool Refrigerator Nut
47	Tray, Evaporator
49	Capacitor, Start
50	Tube, Condenser To Fluid Valve
51	Fitting, Drain
52	Tube Fluid Valve To Heat Loop
53	Cover, Unit Bottom
54	489396 Whirlpool Refrigerator Clip
55	Sleeve
56	Reservoir Assy.
57	Fluid Control Valve
57	VALVE, ACCESS (5/8“)
57	VALVE, ACCESS (1/2“)
57	WP978025 Whirlpool Refrigerator Valve
57	978030 Whirlpool Refrigerator Valve
57	978027 Whirlpool Refrigerator Primary Valve
57	978026 Whirlpool Refrigerator Primary Valve
57	876764 Whirlpool Refrigerator Primary Valve
