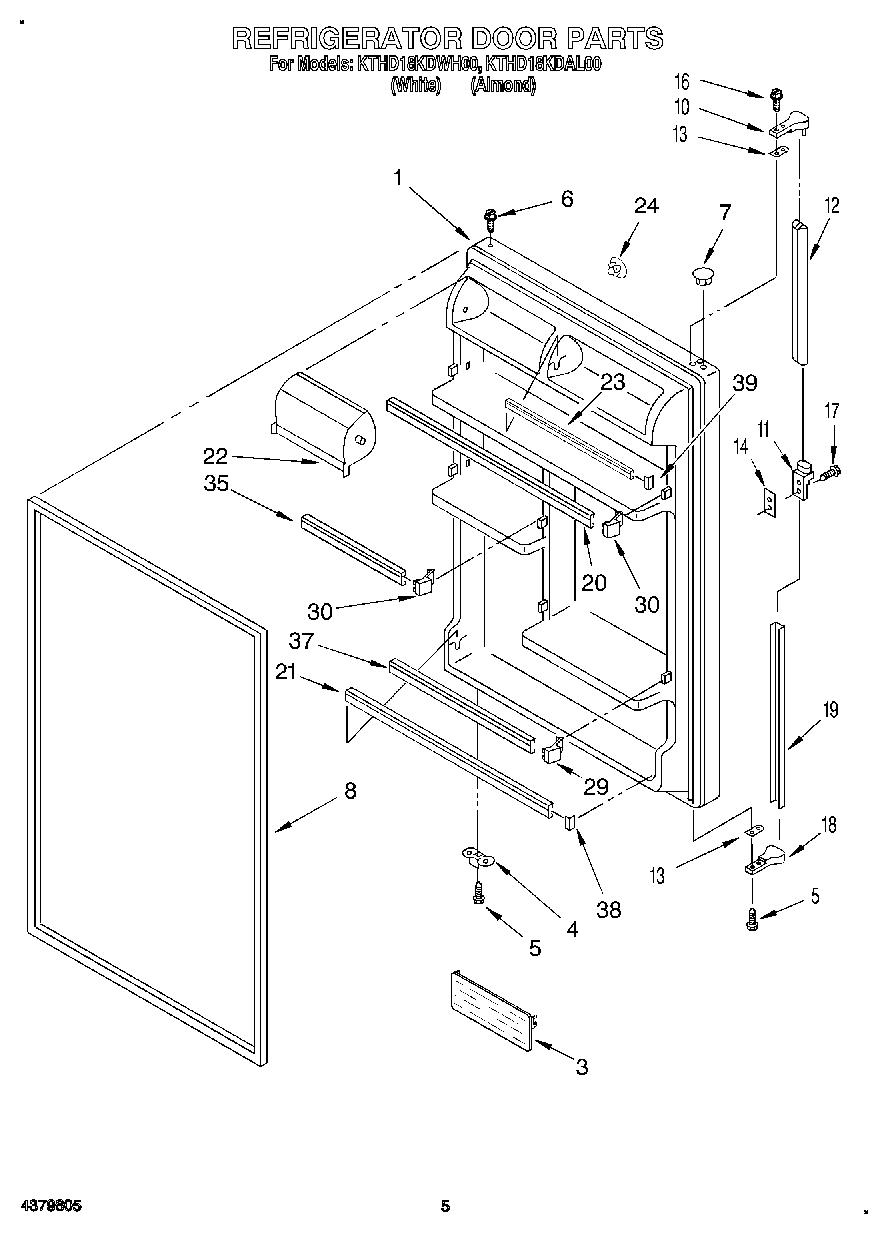

KTHD18KDAL00 04 – REFRIGERATOR DOORadmin2025-04-26T12:15:33+00:00KTHD18KDAL00 04 – REFRIGERATOR DOOR
Products
| Position | Product |
|---|
| 1 | Panel, Refrigerator Door (Includes Item 8) (White) |
| 1 | Panel, Refrigerator Door (Includes Item 8) (Almond) |
| 3 | WP2188234 Whirlpool Shelf |
| 4 | Bracket, Door Stop |
| 5 | WP488921 Whirlpool Refrigerator Screw |
| 6 | WP8281206 Whirlpool Refrigerator Screw |
| 7 | Hole Plug (Almond) |
| 7 | WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug |
| 8 | 2159057 Whirlpool Refrigerator Fresh Food Door Gasket |
| 10 | End Cap |
| 11 | Handle End, Side |
| 12 | Handle, Center (Almond) |
| 12 | Handle, Center (White) |
| 13 | Spacer, Handle |
| 14 | Shim, End Cap |
| 16 | WP488920 Whirlpool Refrigerator Screw |
| 17 | WP488729 Whirlpool Refrigerator Door Screw |
| 18 | Endcap, Insert Retainer |
| 19 | Handle, Extension (Almond) |
| 19 | Handle, Extension (White) |
| 20 | Trim, Door Shelf |
| 21 | Trim, Door Shelf |
| 22 | WP2218113 Whirlpool Dairy Door |
| 23 | TRIM-DOOR |
| 24 | Hole Plug, Handle (Almond) |
| 24 | WP2189000 Whirlpool Refrigerator Handle Plug |
| 29 | Plug-Trim |
| 30 | WP2195915 Whirlpool Door Shelf Support |
| 35 | Trim, Door Shelf |
| 37 | Trim, Door Shelf |
| 38 | WP2156006 Whirlpool Refrigerator Shelf Trim Endcap |
| 39 | ENDCAP-TRM |
