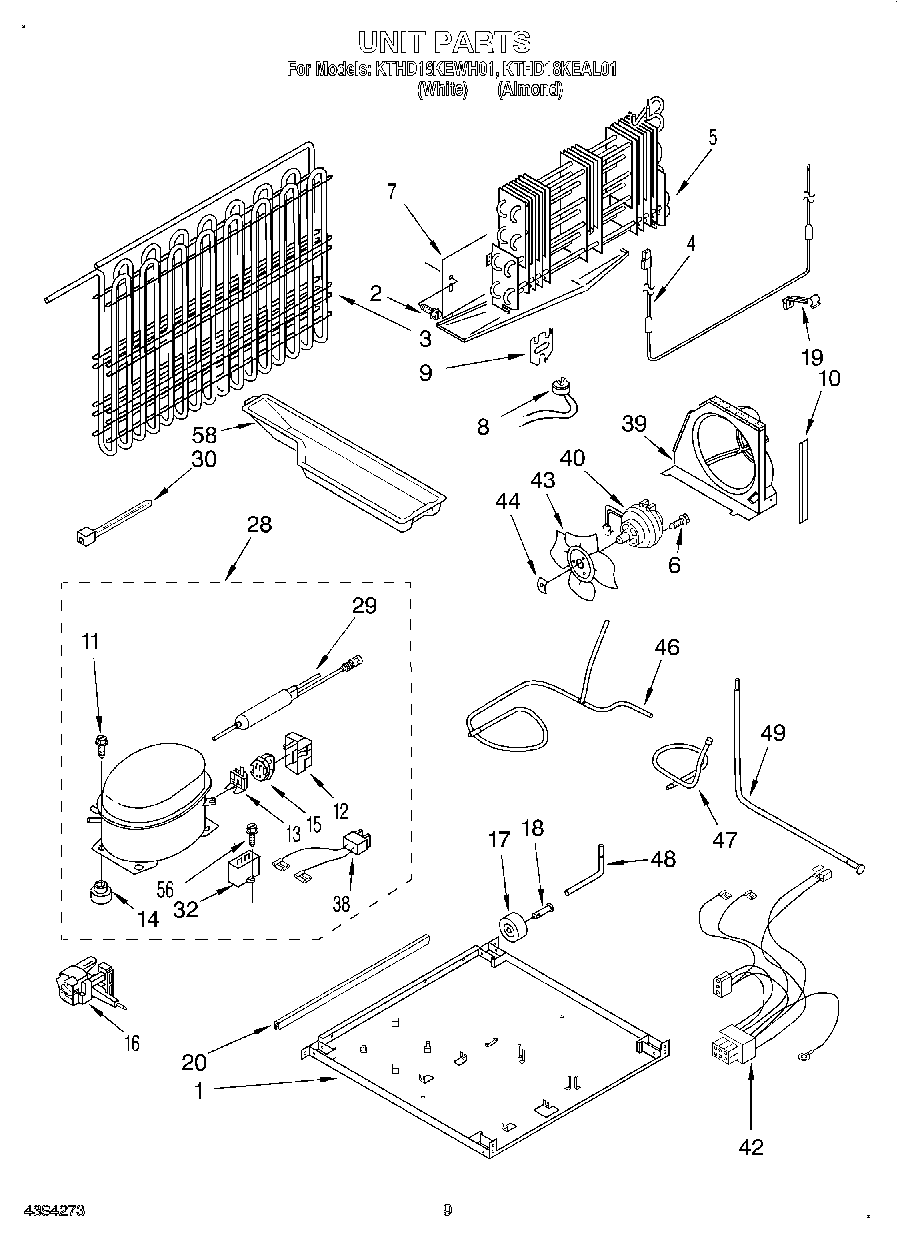

KTHD18KEAL01 06 – UNIT, LIT/OPTIONAL

KTHD18KEAL01 06 – UNIT, LIT/OPTIONAL

Written by

in

KTHD18KEAL01 06 – UNIT, LIT/OPTIONAL

Products

PositionProduct
Torx Key
WPL LIT2184595
WPL LIT2184529
W11729596 Whirlpool Ice Maker Field Install Kit
WPL LIT2172667
1Plate, Unit Mounting
2WP489478 Whirlpool Refrigerator Screw
3Condenser
4WP2315531 Whirlpool Refrigerator Heater
5Evaporator Assy.
6Screw
7Drain Pan
8WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
9Bracket, Heater
10Extension, Air Baffle
11SCREW
12WP2162358 Whirlpool Refrigerator Terminal Cover
134387913 Whirlpool Refrigerator Primary Overload Relay
13Overload (Production (Includes Relay))
14W11661108 Whirlpool Grommet
14876811 Whirlpool Grommet
15Relay (See Overload)
16Module
17Roller (2)
18W11594405 Whirlpool Axle
19Clip, Heater
20Protector
28Installation Kit
28876765 Whirlpool Primary Mounting Kit Refrigerator
28W10309988 Whirlpool Refrigerator Compressor
29W10843121 Whirlpool Refrigerator Tube
30Clamp (Production Only)
32Capacitor
32WPW10662129 Whirlpool Refrigerator Run Capacitor
38WP2172890 Whirlpool Refrigerator Wire
39Air Baffle
40W10822259 Whirlpool Refrigerator Condenser Fan Motor
42Wire Assy. Unit
43Fan, Blade
44WP486692 Whirlpool Refrigerator Nut
46Tube, Discharge
47Tube, Suction
482154109 Whirlpool Refrigerator Tube
49Tube, Condenser To Heat Loop
56WP489128 Whirlpool Refrigerator Screw
58Almond (Uncut)
58WP72107 Whirlpool Touchup
58350956 Whirlpool Spray Assembly
58350942 Whirlpool Spray Paint
5872017 Whirlpool Appliance Touch-Up Paint White
58Door Reversal Instructions
58350930 Whirlpool White Spray Paint
58212643 Whirlpool Refrigerator Permagum Sealer
58WPL 799832
58VALVE, ACCESS (5/8“)
58799344 Whirlpool Refrigerator Paint
58Start Kit
58Evap. Tray
58978030 Whirlpool Refrigerator Valve
58WP505587 Whirlpool Refrigerator Sealer
58WPL 876029
58WPL 799833
58978027 Whirlpool Refrigerator Primary Valve
58TAPE, VINYL (3/4 X 108“)
58VALVE, ACCESS (1/2“)
58WP978025 Whirlpool Refrigerator Valve
58978026 Whirlpool Refrigerator Primary Valve
58285006 Whirlpool Spray
58511873 Whirlpool Refrigerator Paint
58CEMENT, ALUMILASTIC (1 1/4 OZ.)
58606755 Whirlpool Refrigerator Bag
58833938 Whirlpool Refrigerator Terminal
58876370 Whirlpool Refrigerator Insulation
58WP503695 Whirlpool Refrigerator Sealer
58876764 Whirlpool Refrigerator Primary Valve
5872032 Whirlpool Touch Up Paint Black
58WP542638 Whirlpool Refrigerator Grease
