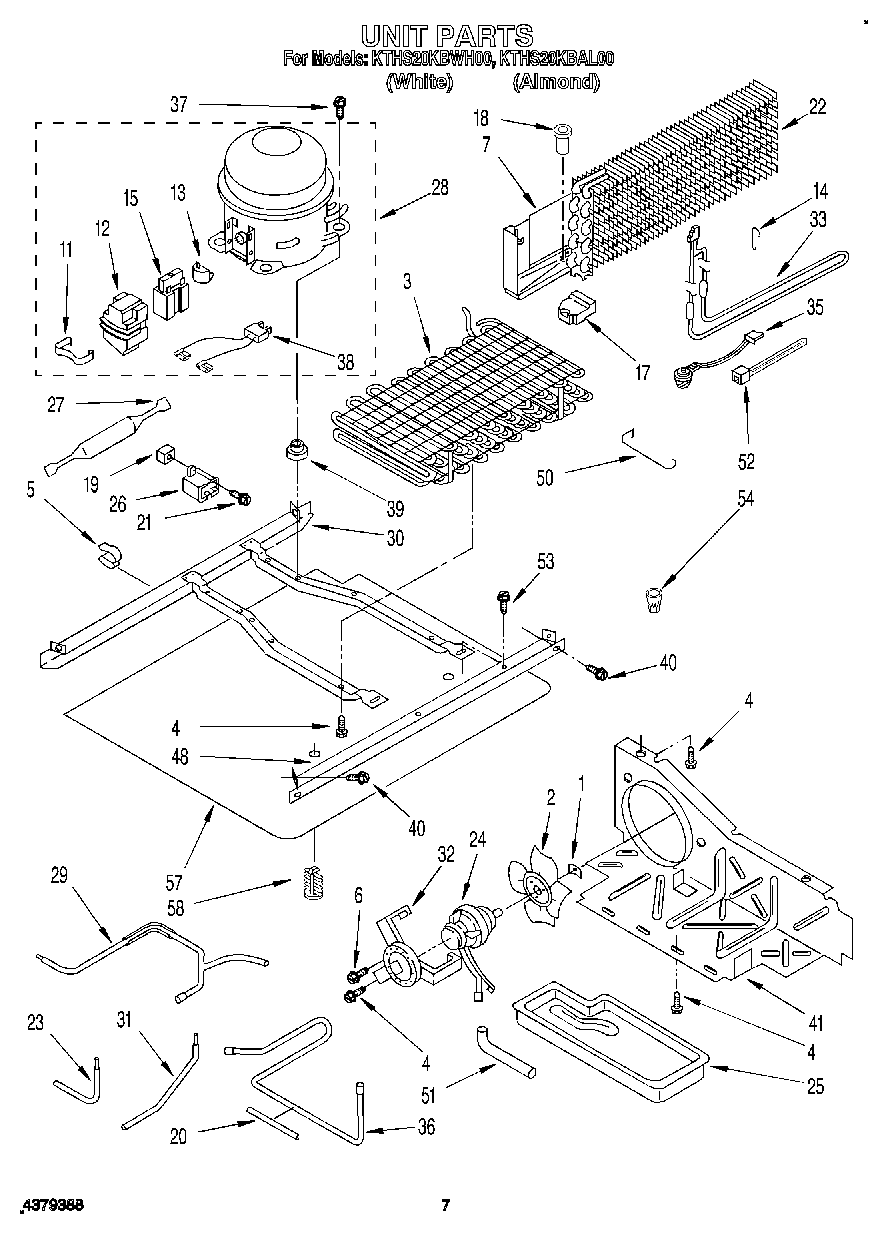

KTHS20KBWH00 05 – UNIT

KTHS20KBWH00 05 – UNIT

Written by

in

KTHS20KBWH00 05 – UNIT

Products

PositionProduct
1WP486692 Whirlpool Refrigerator Nut
2Fan, Blade
3Condenser Assembly
4WP489464 Whirlpool Refrigerator Screw
5Clip, Wire (2)
6681390 Whirlpool Refrigerator Screw
7Drain Pan/ Heat Shield
11Strap
12Cover
13OVERLOAD
14Support, Heater
15Relay (See Overload)
17Support (R.S.)
17Support-Evaporator (L.S.)
18Drain Fitting
19Screw Grommet
20SLEEVE
21W11693756 Whirlpool Screw Assembly
22Evaporator
232154109 Whirlpool Refrigerator Tube
24833697 Whirlpool Condenser Fan Motor
25WPW10614158 Whirlpool Refrigerator Evaporator Tray
26Capacitor
27W10843121 Whirlpool Refrigerator Tube
28W10439652 Whirlpool Refrigerator Compressor
28876765 Whirlpool Primary Mounting Kit Refrigerator
29Tube, Discharge
30Unit Mounting Frame
31Tube, Condenser To Heat Loop
32Fan, Motor Bracket
33Heater, Defrost
35WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
36Tube, Suction
38WP2172890 Whirlpool Refrigerator Wire
39876811 Whirlpool Grommet
40489340 Whirlpool Refrigerator Screw
41Air Baffle
48Unit Mounting Rail
501105612 Whirlpool Fan Guard
51Drain Extension
52WPW10339879 Whirlpool Wire Tie
53WP489427 Whirlpool Refrigerator Screw
54Wire Connector
57Cover-Unit Btm.
58978026 Whirlpool Refrigerator Primary Valve
58978027 Whirlpool Refrigerator Primary Valve
58WP978025 Whirlpool Refrigerator Valve
58VALVE, ACCESS (5/8“)
58978030 Whirlpool Refrigerator Valve
58VALVE, ACCESS (1/2“)
58489396 Whirlpool Refrigerator Clip
58876764 Whirlpool Refrigerator Primary Valve
