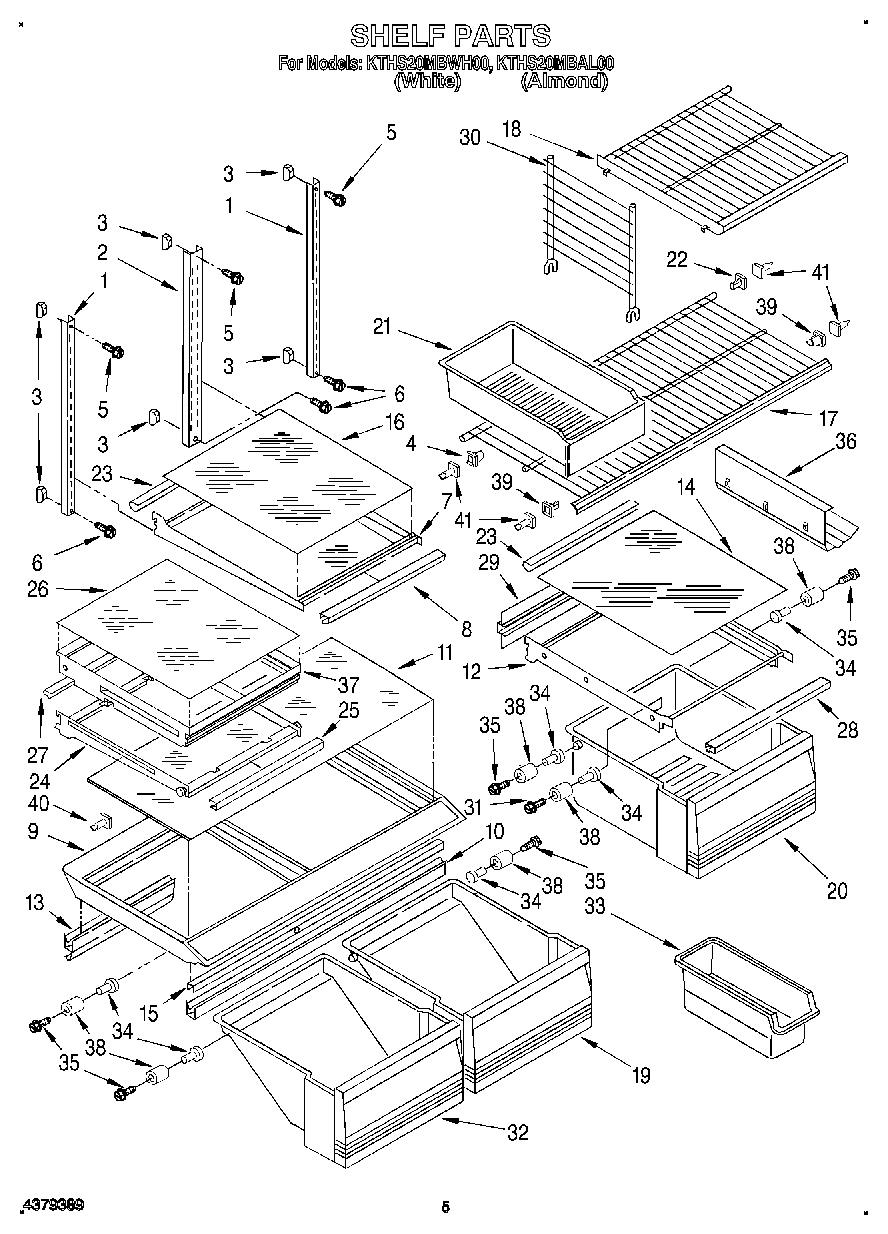

KTHS20MBAL00 04 – SHELF, LIT/OPTIONAL

KTHS20MBAL00 04 – SHELF, LIT/OPTIONAL

Written by

in

KTHS20MBAL00 04 – SHELF, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2169427
	WPL LIT2161695
	Modular Icemaker Service Sheet
	Torx Key
	WPL LIT2168920
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	520965 Whirlpool Refrigerator Support
5	Screw (3)
6	WP488163 Whirlpool Refrigerator Screw
7	Shelf, Cantilever (2)
8	Gasket (Front)
9	Pan Cover & Roller Assembly
10	WP1125528 Whirlpool Refrigerator Gasket
11	Glass, Crisper Cover
12	Pan Shelf & Roller Assembly
13	Gasket, Pan Cover-Rear
14	Glass, Shelf
15	WP2172748 Whirlpool Drawer Support
16	Glass, Shelf
17	Shelf, Freezer
18	Shelf, Freezer
19	Crisper, Pan Front
20	Meat Pan Assy.
21	PAN-ICE
22	819091 Whirlpool Refrigerator Shelf Stud
23	Retainer, Glass
24	Frame & Roller Assembly
25	Gasket (Front)
26	Glass Shelf
27	Reflector, Shelf
28	Gasket, Front
29	Gasket, Rear
30	Divider
31	WP489261 Whirlpool Refrigerator Screw
32	Pan, Utility
33	WP982704 Whirlpool Refrigerator Container
34	Eyelet, Roller
36	Wine & Egg Rack
37	Frame & Roller Assembly Movable
38	Roller
39	Stud, Front R.S.
40	W10854959 Whirlpool Refrigerator Shelf Stud
41	Almond (Uncut)
41	833938 Whirlpool Refrigerator Terminal
41	Door Reversal Instructions
41	350930 Whirlpool White Spray Paint
41	876370 Whirlpool Refrigerator Insulation
41	606755 Whirlpool Refrigerator Bag
41	511873 Whirlpool Refrigerator Paint
41	350942 Whirlpool Spray Paint
41	Leveler (Thinner)
41	212643 Whirlpool Refrigerator Permagum Sealer
41	WP503695 Whirlpool Refrigerator Sealer
41	WP505587 Whirlpool Refrigerator Sealer
41	Stud, Support
41	799344 Whirlpool Refrigerator Paint
41	72032 Whirlpool Touch Up Paint Black
41	285006 Whirlpool Spray
41	WPL 876029
41	WPL 799833
41	CEMENT, ALUMILASTIC (1 1/4 OZ.)
41	TAPE, VINYL (3/4 X 108“)
41	350956 Whirlpool Spray Assembly
41	WP72107 Whirlpool Touchup
41	WP542638 Whirlpool Refrigerator Grease
41	72017 Whirlpool Appliance Touch-Up Paint White
