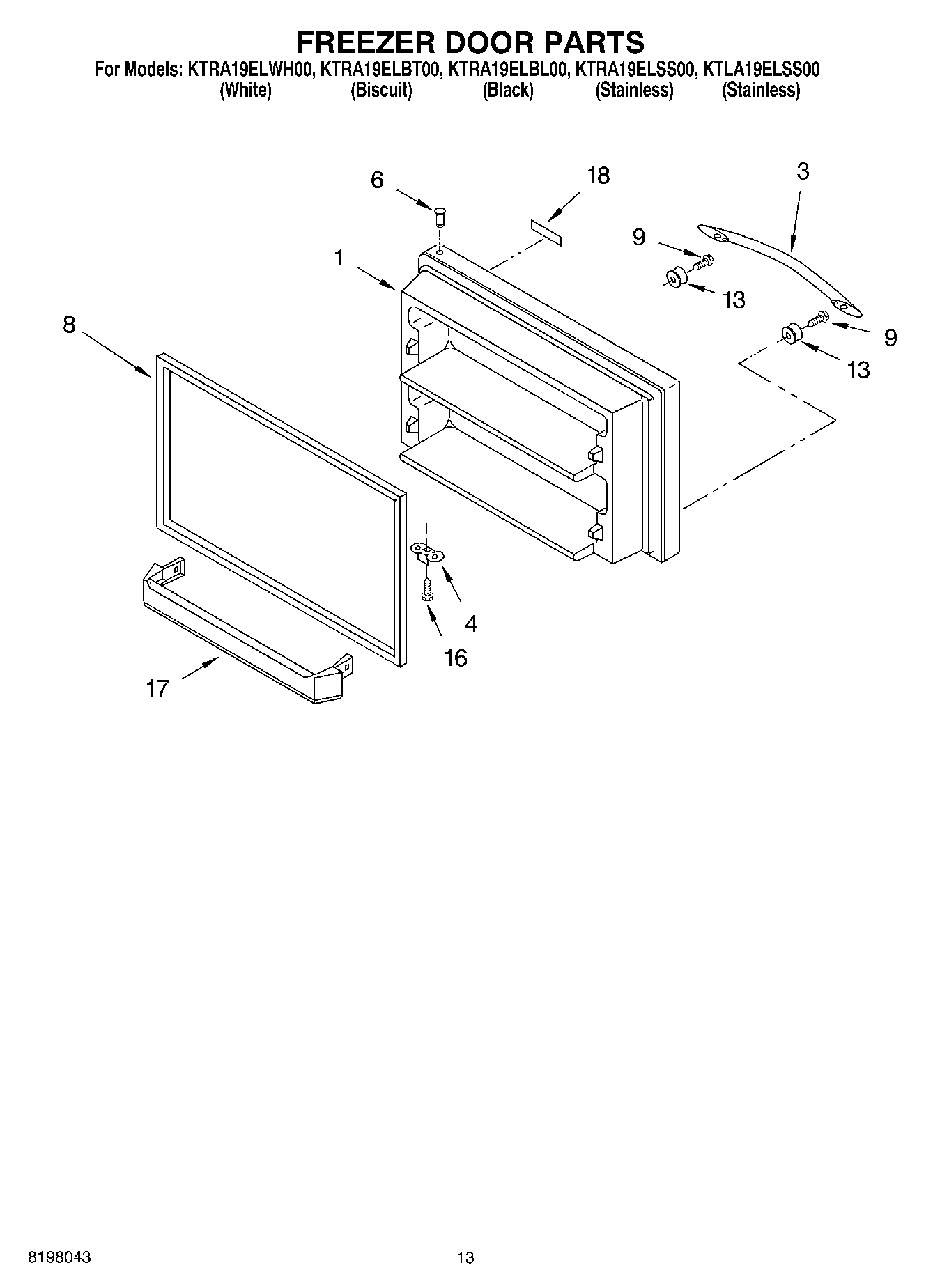

KTLA19ELSS00 07 – FREEZER DOOR

KTLA19ELSS00 07 – FREEZER DOOR

Written by

in

KTLA19ELSS00 07 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (White)
1Freezer Door (Biscuit)
1Freezer Door (Black)
1Freezer Door (Stainless, Left Hand (Includes No.6 & No.8))
1Freezer Door (Stainless, Right Hand)
3Handle (Biscuit)
3Handle (Stainless)
3Handle (White)
3Handle (Black)
4W11745278 Whirlpool Bracket
6WP2183003 Whirlpool Thimble
82177304 Whirlpool Refrigerator FIP Gasket
82159327 Whirlpool Refrigerator Door Gasket
9WP489463 Whirlpool Refrigerator Screw
13WPW10170540 Whirlpool Screw
16WP681249 Whirlpool Screw Assembly
17Trivet, Door
18Nameplate (Black)
18Nameplate (Biscuit)
18Nameplate (White)
18LEFT HAND DOOR SWING (White)
18LEFT HAND DOOR SWING (Black)
18LEFT HAND DOOR SWING (Biscuit)
