KTLA19ELSS01 04 – REFRIGERATOR DOOR

KTLA19ELSS01 04 – REFRIGERATOR DOOR

Written by

in

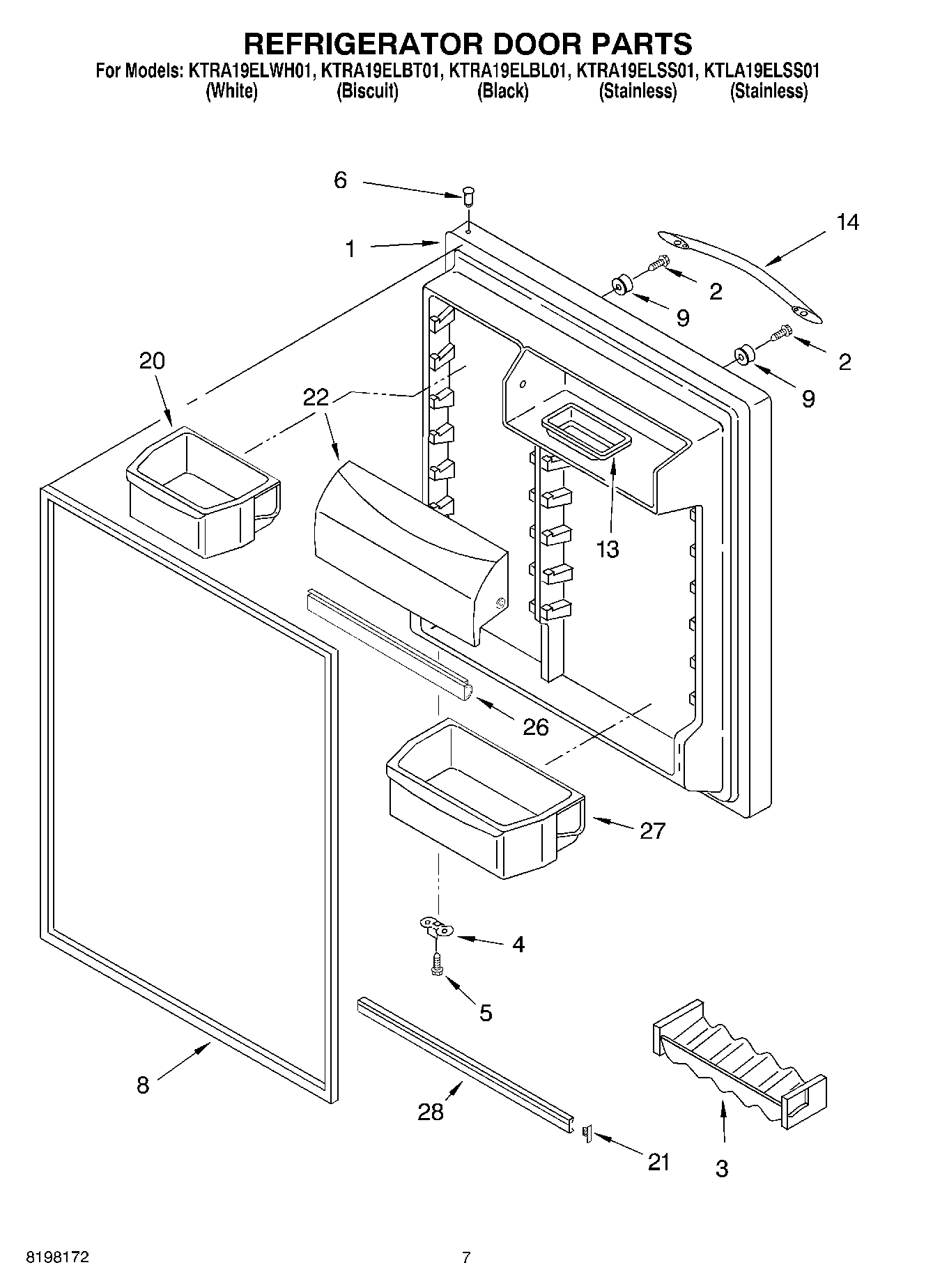

KTLA19ELSS01 04 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Stainless, Left Hand (Includes No.6 & No.8))
1Refrigerator Door (White)
1Refrigerator Door (Black)
1Refrigerator Door (Biscuit)
1Refrigerator Door (Stainless, Right Hand)
2WP489463 Whirlpool Refrigerator Screw
3Beverage Holder
4W11745278 Whirlpool Bracket
5WP488921 Whirlpool Refrigerator Screw
6WP2183003 Whirlpool Thimble
82177305 Whirlpool Refrigerator Door FIP Gasket
82159057 Whirlpool Refrigerator Fresh Food Door Gasket
9WPW10170540 Whirlpool Screw
13Butter Tray
14Handle (Black)
14Handle (Biscuit)
14Handle (White)
14Handle (Stainless)
20Bin, Door Shelf (3)
21WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
22Door, Compartment
26Gasket, Door Compartment
27Bin, Door Shelf
28LEFT HAND DOOR SWING (Biscuit)
28LEFT HAND DOOR SWING (Black)
28LEFT HAND DOOR SWING (White)
28WPW10421484 Whirlpool Refrigerator Door Trim
