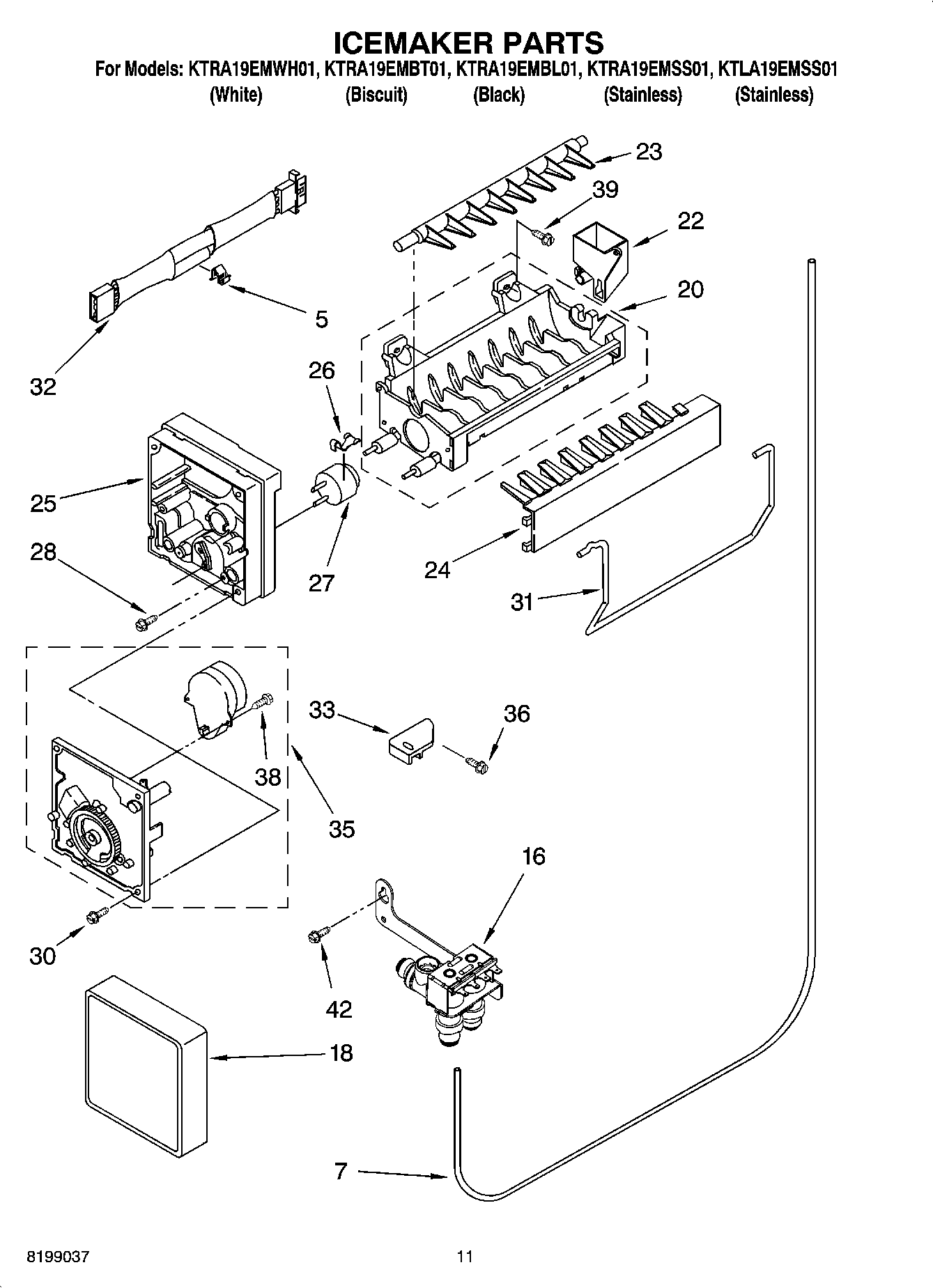

KTLA19EMSS01 06 – ICEMAKER PARTSadmin2025-04-26T12:14:04+00:00KTLA19EMSS01 06 – ICEMAKER PARTS ProductsPositionProduct5WP628379 Whirlpool Refrigerator Clip7W10823511 Whirlpool Refrigerator Water Tube16WP2188808 Whirlpool Refrigerator Inlet Valve18WPW10289690 Whirlpool Ice Maker Cover20WPW10190929 Whirlpool Refrigerator Ice Maker Mold22WP628356 Whirlpool Refrigerator Fill Cup23WP627843 Whirlpool Refrigerator Ejector Arm24WP2182124 Whirlpool Refrigerator Stripper Arm25WP2195914 Whirlpool Refrigerator Ice Maker Housing26WP2315522 Whirlpool Refrigerator Clip27WP627985 Whirlpool Icemaker Cycling Thermostat288533917 Whirlpool Refrigerator Screw30WP681249 Whirlpool Screw Assembly31WP627792 Whirlpool Refrigerator Shut Off Arm32WP2187464 Whirlpool Refrigerator Wire Harness33W11500948 Whirlpool Refrigerator Bracket35W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly36WP489478 Whirlpool Refrigerator Screw38489136 Whirlpool Refrigerator Screw39WP488163 Whirlpool Refrigerator Screw42WP489442 Whirlpool Refrigerator Screw1004317943 Whirlpool Refrigerator Ice Maker Assembly
