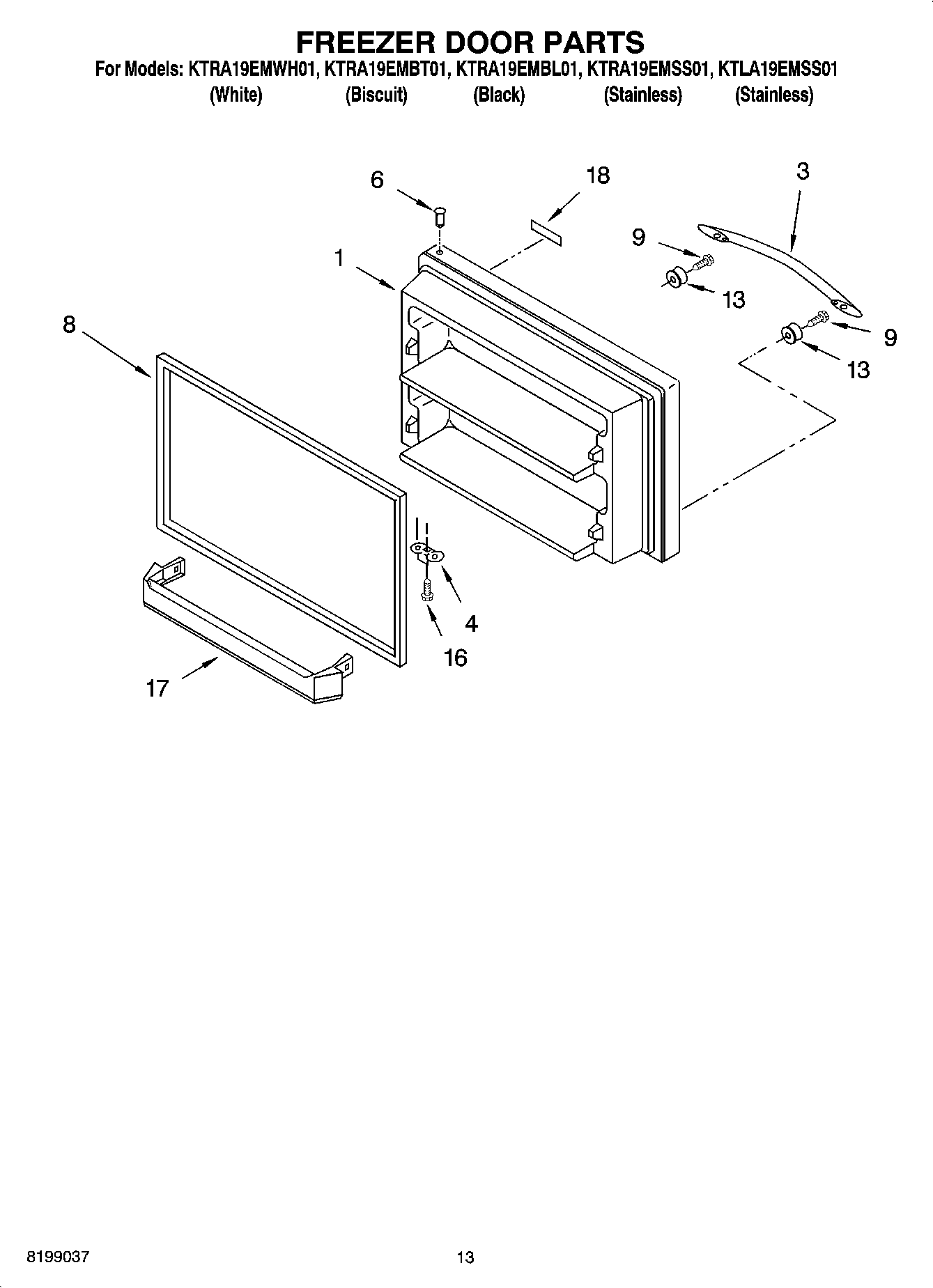

KTLA19EMSS01 07 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Black)
1	Freezer Door (Biscuit)
1	Freezer Door (Stainless, Left Hand (Includes No.6 & No.8))
1	Freezer Door (White)
1	Freezer Door (Stainless, Right Hand)
3	Handle (Biscuit)
3	Handle (Stainless)
3	Handle (White)
3	Handle (Black)
4	W11745278 Whirlpool Bracket
6	WP2183003 Whirlpool Thimble
8	2177304 Whirlpool Refrigerator FIP Gasket
8	2159327 Whirlpool Refrigerator Door Gasket
9	WP488163 Whirlpool Refrigerator Screw
13	WPW10170540 Whirlpool Screw
16	WP681249 Whirlpool Screw Assembly
17	Trivet, Door
18	Nameplate (Black)
18	Nameplate (Biscuit)
18	Nameplate (White)
18	LEFT HAND DOOR SWING (White)
18	LEFT HAND DOOR SWING (Black)
18	LEFT HAND DOOR SWING (Biscuit)
18	LEFT HAND DOOR SWING
