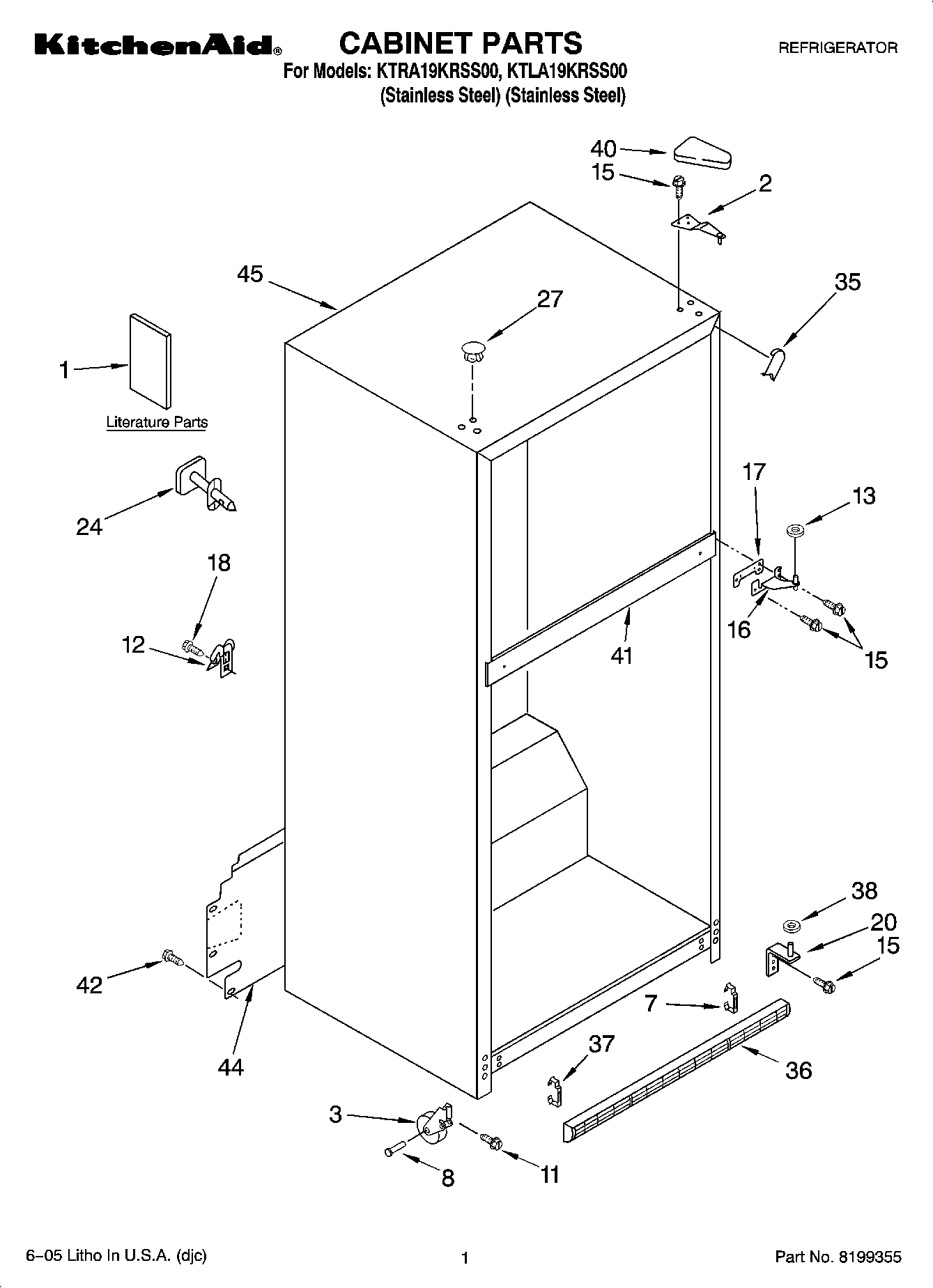

KTLA19KRSS00 01 – CABINET PARTS

KTLA19KRSS00 01 – CABINET PARTS

Written by

in

KTLA19KRSS00 01 – CABINET PARTS

Products

PositionProduct
1Service & Wiring Sheet
1Customer Instructions
1Use & Care Guide
1Energy Label
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
72254385 Whirlpool Refrigerator Clip
8W11594405 Whirlpool Axle
11WP3400504 Whirlpool Refrigerator Screw
12549193 Whirlpool Refrigerator Power Clamp
13WP489467 Whirlpool Hinge Shim
15WP489497 Whirlpool Screw
16WP2254618 Whirlpool Center Door Hinge
17WP2183854 Whirlpool Refrigerator Shim
18WP489464 Whirlpool Refrigerator Screw
20WP2254473 Whirlpool Refrigerator Door Hinge
24Fitting, Water Tube (Not Serviced)
27WP2183998 Whirlpool Refrigerator Button Plug
35W11252732 Whirlpool Refrigerator Filler
36Grille (Includes Illus. 4 & 24) (Black)
37CLIP, GRILLE
38WP487576 Whirlpool Washer
40WP2213363 Whirlpool Refrigerator Cover
41Rail Center (Not Serviced)
42WP489442 Whirlpool Refrigerator Screw
44Cover, Unit
45Cabinet (Not A Serviceable Part)
