KTLA19KRSS00 04 – REFRIGERATOR DOOR PARTS

KTLA19KRSS00 04 – REFRIGERATOR DOOR PARTS

Written by

in

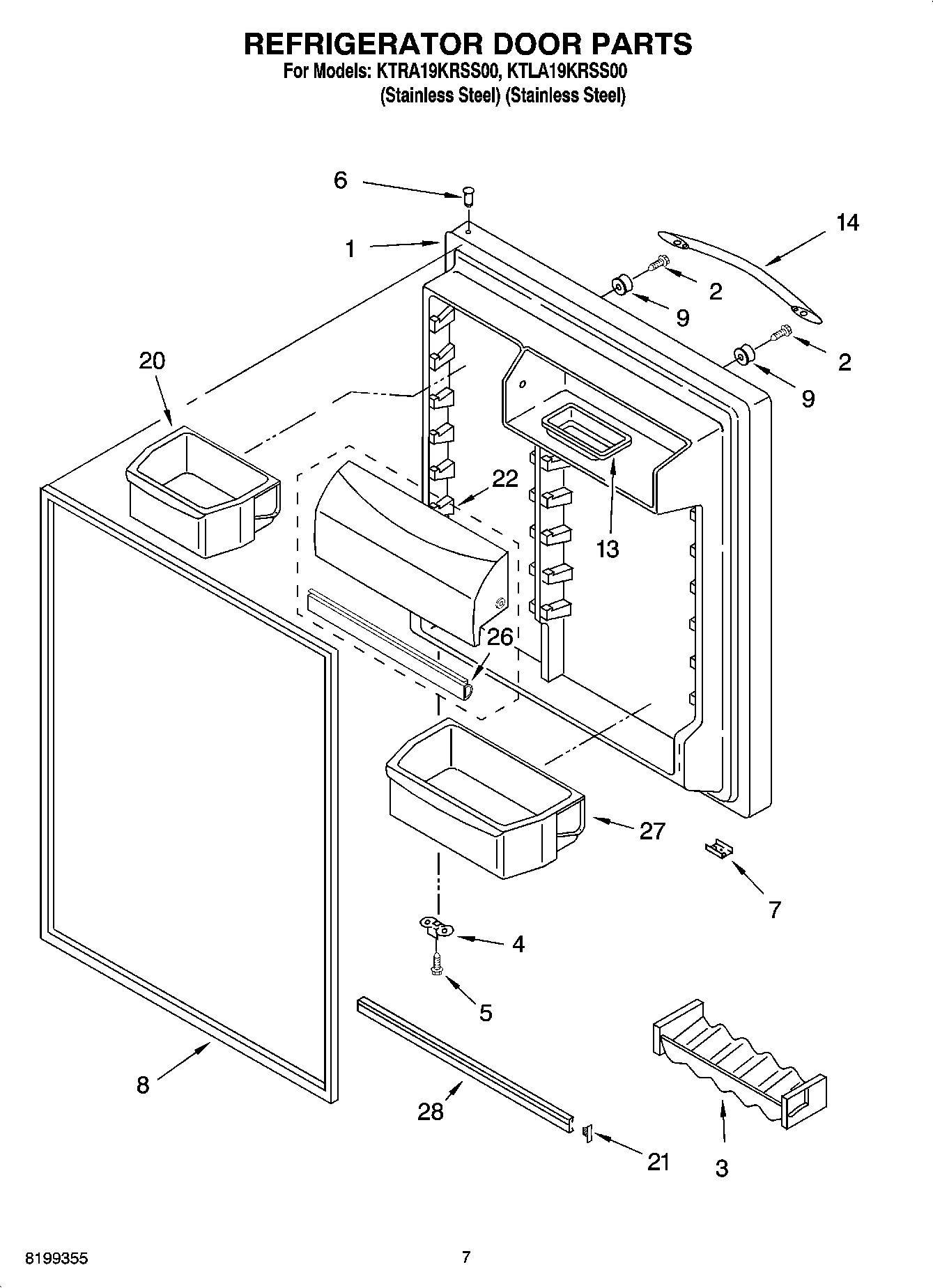

KTLA19KRSS00 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Stainless, Left Hand (Includes No.6 & No.8))
1Refrigerator Door (Stainless, Right Hand)
2WP488163 Whirlpool Refrigerator Screw
3Beverage Holder
4W11745278 Whirlpool Bracket
5WP488921 Whirlpool Refrigerator Screw
6WP2183003 Whirlpool Thimble
7Tap Plate
82177305 Whirlpool Refrigerator Door FIP Gasket
9WPW10170540 Whirlpool Screw
13Butter Tray
14Handle (Stainless)
20Bin, Door Shelf (3)
21WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
22Door, Compartment (Includes 9)
26Gasket, Door Compartment
27Bin, Door Shelf
28WPW10421484 Whirlpool Refrigerator Door Trim
