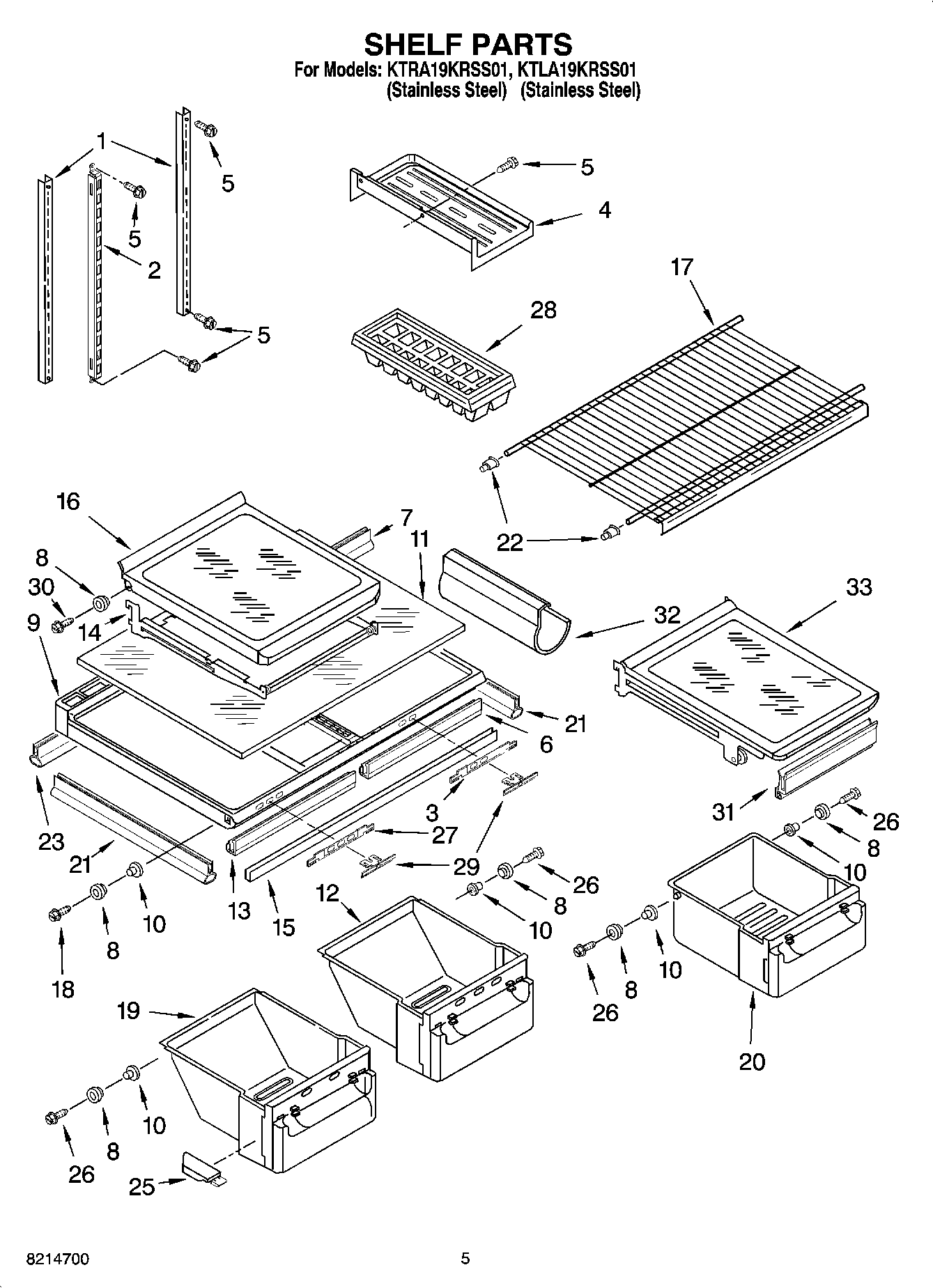

KTLA19KRSS01 03 – SHELF PARTS

Products

Position	Product
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	Slide, Humidity
4	Shelf, Ice Tray
5	WP489478 Whirlpool Refrigerator Screw
6	WP1125528 Whirlpool Refrigerator Gasket
7	Gasket, Crisper Cover (Rear)
8	Roller
9	Crisper Cover (Includes Rollers)
10	Eyelet, Roller
11	Glass, Crisper Cover
12	Pan, Crisper (Includes Rollers)
14	Frame Assembly, Spillguard
15	WP2172748 Whirlpool Drawer Support
16	Shelf Assembly, Spillguard (3) (Includes Rollers)
17	WP2176275 Whirlpool Refrigerator Wire Shelf
18	WPW10272364 Whirlpool Refrigerator Screw
19	Pan, Crisper (Includes Items 8,10,27 & 29)
20	Pan, Meat (Includes Rollers)
21	Gasket, Crisper Cover (Side) (4)
22	2163762 Whirlpool Refrigerator Cup Assembly
23	Gasket, Pan Cover-Rear
25	Cap, Crisper (Right Side)
25	Cap, Crisper (Left Side)
26	WP489261 Whirlpool Refrigerator Screw
27	Slide, Humidity
28	WP841180A Whirlpool Microwave Glass Turntable Tray
29	Button, Humidity Control
30	Screw
31	Gasket, Front
32	W10777924 Whirlpool Refrigerator Wine Rack
33	Shelf Assembly, Spillguard
