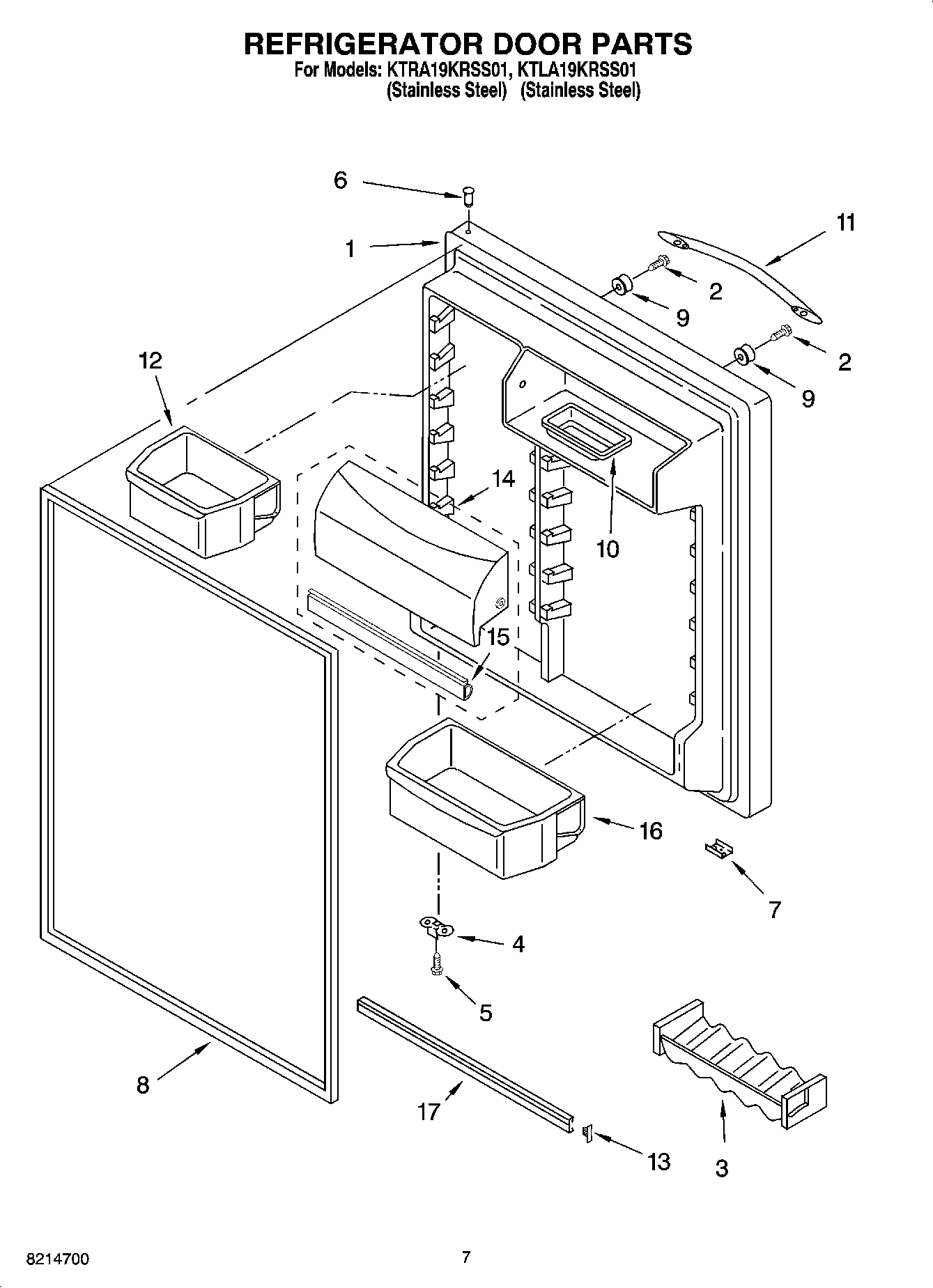

KTLA19KRSS01 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Stainless, Left Hand (Includes No.6 & No.8))
1Refrigerator Door (Stainless, Right Hand)
2WP488163 Whirlpool Refrigerator Screw
3Beverage Holder
4W11745278 Whirlpool Bracket
5WP488921 Whirlpool Refrigerator Screw
6WP2183003 Whirlpool Thimble
7Tap Plate
82177305 Whirlpool Refrigerator Door FIP Gasket
9WPW10170540 Whirlpool Screw
10Butter Tray
11Handle (Stainless)
12Bin, Door Shelf (3)
13WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
14Door, Compartment (Includes 9)
15Gasket, Door Compartment
16Bin, Door Shelf
17WPW10421484 Whirlpool Refrigerator Door Trim
