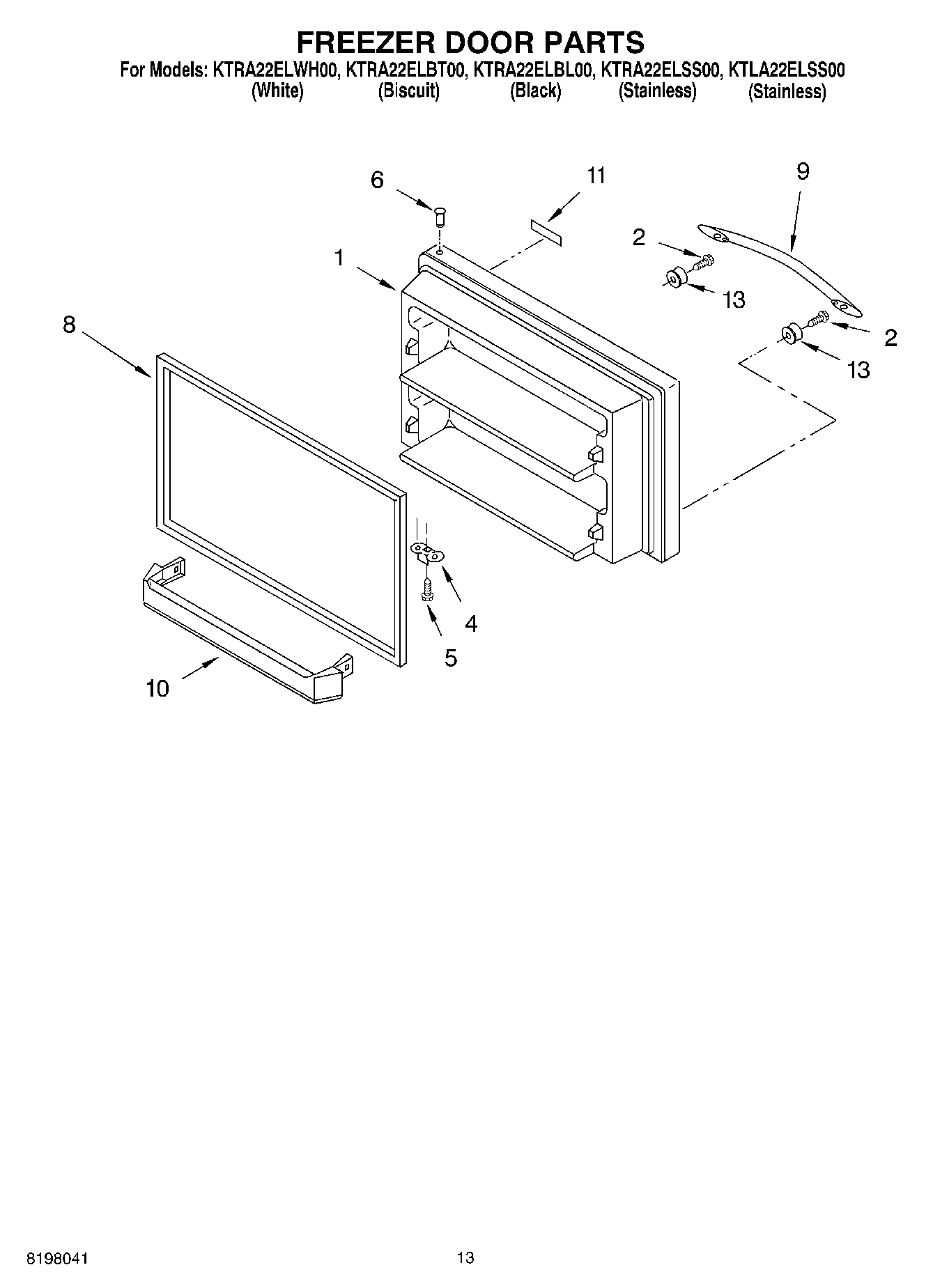

KTLA22ELSS00 07 – FREEZER DOOR

Products

Position	Product
1	Freezer Door (Includes Illus. 3,6 & 8) (White)
1	Freezer Door (Includes Illus. 3,6 & 8) (Stainless (For Model KTLA22EMSS03))
1	Freezer Door (Includes Illus. 3,6 & 8) (Stainless (For Model KTRA22EMSS03))
1	Freezer Door (Includes Illus. 3,6 & 8) (Biscuit)
1	Freezer Door (Includes Illus. 3,6 & 8) (Black)
2	WP489463 Whirlpool Refrigerator Screw
4	W11745278 Whirlpool Bracket
5	WP488921 Whirlpool Refrigerator Screw
6	WP2183003 Whirlpool Thimble
8	2177310 Whirlpool Refrigerator Door Gasket
8	WHITE DOOR GASKET-FIP
9	Handle (Black)
9	Handle (White)
9	Handle (Stainless)
9	Handle (Biscuit)
10	Trim, Door
11	Nameplate (Black)
11	Nameplate (Biscuit)
11	Nameplate (White)
13	Stud, Handle
13	LEFT HAND DOOR SWING (White)
13	LEFT HAND DOOR SWING (Biscuit)
13	LEFT HAND DOOR SWING (Black)
