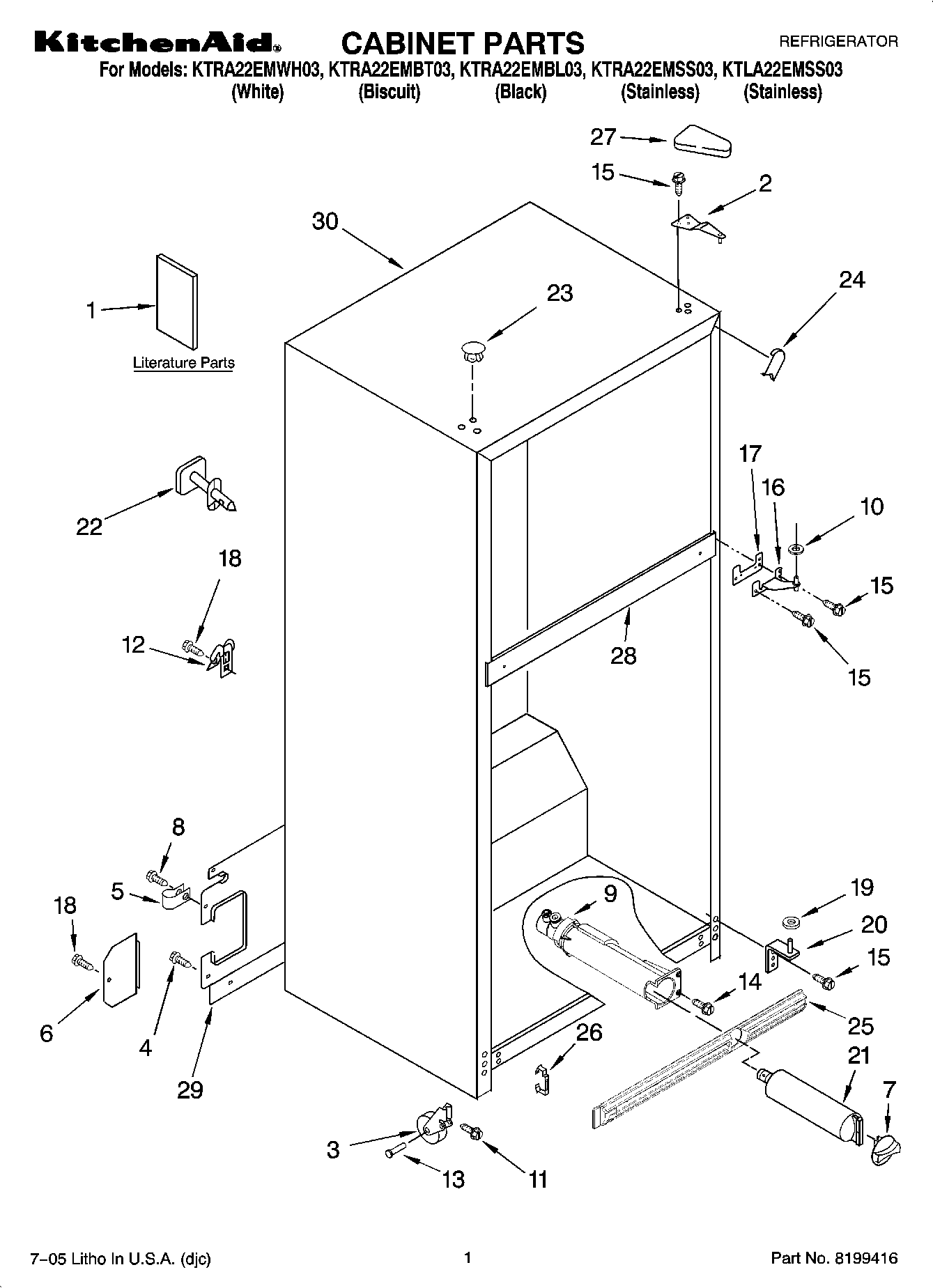

KTLA22EMSS03 01 – CABINET PARTS

Products

PositionProduct
1Use & Care Guide
1Service & Wiring Sheet
1Customer Instructions
1Modular Icemaker Service Sheet
1Customer Instruct Sheet, Wtr Filter
1Energy Label
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
4WP489427 Whirlpool Refrigerator Screw
5WP488366 Whirlpool Refrigerator Clamp
6Cover, Water Valve
7WP2186494W Whirlpool Water Filter Cap
7WP2186494T Whirlpool Water Filter Cap
7WP2186494B Whirlpool Refrigerator Filter Cap
8WP488787 Whirlpool Refrigerator Screw
9WP2225521 Whirlpool Water Filter Housing
10WP489467 Whirlpool Hinge Shim
11WP3400504 Whirlpool Refrigerator Screw
12549193 Whirlpool Refrigerator Power Clamp
13W11594405 Whirlpool Axle
14SCREW
15WP489497 Whirlpool Screw
16WP2254618 Whirlpool Center Door Hinge
17WP2183854 Whirlpool Refrigerator Shim
18WP489464 Whirlpool Refrigerator Screw
19WP487576 Whirlpool Washer
20WP2254473 Whirlpool Refrigerator Door Hinge
21EDR6D1 Whirlpool EveryDrop® Ice and Water Refrigerator Filter 6 (Dark Bl
22Fitting, Water Tube (Not Serviced)
23WP2151652 Whirlpool Refrigerator Button Plug
23WP2183998 Whirlpool Refrigerator Button Plug
23Hole Plug (6) (Biscuit)
24W10283958 Whirlpool Refrigerator Filler
24W11252732 Whirlpool Refrigerator Filler
24WPW10283959 Whirlpool Refrigerator Filler
25Grille (Includes Illus. 39) (Biscuit)
25Grille (Includes Illus. 27) (Black)
25Grille (Includes Illus. 27) (White)
26CLIP, GRILLE
27WP2213360 Whirlpool Refrigerator Cover
272213364 Whirlpool Refrigerator Cover
27WP2213363 Whirlpool Refrigerator Cover
28Rail Center (Not Serviced)
29Cover, Unit
30Cabinet (Not A Serviceable Part)
