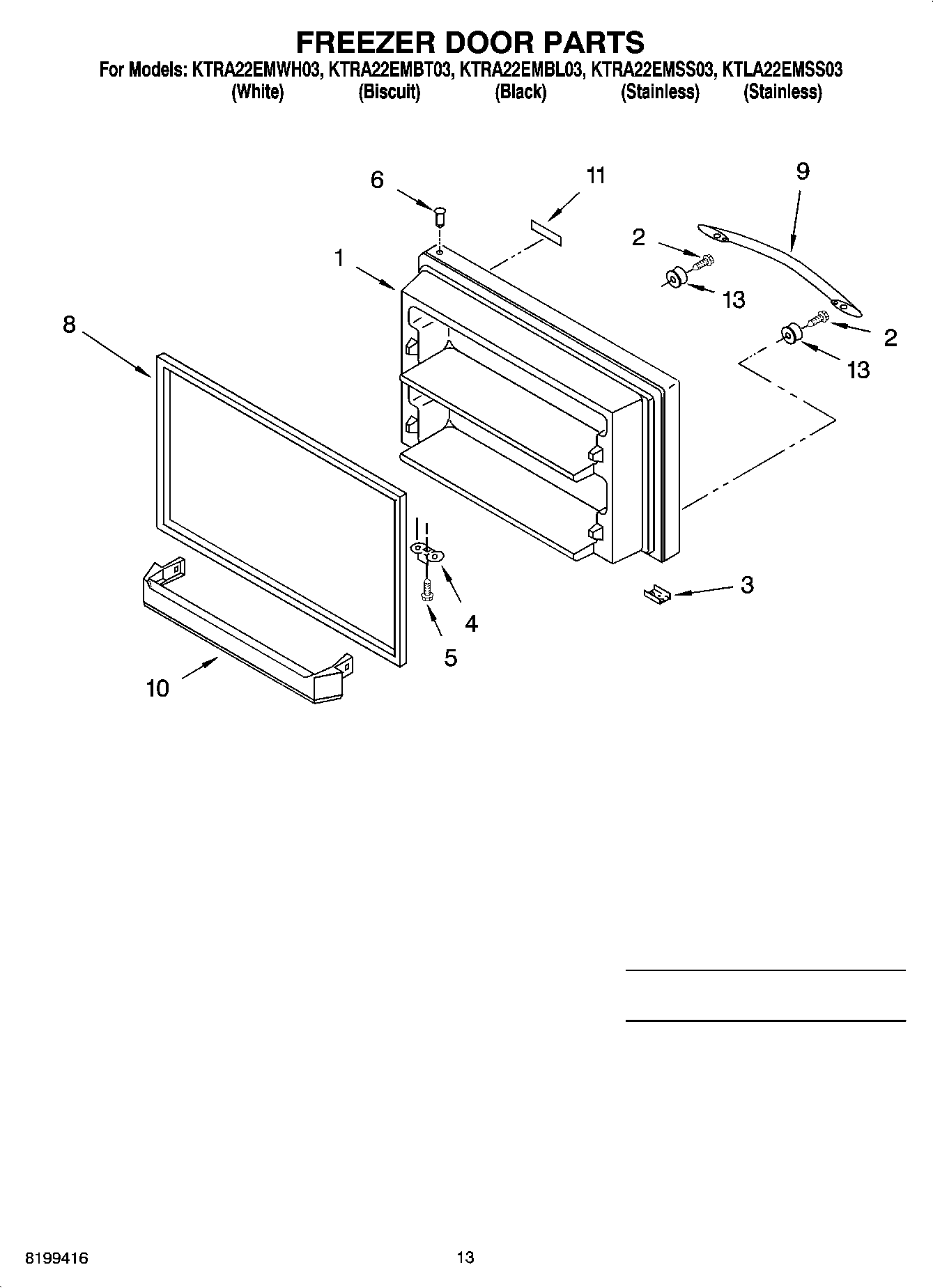

KTLA22EMSS03 07 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes Illus. 3,6 & 8) (Black)
1	Freezer Door (Includes Illus. 3,6 & 8) (Stainless (For Model KTLA22EMSS03))
1	Freezer Door (Includes Illus. 3,6 & 8) (Stainless (For Model KTRA22EMSS03))
1	Freezer Door (Includes Illus. 3,6 & 8) (Biscuit)
1	Freezer Door (Includes Illus. 3,6 & 8) (White)
2	WP488163 Whirlpool Refrigerator Screw
3	Tap Plate
4	W11745278 Whirlpool Bracket
5	WP488921 Whirlpool Refrigerator Screw
6	WP2183003 Whirlpool Thimble
8	WHITE DOOR GASKET-FIP
8	2177310 Whirlpool Refrigerator Door Gasket
9	Handle (Stainless)
9	Handle (White)
9	Handle (Black)
9	Handle (Biscuit)
10	Trim, Door
11	Nameplate (Black)
11	Nameplate (White)
11	Nameplate (Biscuit)
13	LEFT HAND DOOR SWING FREEZER DOOR
13	Following Parts Not Illustrated (Optional Parts Only)
13	LEFT HAND DOOR SWING (Black)
13	LEFT HAND DOOR SWING (Biscuit)
13	LEFT HAND DOOR SWING (White)
13	WPW10170540 Whirlpool Screw
