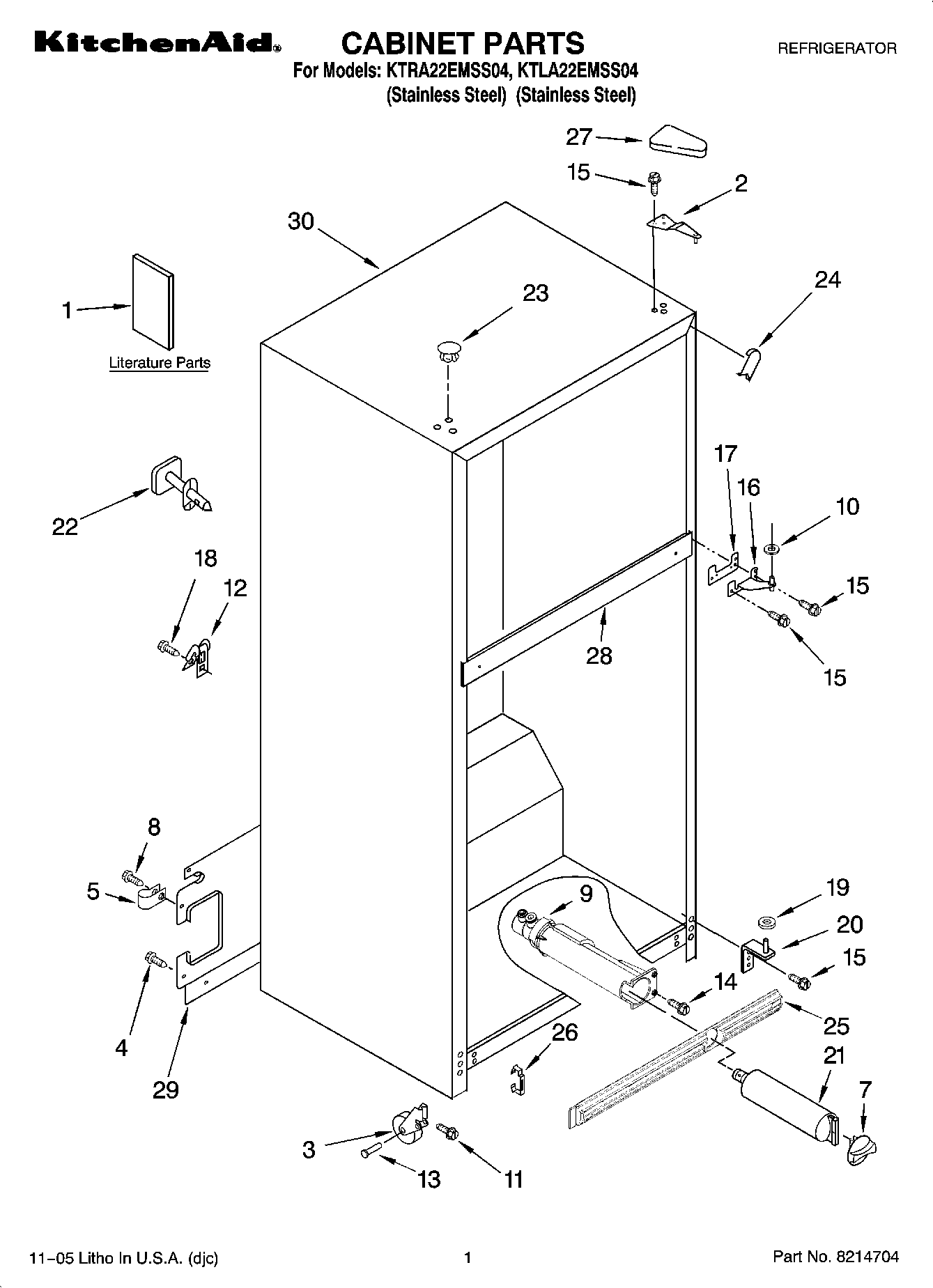

KTLA22EMSS04 01 – CABINET PARTS

Products

Position	Product
1	Modular Icemaker Service Sheet
1	Service & Wiring Sheet
1	Customer Instructions
1	Customer Instruct Sheet, Wtr Filter
1	Energy Label
1	Use & Care Guide
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
4	WP489427 Whirlpool Refrigerator Screw
5	WP488366 Whirlpool Refrigerator Clamp
7	WP2186494B Whirlpool Refrigerator Filter Cap
8	WP488787 Whirlpool Refrigerator Screw
9	WP2225521 Whirlpool Water Filter Housing
10	WP489467 Whirlpool Hinge Shim
11	WP3400504 Whirlpool Refrigerator Screw
12	549193 Whirlpool Refrigerator Power Clamp
13	W11594405 Whirlpool Axle
14	SCREW
15	WP489497 Whirlpool Screw
16	WP2254618 Whirlpool Center Door Hinge
17	WP2183854 Whirlpool Refrigerator Shim
18	WP489464 Whirlpool Refrigerator Screw
19	WP487576 Whirlpool Washer
20	WP2254473 Whirlpool Refrigerator Door Hinge
21	EDR6D1 Whirlpool EveryDrop® Ice and Water Refrigerator Filter 6 (Dark Bl
22	Fitting, Water Tube (Not Serviced)
23	WP2183998 Whirlpool Refrigerator Button Plug
24	W11252732 Whirlpool Refrigerator Filler
25	Grille (Includes Illus. 27) (Black)
26	CLIP, GRILLE
27	WP2213363 Whirlpool Refrigerator Cover
28	Rail Center (Not Serviced)
29	Cover, Unit
30	Cabinet (Not A Serviceable Part)
