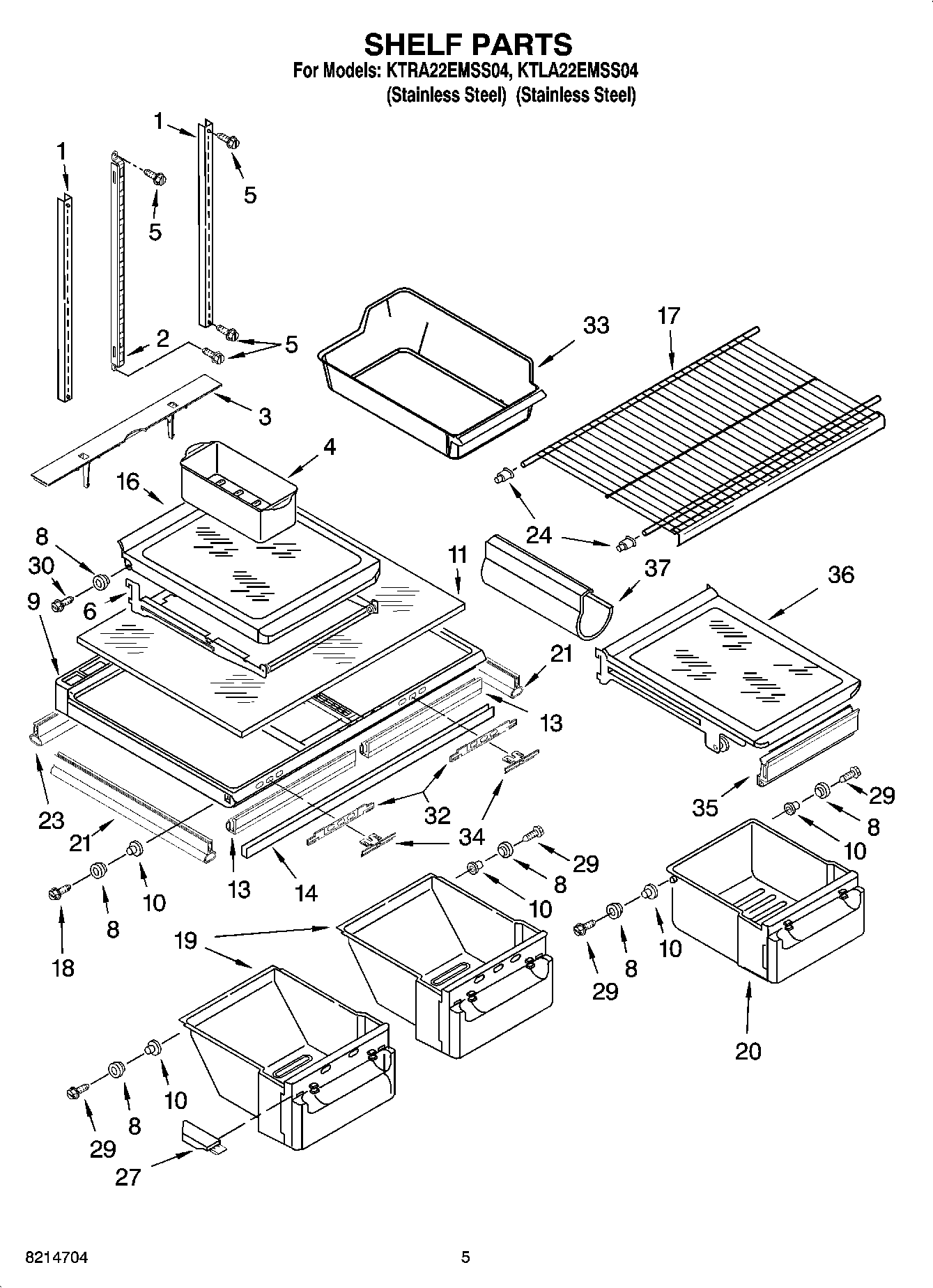

KTLA22EMSS04 03 – SHELF PARTS

Products

Position	Product
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	Deflector-Air
4	W10136387A Whirlpool Refrigerator Egg Container
5	WP489478 Whirlpool Refrigerator Screw
6	Frame Assembly, Cantilever
8	Roller
9	Crisper Cover (Includes Items 8,10,13,18,21,23, 32 & 34)
10	Eyelet, Roller
11	Glass, Crisper Cover
13	WP1125528 Whirlpool Refrigerator Gasket
14	WP2172748 Whirlpool Drawer Support
16	Shelf Assembly, Spillguard (3) (Includes Rollers)
17	Shelf, Freezer
18	WPW10272364 Whirlpool Refrigerator Screw
19	Pan, Crisper (Includes Items 8,10,27 & 29)
20	Pan, Meat (Includes Items 8,10 & 29)
21	Gasket, Crisper Cover (Side) (4)
23	Gasket, Pan Cover-Rear
24	2163762 Whirlpool Refrigerator Cup Assembly
27	Cap, Crisper (Left Side)
27	Cap, Crisper (Right Side)
29	WP489261 Whirlpool Refrigerator Screw
30	Screw
32	Slide, Humidity
33	2254352A Whirlpool Refrigerator Ice Container
34	Button, Humidity Control
35	Gasket, Front
36	Shelf Assembly, Spillguard
37	W10777924 Whirlpool Refrigerator Wine Rack
