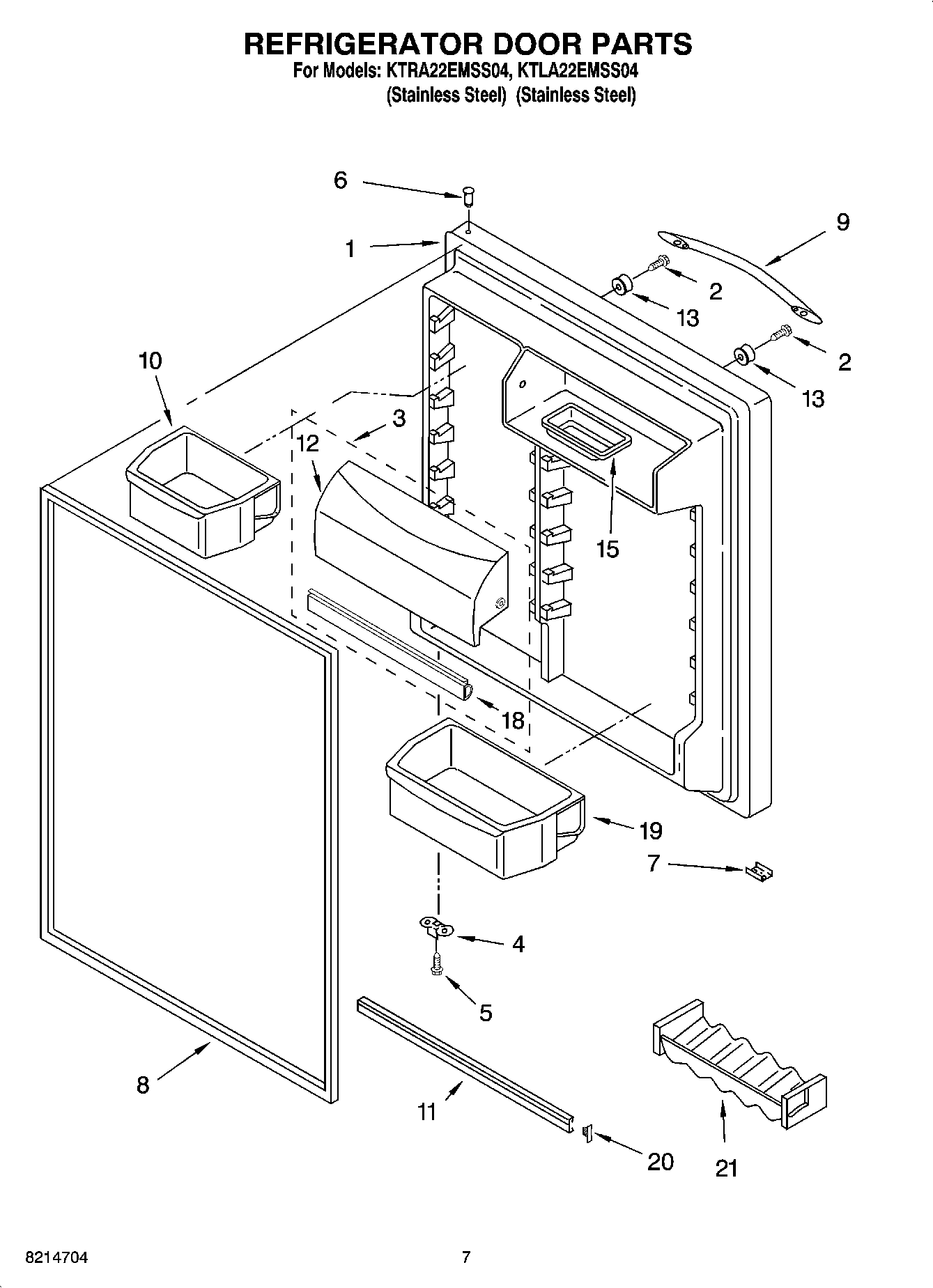

KTLA22EMSS04 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Illus. 6,7 & 8) (Stainless (For Model KTLA22EMSS03))
1	Refrigerator Door (Includes Illus. 6,7 & 8) (Stainless (For Model KTRA22EMSS03))
2	WP488163 Whirlpool Refrigerator Screw
3	Door, Compartment (Includes 9)
4	W11745278 Whirlpool Bracket
5	WP488921 Whirlpool Refrigerator Screw
6	WP2183003 Whirlpool Thimble
7	Tap Plate
8	2177311 Whirlpool Refrigerator Magnetic Door Gasket
9	Handle (Stainless)
10	Bin, Door Shelf (2)
11	WPW10421486 Whirlpool Refrigerator Door Trim
12	Door, Compartment
13	WPW10170540 Whirlpool Screw
15	Butter Tray
18	Gasket, Door Compartment
19	Bin, Door Shelf
20	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
21	Beverage Holder
