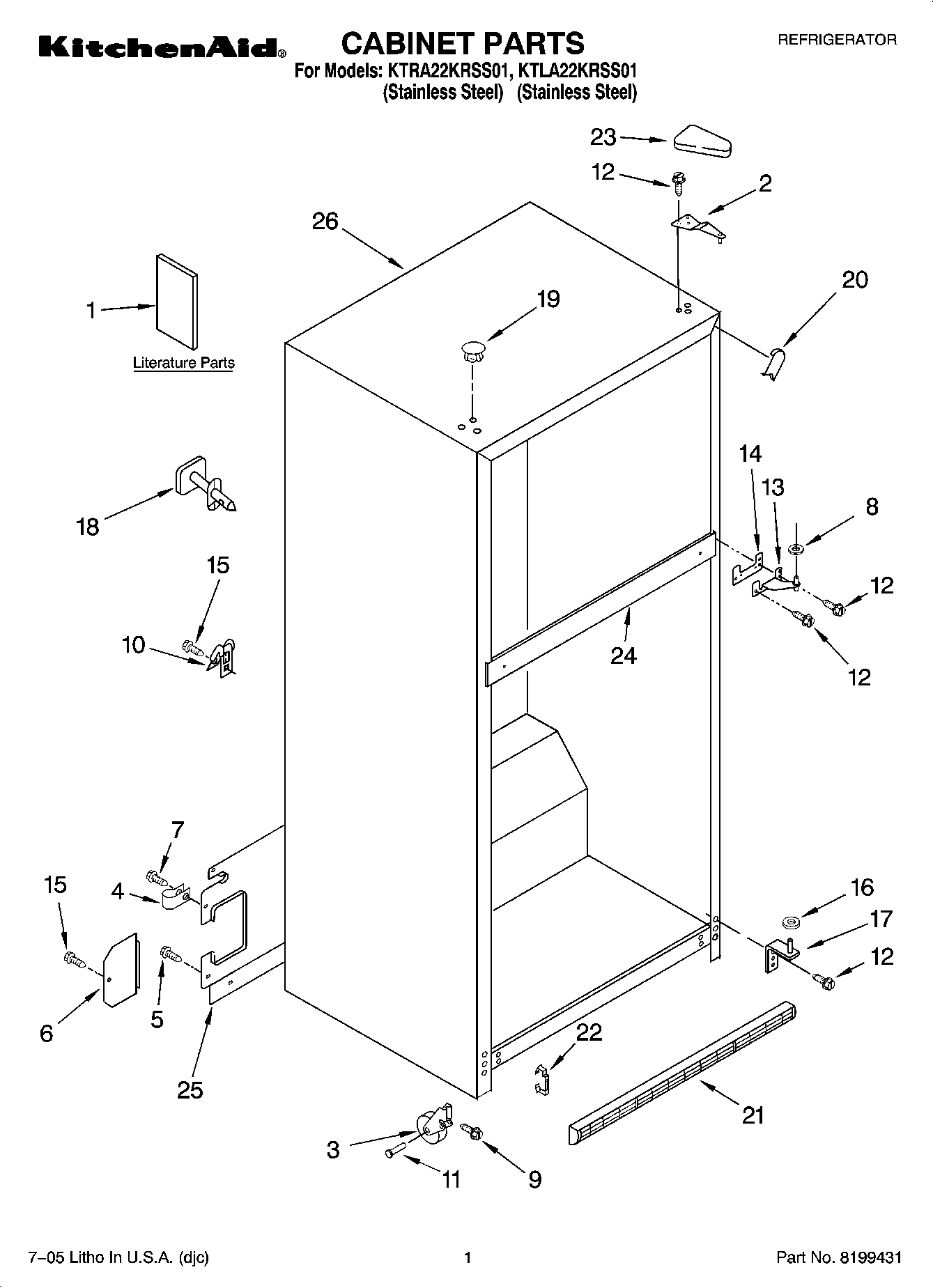

KTLA22KRSS01 01 – CABINET PARTS

Products

Position	Product
1	Energy Label
1	Use & Care Guide
1	Customer Instructions
1	Service & Wiring Sheet
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
4	WP488366 Whirlpool Refrigerator Clamp
5	WP489427 Whirlpool Refrigerator Screw
6	Cover, Water Valve
8	WP489467 Whirlpool Hinge Shim
9	WP3400504 Whirlpool Refrigerator Screw
10	549193 Whirlpool Refrigerator Power Clamp
11	W11594405 Whirlpool Axle
12	WP489497 Whirlpool Screw
13	WP2254618 Whirlpool Center Door Hinge
14	WP2183854 Whirlpool Refrigerator Shim
15	WP489464 Whirlpool Refrigerator Screw
16	WP487576 Whirlpool Washer
17	WP2254473 Whirlpool Refrigerator Door Hinge
18	Fitting, Water Tube (Not Serviced)
19	WP2183998 Whirlpool Refrigerator Button Plug
20	W11252732 Whirlpool Refrigerator Filler
21	GRILLE (INCLUDES ILLUS. 19) (BLACK)
22	CLIP, GRILLE
23	WP2213363 Whirlpool Refrigerator Cover
24	Rail Center (Not Serviced)
25	Cover, Unit
26	Cabinet (Not A Serviceable Part)
