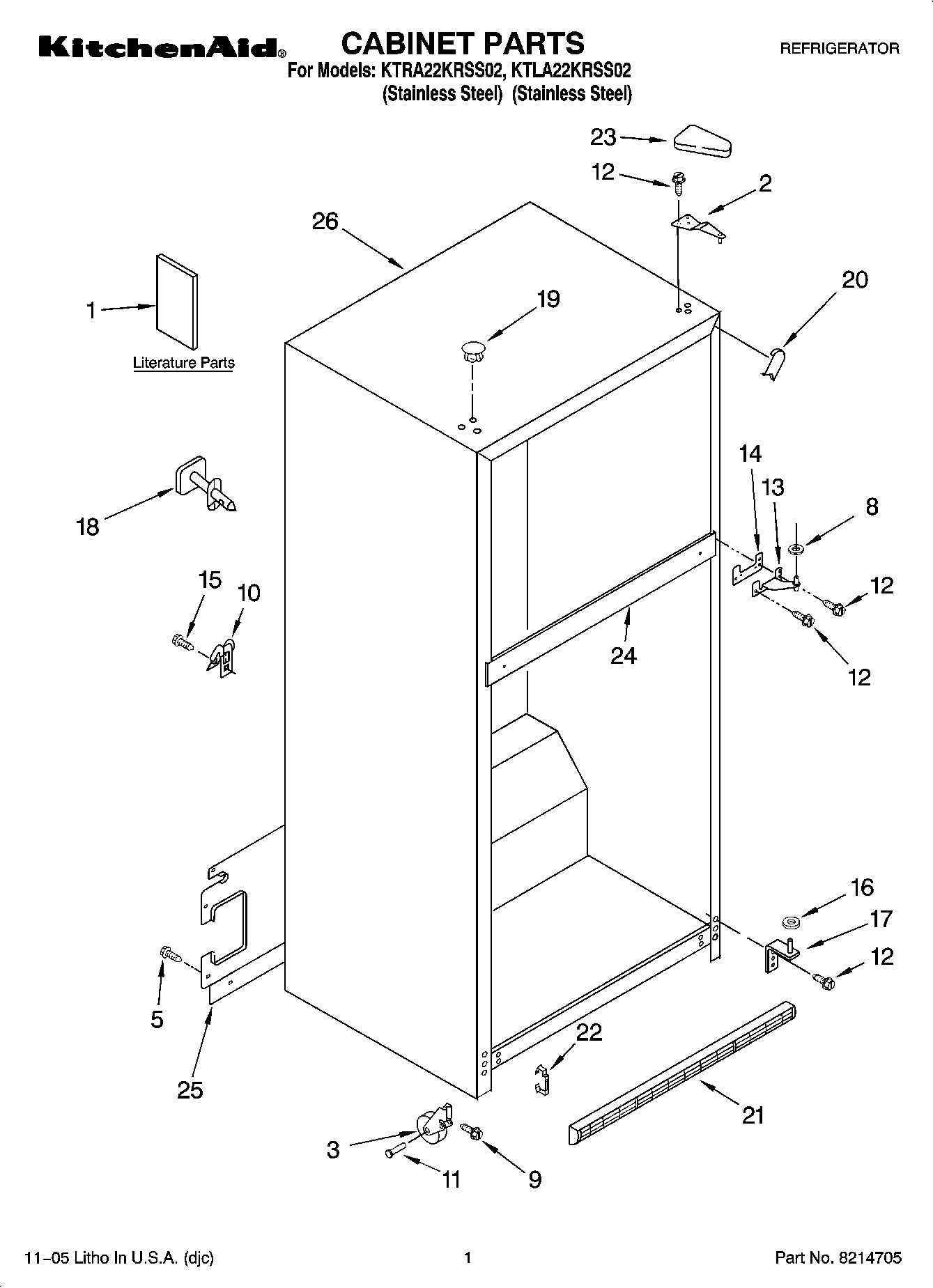

KTLA22KRSS02 01 – CABINET PARTS

KTLA22KRSS02 01 – CABINET PARTS

Written by

in

KTLA22KRSS02 01 – CABINET PARTS

Products

PositionProduct
1Use & Care Guide
1Energy Label
1Customer Instructions
1Service & Wiring Sheet
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
5WP489427 Whirlpool Refrigerator Screw
8WP489467 Whirlpool Hinge Shim
9WP3400504 Whirlpool Refrigerator Screw
10549193 Whirlpool Refrigerator Power Clamp
11W11594405 Whirlpool Axle
12WP489497 Whirlpool Screw
13WP2254618 Whirlpool Center Door Hinge
14WP2183854 Whirlpool Refrigerator Shim
15WP489464 Whirlpool Refrigerator Screw
16WP487576 Whirlpool Washer
17WP2254473 Whirlpool Refrigerator Door Hinge
18Fitting, Water Tube (Not Serviced)
19WP2183998 Whirlpool Refrigerator Button Plug
20W11252732 Whirlpool Refrigerator Filler
21GRILLE (INCLUDES ILLUS. 19) (BLACK)
22CLIP, GRILLE
23WP2213363 Whirlpool Refrigerator Cover
24Rail Center (Not Serviced)
25Cover, Unit
26Cabinet (Not A Serviceable Part)
