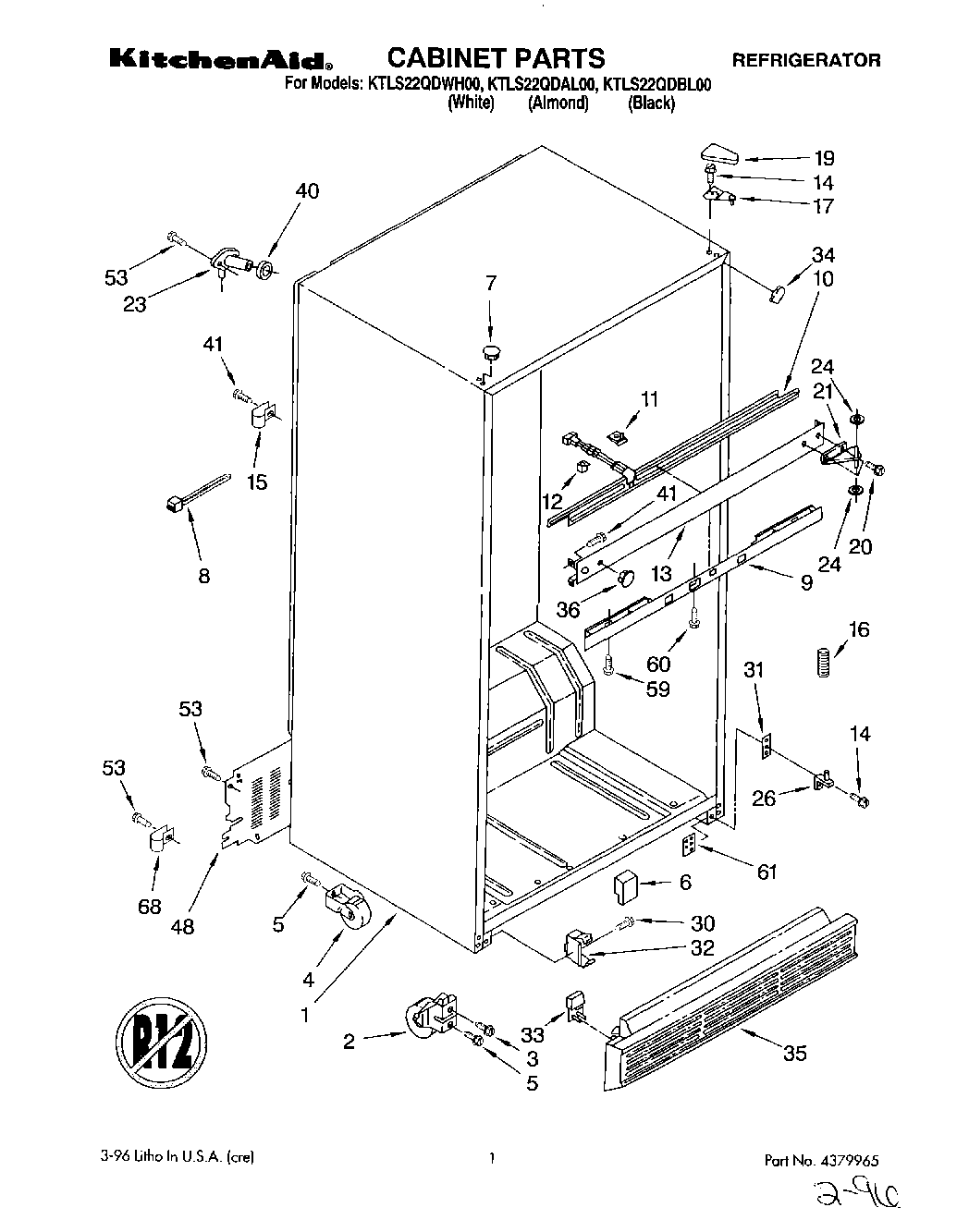

KTLS22QDAL00 01 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	Insert, Air Baffle
7	WP2183998 Whirlpool Refrigerator Button Plug
7	Hole Plug (6) (Almond)
7	WP2151652 Whirlpool Refrigerator Button Plug
8	WPW10339879 Whirlpool Wire Tie
9	Control, Front Cover
10	Heater, Mullion
11	Clip, Center Rail (4)
12	Spacer (3)
13	Center Rail
15	WP488366 Whirlpool Refrigerator Clamp
16	Spring-Tube
17	WP2189412 Whirlpool Refrigerator Door Hinge
18	Shim, Hinge Top
19	WP2213360 Whirlpool Refrigerator Cover
19	WP2213363 Whirlpool Refrigerator Cover
19	Cover, Hinge (Almond)
20	WP999367 Whirlpool Refrigerator Screw
21	Hinge, Center
23	WP2196157 Whirlpool Fill Tube
24	WP487802 Whirlpool Refrigerator Washer
26	Hinge Butt, Bottom
31	Shim, Bottom Hinge
32	WP2155013 Whirlpool Refrigerator Clip
33	Corner Filler, Grille (Almond)
33	Corner Filler, Grille (White)
33	Corner Filler, Grille
34	Filler, Wrapper Corner (2) (Almond)
34	Filler, Wrapper Corner (2) (White)
34	Filler, Wrap Corner (Black)
35	Grille (Almond)
35	Grille (White)
35	Grille (Black)
36	Hole Plug (4) (White)
40	WP1106508 Whirlpool Refrigerator Gasket
41	WP489478 Whirlpool Refrigerator Screw
48	Cover, Unit
59	WP488163 Whirlpool Refrigerator Screw
60	WP489174 Whirlpool Refrigerator Screw
61	Tap-Plate, Bottom Hinge
68	549193 Whirlpool Refrigerator Power Clamp
