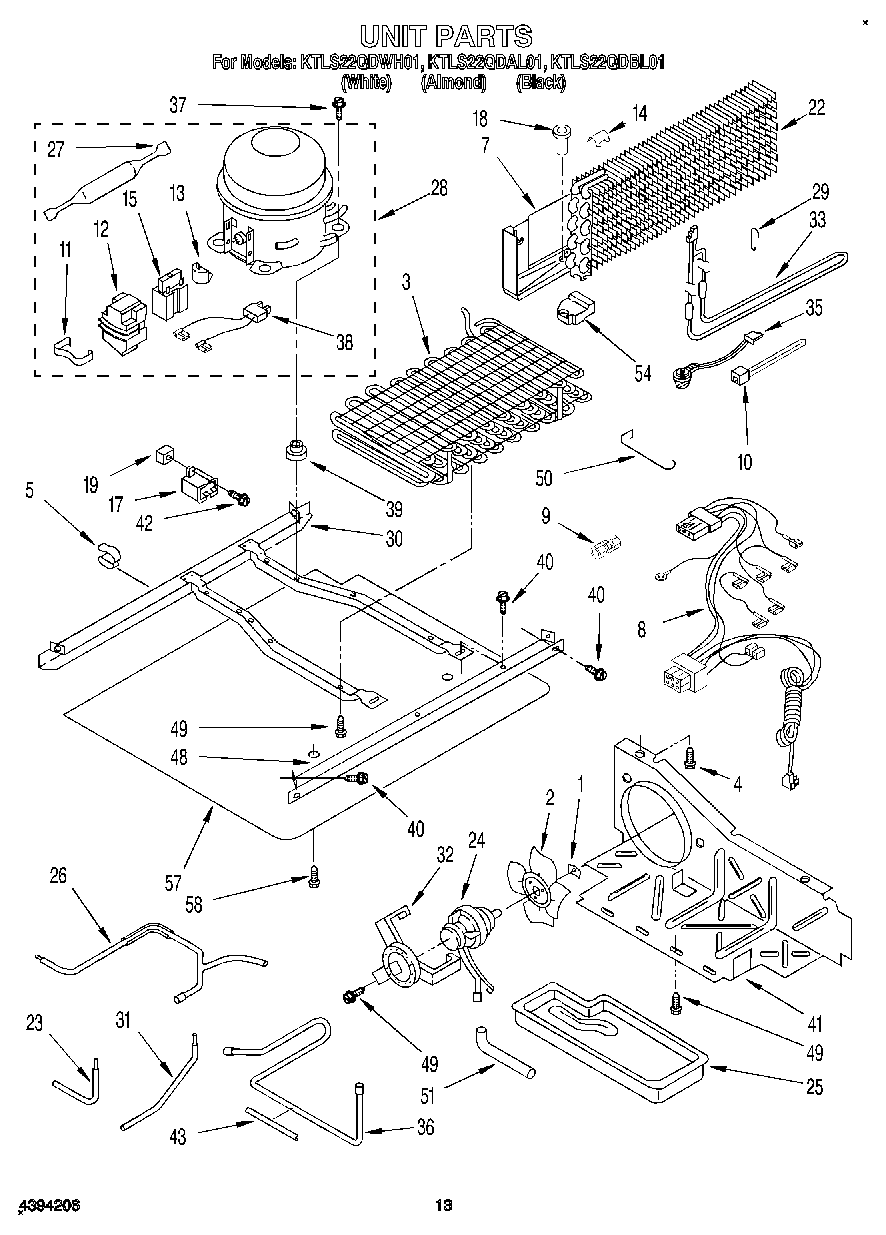

KTLS22QDAL01 08 – UNIT

KTLS22QDAL01 08 – UNIT

Written by

in

KTLS22QDAL01 08 – UNIT

Products

PositionProduct
1WP486692 Whirlpool Refrigerator Nut
2Fan, Blade
3Condenser Assembly
5Clip, Wire
7Drain Pan/ Heat Shield
8Wire Assembly
9WP4211117 Whirlpool Refrigerator Connector
10WPW10339879 Whirlpool Wire Tie
11Strap
12WP2162358 Whirlpool Refrigerator Terminal Cover
13OVERLOAD
149791833 Whirlpool Refrigerator Clip
15Relay (See Overload)
17Running Capacitor (Service)
18Drain Fitting
19Screw Grommet
22Evaporator
232154109 Whirlpool Refrigerator Tube
24833697 Whirlpool Condenser Fan Motor
25Tray, Evaporator
26Tube, Discharge
27W10843121 Whirlpool Refrigerator Tube
28876765 Whirlpool Primary Mounting Kit Refrigerator
28W10309990 Whirlpool Refrigerator Compressor
29Support, Heater
302304903 Whirlpool Refrigerator Frame
31Tube, Condenser To Heat Loop
32Bracket, Motor
33Heater, Defrost
35WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
36Tube, Suction
38WP2172890 Whirlpool Refrigerator Wire
39876811 Whirlpool Grommet
40WP489427 Whirlpool Refrigerator Screw
41Air Baffle
42W11693756 Whirlpool Screw Assembly
43SLEEVE
48Unit Mounting Rail
49WP489464 Whirlpool Refrigerator Screw
501105612 Whirlpool Fan Guard
51Drain Extension
54Support-Evaporator (L.S.)
54Support-Evaporator (R.S.)
57Cover-Unit Btm.
58VALVE, ACCESS (5/8“)
58489396 Whirlpool Refrigerator Clip
58876764 Whirlpool Refrigerator Primary Valve
58VALVE, ACCESS (1/2“)
58978026 Whirlpool Refrigerator Primary Valve
58WP978025 Whirlpool Refrigerator Valve
58978027 Whirlpool Refrigerator Primary Valve
58978030 Whirlpool Refrigerator Valve
