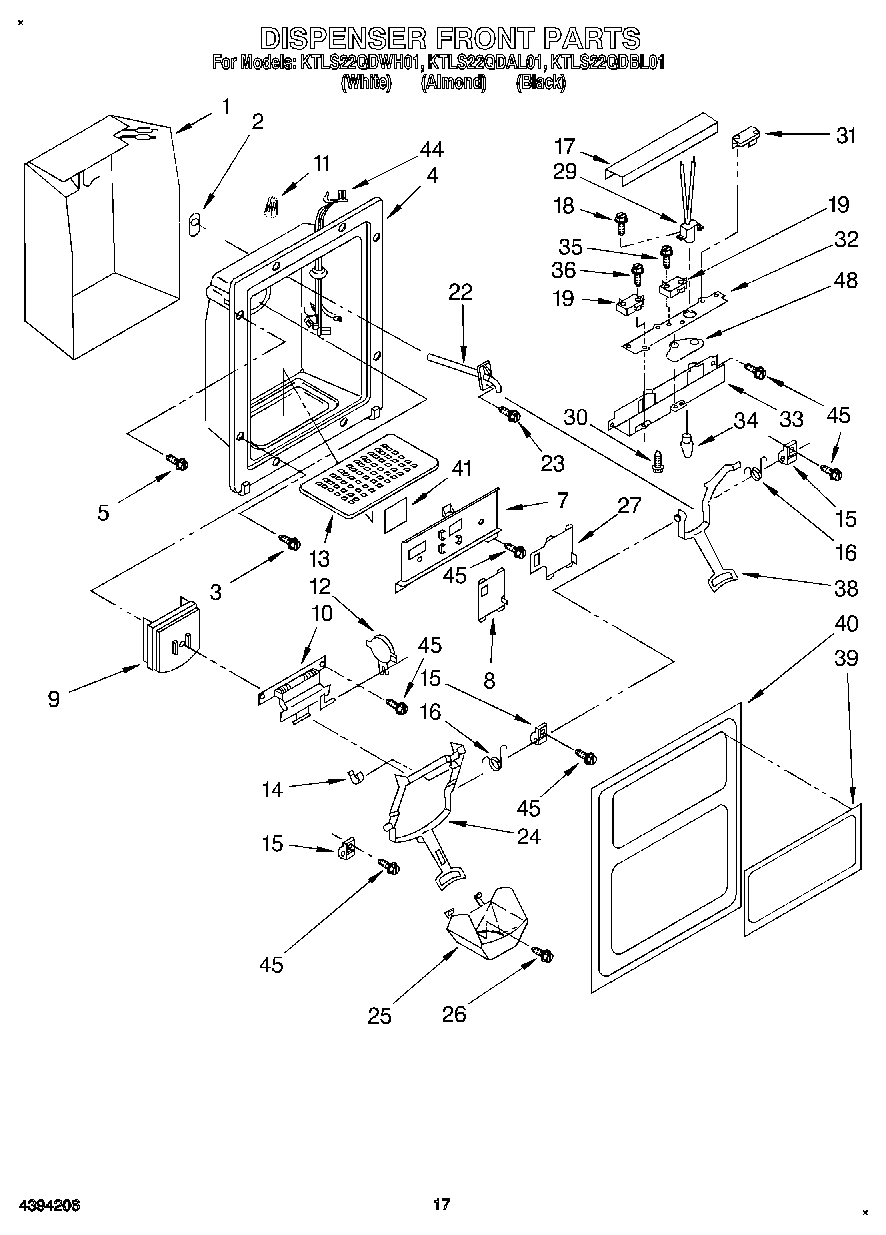

KTLS22QDAL01 10 – DISPENSER FRONT, LIT/OPTIONAL

KTLS22QDAL01 10 – DISPENSER FRONT, LIT/OPTIONAL

Written by

in

KTLS22QDAL01 10 – DISPENSER FRONT, LIT/OPTIONAL

Products

PositionProduct
WPL LIT2173946
WPL LIT2176905
Modular Icemaker Service Sheet
Torx Key
WPL LIT2180034
1Heater, Dispenser
2Grommet
3WP489442 Whirlpool Refrigerator Screw
4Housing, Dispenser
4Housing Dispenser (For Almond Model)
4Housing, Dispenser
5W11693756 Whirlpool Screw Assembly
7Frame, Slides
7Frame, Slides
7Frame, Slides (Almond)
8Slide, Cube/Crush Switch (Almond)
8Slide, Cube/Crush Switch
8Slide, Cube/Crush Switch
9Door, Ice
10Door Mechanism Assembly (Includes Item 9)
11Wire Connector
12WP1120581 Whirlpool Refrigerator Mechanism
13Grille, Overflow (Almond)
13Grille, Overflow (White)
13Grille, Overflow
14Clip, Bearing (2)
15Bearing, Lever (3)
16Spring, Lever (2)
17Shield, Wiring
18WP489128 Whirlpool Refrigerator Screw
22WP4388152 Whirlpool Refrigerator Fitting
24Lever, Ice Dispenser (Almond)
24Lever, Ice Dispenser
24Lever, Ice Dispenser (White)
25Guide, Ice
25Guide, Ice (Almond)
25Guide, Ice
26Screw
26Screw
27Slide, Light Switch
27Slide, Light Switch
27Slide, Light Switch (Almond)
29Lamp Holder
31WP2162361 Whirlpool Switch
32Insulator, Control Bracket
33Bracket, Control
34WP22002263 Whirlpool Dryer 10W Light Bulb
35Screw, 4-40 x 1
36Screw,
38WPL 2177152
38Lever, Water Dispenser
38Lever Assembly, Water Dispenser (Black)
39WPL 2174337
39WPL 2174336
39WPL 2174338
40WPL 2179386
40WPL 2179385
40WPL 2179384
41Heat Shield, Frame
44Wiring Harness, Door
45WP3400906 Whirlpool Refrigerator Screw
48350930 Whirlpool White Spray Paint
48Spacer, Switch (2)
48350956 Whirlpool Spray Assembly
48606755 Whirlpool Refrigerator Bag
4872017 Whirlpool Appliance Touch-Up Paint White
48Door Reversal Instructions
48799344 Whirlpool Refrigerator Paint
48WP72107 Whirlpool Touchup
48WPL 876029
48285006 Whirlpool Spray
48WPL 799833
48CEMENT, ALUMILASTIC (1 1/4 OZ.)
48TAPE, VINYL (3/4 X 108“)
48WP542638 Whirlpool Refrigerator Grease
48WP505587 Whirlpool Refrigerator Sealer
48WP503695 Whirlpool Refrigerator Sealer
48876370 Whirlpool Refrigerator Insulation
48833938 Whirlpool Refrigerator Terminal
4872032 Whirlpool Touch Up Paint Black
48350942 Whirlpool Spray Paint
48212643 Whirlpool Refrigerator Permagum Sealer
48Almond (Uncut)
48511873 Whirlpool Refrigerator Paint
