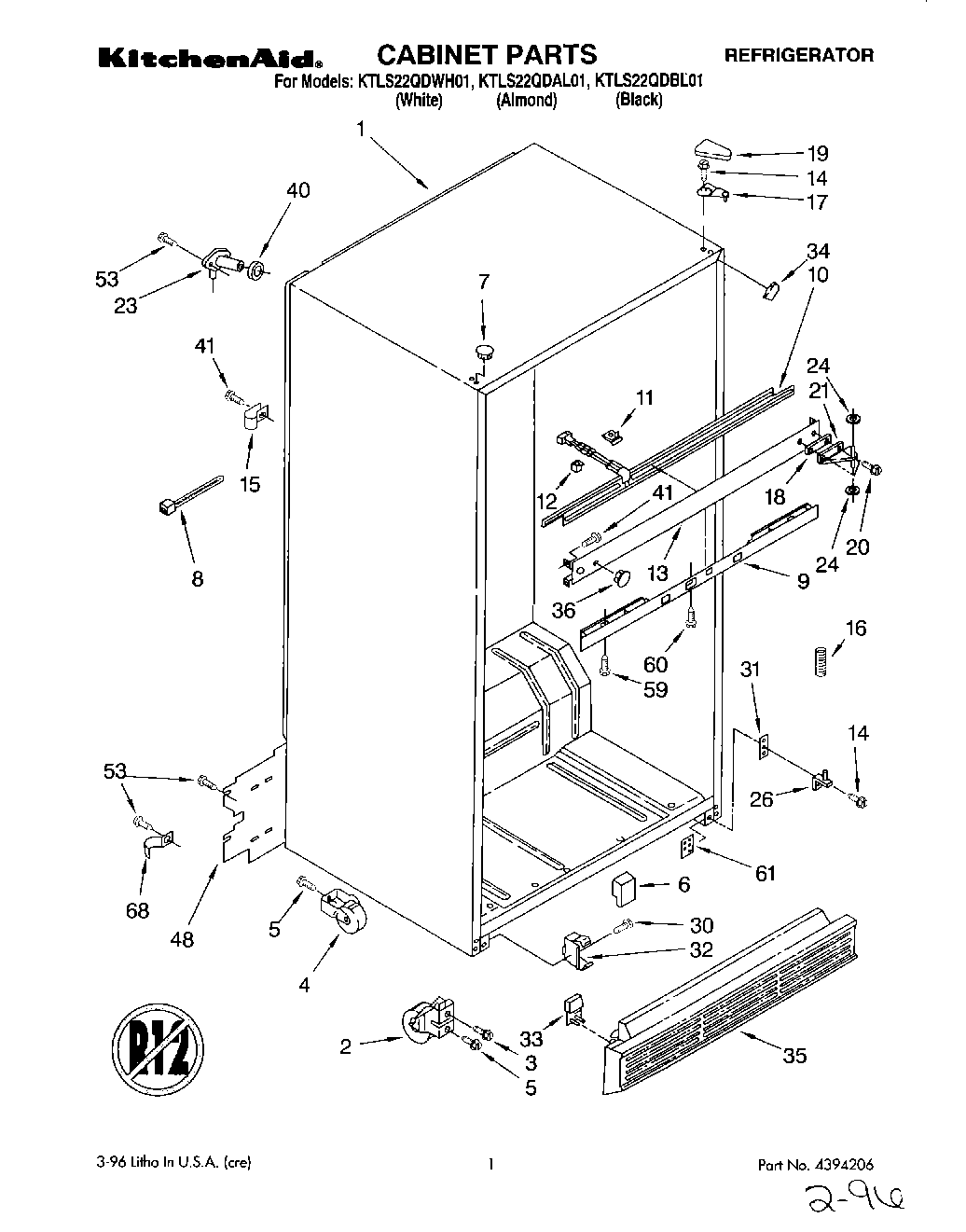

KTLS22QDBL01 01 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2Front Roller (2)
3W10850698 Whirlpool Refrigerator Screw
4WPW10250570 Whirlpool Refrigerator Cabinet Roller
5WP489427 Whirlpool Refrigerator Screw
6Insert, Air Baffle
7Hole Plug (6) (Almond)
7WP2151652 Whirlpool Refrigerator Button Plug
7WP2183998 Whirlpool Refrigerator Button Plug
8WPW10339879 Whirlpool Wire Tie
9Control, Front Cover
10Heater, Mullion
11Clip, Center Rail (4)
12Spacer (3)
13Center Rail
15WP488366 Whirlpool Refrigerator Clamp
16Spring-Tube
17WP2189412 Whirlpool Refrigerator Door Hinge
18Shim, Hinge Top
19Cover, Hinge (Almond)
19WP2213363 Whirlpool Refrigerator Cover
19WP2213360 Whirlpool Refrigerator Cover
20WP999367 Whirlpool Refrigerator Screw
21Hinge, Center
23WP2196157 Whirlpool Fill Tube
24WP487802 Whirlpool Refrigerator Washer
26Hinge Butt, Bottom
31Spacer
32WP2155013 Whirlpool Refrigerator Clip
33Corner Filler, Grille
33Corner Filler, Grille (Almond)
33Corner Filler, Grille (White)
34Filler, Wrapper Corner (2) (White)
34Filler, Wrap Corner (Black)
34Filler, Wrapper Corner (2) (Almond)
35Grille (Almond)
35Grille (Black)
35Grille (White)
36Hole Plug (4) (White)
40WP1106508 Whirlpool Refrigerator Gasket
41WP489478 Whirlpool Refrigerator Screw
48Cover, Unit
59WP488163 Whirlpool Refrigerator Screw
60WP489174 Whirlpool Refrigerator Screw
61Tap-Plate, Bottom Hinge
68549193 Whirlpool Refrigerator Power Clamp
