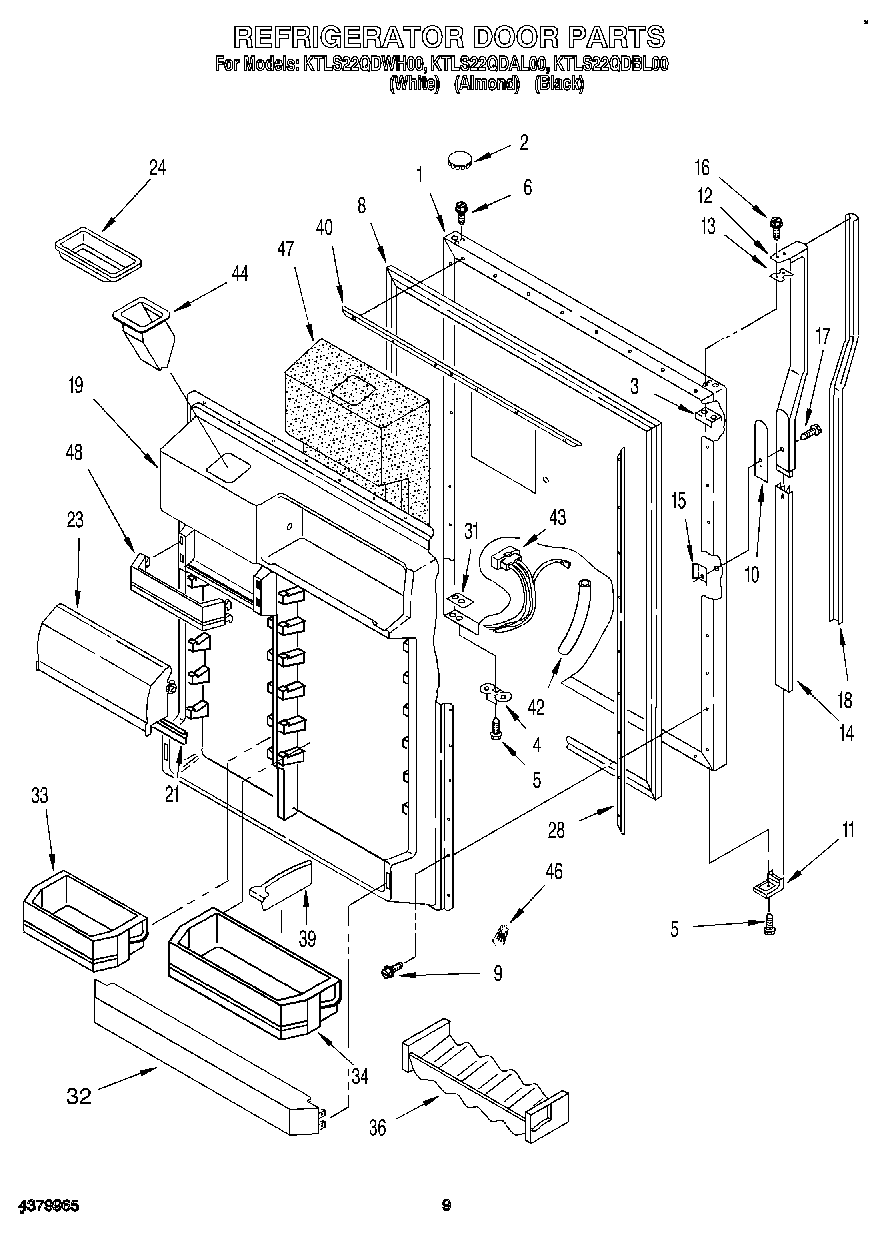

KTLS22QDWH00 05 – REFRIGERATOR DOOR

Products

Position	Product
1	Panel, Refrigerator Door (Includes Insulation) (Black)
1	Panel, Refrigerator Door (Includes Insulation) (Almond)
1	Panel, Refrigerator Door (Includes Insulation) (White)
2	WP2189009 Whirlpool Refrigerator Handle Plug
2	Hole Plug, Handle (Almond)
2	WP2189000 Whirlpool Refrigerator Handle Plug
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
8	2188450A Whirlpool Refrigerator Door Gasket
9	WP489069 Whirlpool Compactor Screw
10	Spacer, Handle
11	Handle End
12	Handle
13	Shim, Bottom
14	Retainer, Insert
15	WP939101 Whirlpool Refrigerator Plate
16	WP488920 Whirlpool Refrigerator Screw
17	WP488729 Whirlpool Refrigerator Door Screw
18	Insert, Handle (Black)
18	Insert, Handle (Almond)
18	Insert, Handle (White)
19	Interior Door Panel
21	Gasket, Door Compartment
23	Compartment Door
24	Butter, Tray
28	Gasket, Retainer
31	Tap, Plate
32	Trivet, Door
33	Bin, Door Shelf Narrow (3)
34	Bin, Door Shelf
36	WPL 1125981
39	Divider, Door Bin (2)
40	Gasket Retainer, Top & Bottom
42	Tube, Door Wiring
43	Plug, Crossover
44	Ice Chute
46	Connector-Wire
47	Insulation, Dispenser
48	Trivet, Door
