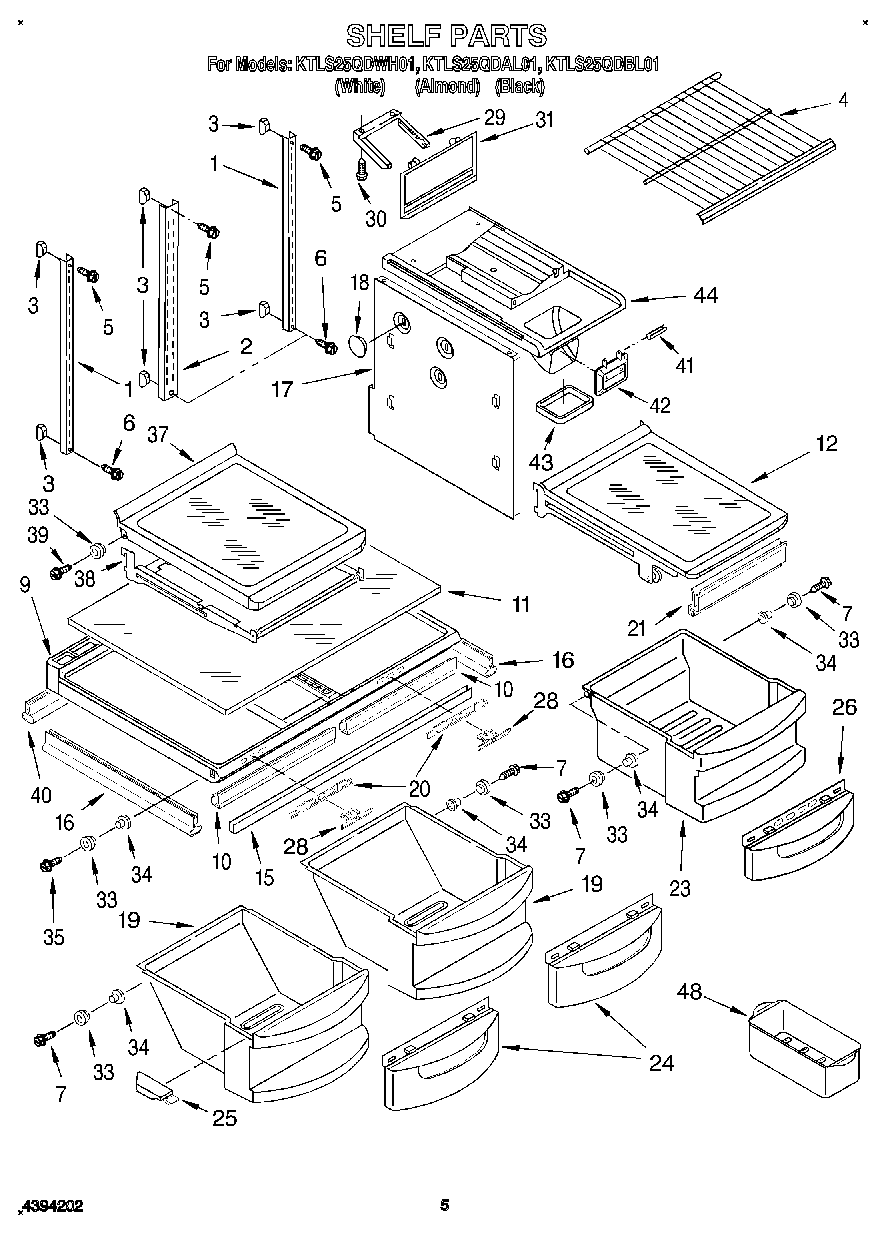

| 1 | Shelf, Ladder (2) |
| 2 | Shelf Ladder, Center |
| 3 | 520965 Whirlpool Refrigerator Support |
| 4 | Shelf, Freezer (2) |
| 5 | Screw (3) |
| 6 | WP489474 Whirlpool Refrigerator Screw |
| 7 | WP489261 Whirlpool Refrigerator Screw |
| 9 | Pan Cover & Roller Assembly |
| 10 | WP1125528 Whirlpool Refrigerator Gasket |
| 11 | WPL 2174145 |
| 12 | Shelf, Meat Pan |
| 15 | WPL 2179449 |
| 16 | Gasket, Pan Cover (Side) |
| 17 | Support Wall I/M |
| 18 | Anchor-Screw I/M |
| 19 | Pan, Crisper (Includes Rollers) |
| 20 | Slide, Humidity |
| 21 | Gasket-Front |
| 23 | Meat Pan |
| 24 | Window, Crisper Pan |
| 25 | Cap, Crisper (Right Side) |
| 25 | Cap, Crisper (Left Side) |
| 26 | Window, Meat Pan |
| 28 | Button, Humidity Control |
| 29 | Slide, Ice Door |
| 30 | WP489478 Whirlpool Refrigerator Screw |
| 31 | Door, Ice Compartment |
| 33 | Roller |
| 34 | Eyelet, Roller |
| 35 | WPW10272364 Whirlpool Refrigerator Screw |
| 37 | WPL 2174018 |
| 38 | WPL 2174020 |
| 39 | Screw |
| 40 | Gasket, Pan Cover-Rear |
| 41 | Roll Pin |
| 42 | Door-Platform |
| 43 | Gasket-Platform |
| 44 | Platform-Ice Container |
| 48 | W10136387A Whirlpool Refrigerator Egg Container |
