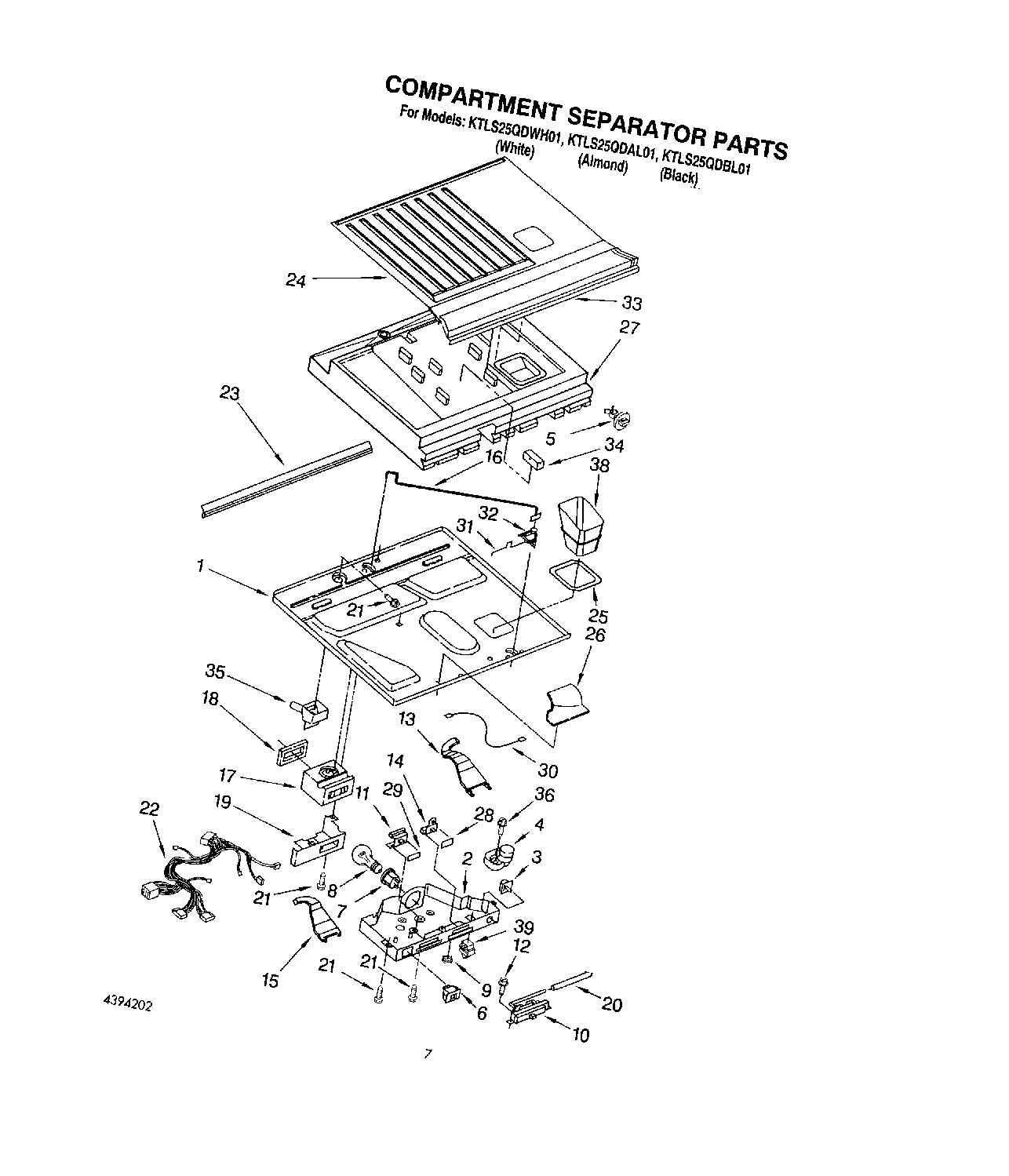

KTLS25QDBL01 04 – COMPARTMENT SEPARATOR

Products

Position	Product
1	Bottom, Compartment Separator
2	Box, Control
3	WP2149705 Whirlpool Refrigerator Door Switch
4	WP2183400 Whirlpool Defrost Timer
5	Clip, Thermostat Tube Retention
6	Switch, Toggle
7	SOCKET
8	W10887190 Whirlpool Refrigerator Light Bulb
9	940014 Whirlpool Refrigerator Primary Button Plug
10	Thermostat
11	Slide, Thermostat
12	2006254 Whirlpool Refrigerator Screw
13	Light, Bar Left
14	Slide, Air Control
15	Light, Bar Right
16	Rod, Connecting
17	Air Diffuser Assembly
18	Gasket, Air Diffuser
19	Cover, Air Diffuser
20	WP2196003 Whirlpool Refrigerator Bar Riser
21	WP489478 Whirlpool Refrigerator Screw
22	Wiring Assembly, Control Box
23	Gasket, Bottom Separator
24	Separator, Compartment (Rear)
25	Gasket, Ice Chute
26	Insulation, Filler
27	Insulation, Compartment Separator
28	Window, Air Control
29	Window, Thermostat
30	Wire Assembly
31	Short Rod
32	Pivot Arm
33	Separator, Compartment (Top) (Front)
34	Rubber Strip
35	Cup, Drain
36	WP487353 Whirlpool Refrigerator Screw
38	Ice Chute, (Seperator)
39	WP4387911 Whirlpool Refrigerator Switch
