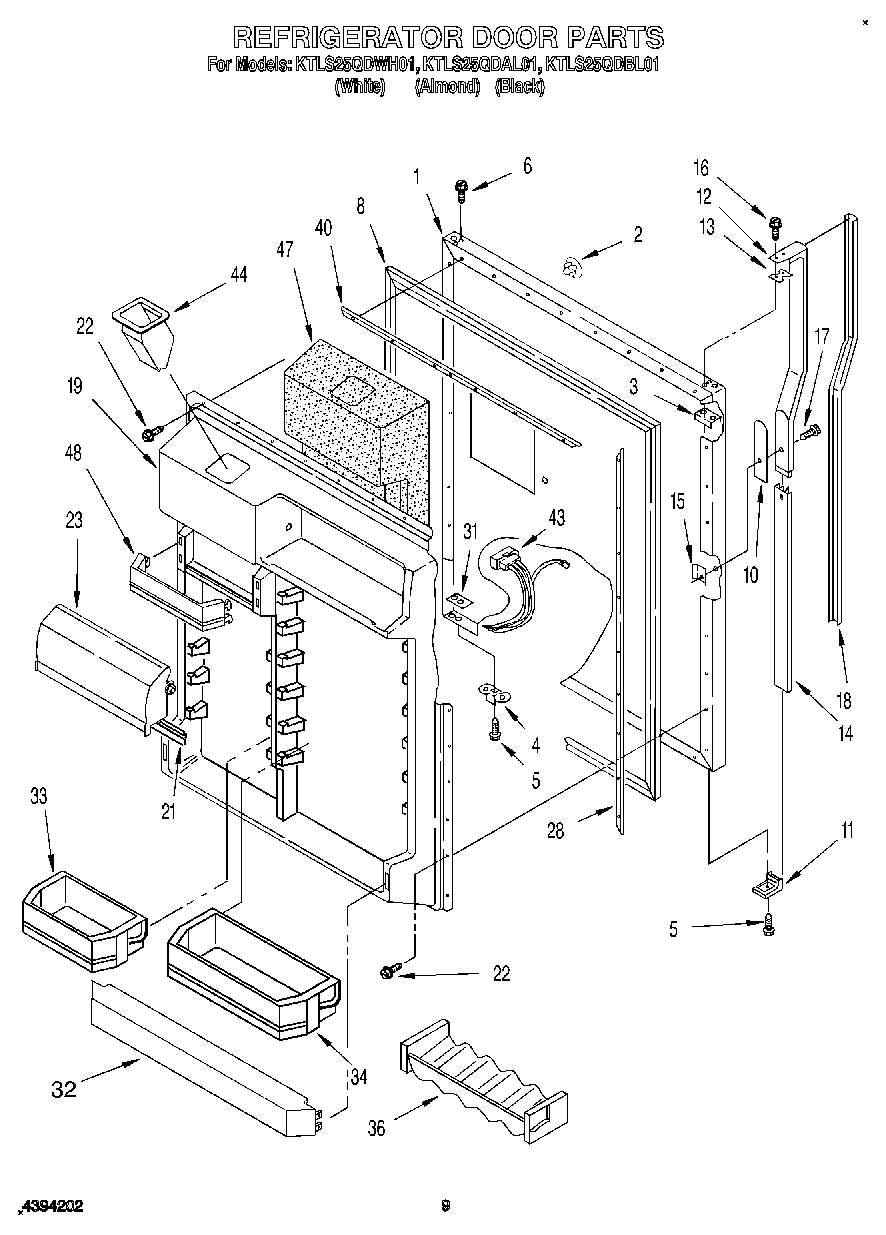

KTLS25QDBL01 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Panel, Refrigerator Door (Includes Insulation) (Black)
1	Panel, Refrigerator Door (Includes Insulation) (Almond)
1	Panel, Refrigerator Door (Includes Insulation) (White)
2	Hole Plug, Handle (Almond)
2	WP2189009 Whirlpool Refrigerator Handle Plug
2	WP2189000 Whirlpool Refrigerator Handle Plug
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
8	Door Gasket, Magnetic
10	Spacer, Handle
11	Handle End
12	Handle
13	Shim, Bottom
14	Retainer, Insert
15	WP939101 Whirlpool Refrigerator Plate
16	WP488920 Whirlpool Refrigerator Screw
17	WP488729 Whirlpool Refrigerator Door Screw
18	Insert, Handle (White)
18	Insert, Handle (Almond)
18	Insert, Handle (Black)
19	Interior Door Panel
21	Gasket, Door Compartment
22	WP489442 Whirlpool Refrigerator Screw
23	Compartment Door
28	Retainer, Gasket
31	Tap, Plate
32	Trivet, Door
33	Door Bin (Narrow)
34	Bin, Door Shelf
36	WPL 1125981
40	Retainer, Gasket
43	Plug, Crossover
44	Ice Chute
47	Insulation, Dispenser
48	Trivet, Door
