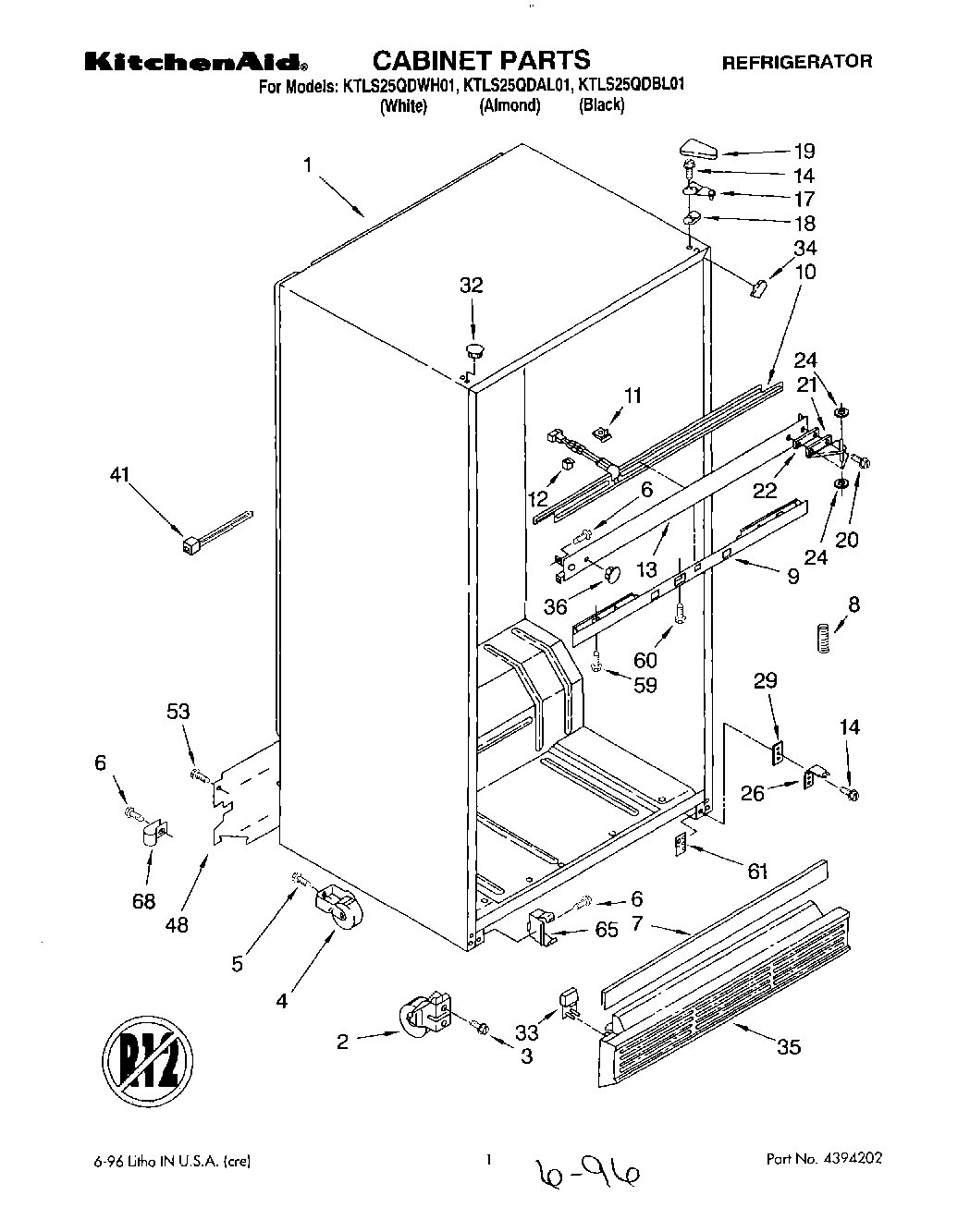

KTLS25QDWH01 01 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Front Roller (2)
3	Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP489478 Whirlpool Refrigerator Screw
7	Deck Rail Cover
8	Spring-Tube
9	Control, Front Cover
10	Heater, Mullion
11	Clip, Mullion (3)
12	Spacer (3)
13	Center Rail (White)
13	Center Rail (Black)
17	WP2189412 Whirlpool Refrigerator Door Hinge
18	Shim, Hinge Top
19	WP2213360 Whirlpool Refrigerator Cover
19	Cover, Hinge (Almond)
19	WP2213363 Whirlpool Refrigerator Cover
20	WP999367 Whirlpool Refrigerator Screw
21	Hinge, Center
22	Shim, Hinge Center
24	WP487802 Whirlpool Refrigerator Washer
26	Hinge Butt, Bottom
29	Spacer
32	WP2183998 Whirlpool Refrigerator Button Plug
32	Hole Plug (6) (Almond)
32	WP2151652 Whirlpool Refrigerator Button Plug
33	Corner Filler, Grille (Almond)
33	Corner Filler, Grille
33	Corner Filler, Grille (White)
34	Filler, Wrap Corner (Black)
34	Filler, Wrapper Corner (2) (White)
34	Filler, Wrapper Corner (2) (Almond)
35	Grille (Black)
35	Grille (Almond)
35	Grille (White)
36	Hole Plug (4) (White)
41	WPW10339879 Whirlpool Wire Tie
48	Cover, Unit
59	WP488163 Whirlpool Refrigerator Screw
60	WP489174 Whirlpool Refrigerator Screw
61	Tap-Plate, Bottom Hinge
65	WP2155013 Whirlpool Refrigerator Clip
68	549193 Whirlpool Refrigerator Power Clamp
