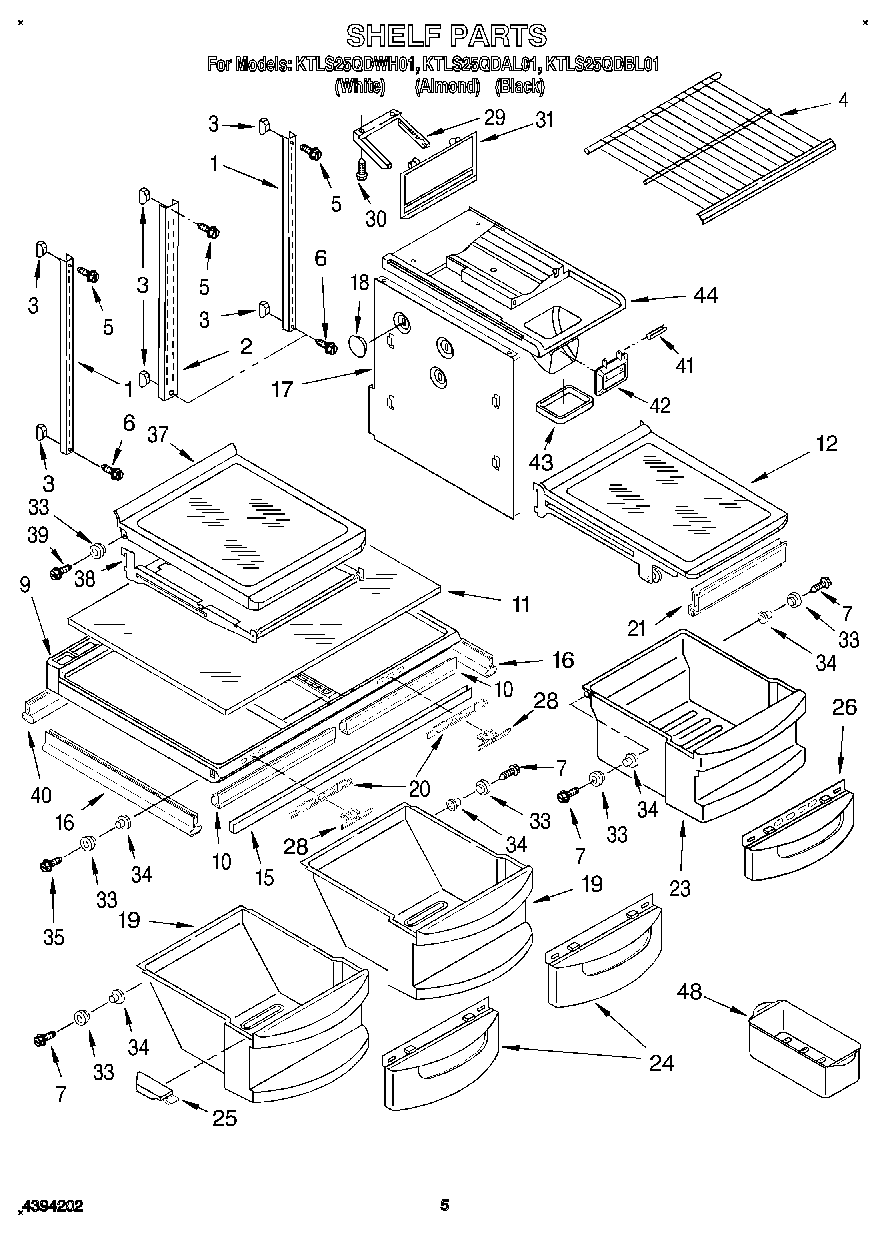

KTLS25QDWH01 03 – SHELF

Products

Position	Product
1	Shelf, Ladder (2)
2	Shelf Ladder, Center
3	520965 Whirlpool Refrigerator Support
4	Shelf, Freezer (2)
5	Screw (3)
6	WP489474 Whirlpool Refrigerator Screw
7	WP489261 Whirlpool Refrigerator Screw
9	Pan Cover & Roller Assembly
10	WP1125528 Whirlpool Refrigerator Gasket
11	WPL 2174145
12	Shelf, Meat Pan
15	WPL 2179449
16	Gasket, Pan Cover (Side)
17	Support Wall I/M
18	Anchor-Screw I/M
19	Pan, Crisper (Includes Rollers)
20	Slide, Humidity
21	Gasket-Front
23	Meat Pan
24	Window, Crisper Pan
25	Cap, Crisper (Right Side)
25	Cap, Crisper (Left Side)
26	Window, Meat Pan
28	Button, Humidity Control
29	Slide, Ice Door
30	WP489478 Whirlpool Refrigerator Screw
31	Door, Ice Compartment
33	Roller
34	Eyelet, Roller
35	WPW10272364 Whirlpool Refrigerator Screw
37	WPL 2174018
38	WPL 2174020
39	Screw
40	Gasket, Pan Cover-Rear
41	Roll Pin
42	Door-Platform
43	Gasket-Platform
44	Platform-Ice Container
48	W10136387A Whirlpool Refrigerator Egg Container
