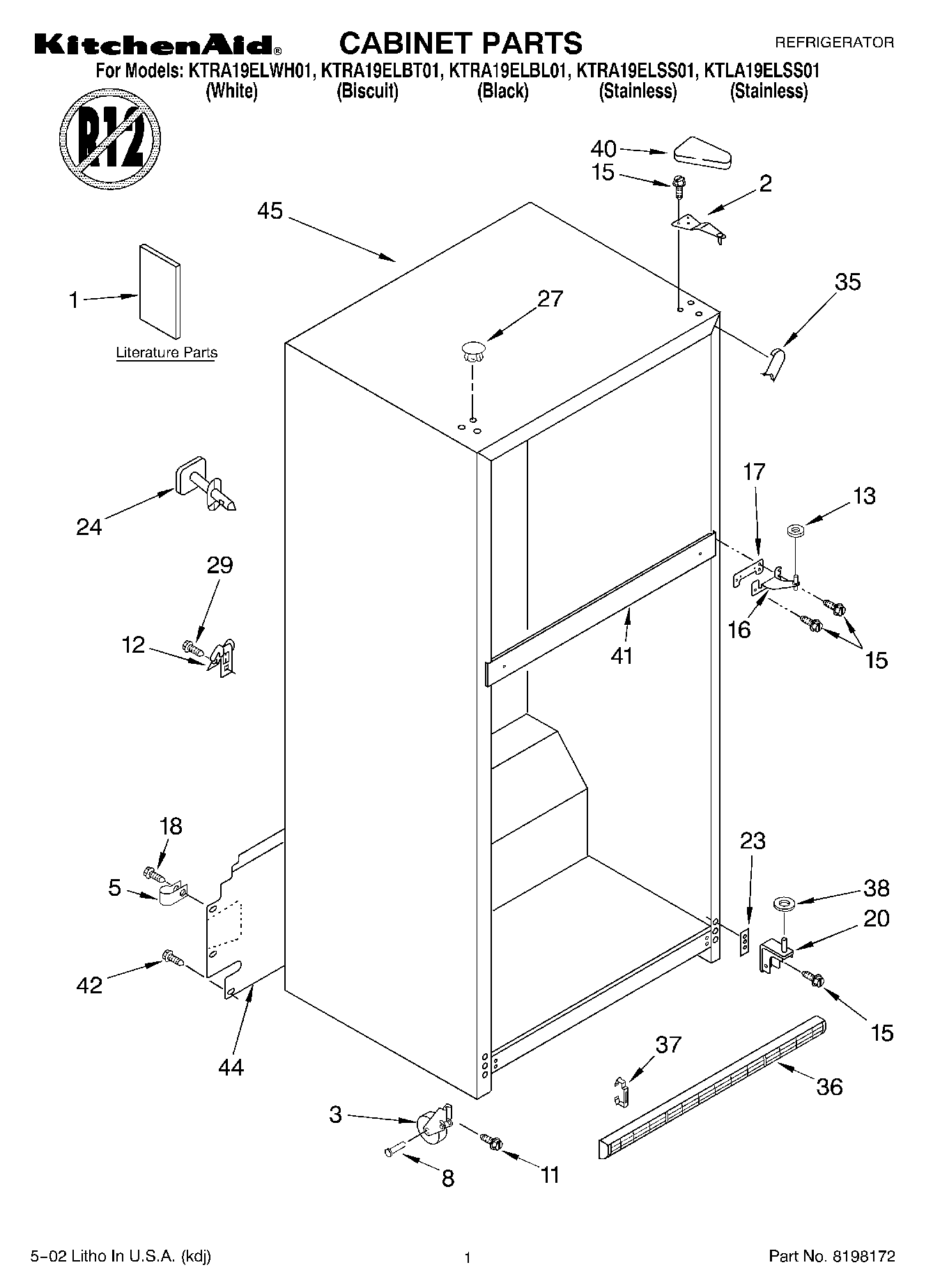

KTRA19ELBL03 01 – CABINET, LITERATURE

Products

Position	Product
1	Literature Parts (Instruction Sheet, Water Filter)
1	Modular Icemaker Service Sheet
1	Literature Parts (Customer Quick Tips)
1	Literature Parts (Service & Wiring Sheet)
1	Literature Parts (Energy Label)
1	Literature Parts (Use & Care Guide)
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
5	WP488366 Whirlpool Refrigerator Clamp
8	W11594405 Whirlpool Axle
11	WP3400504 Whirlpool Refrigerator Screw
12	549193 Whirlpool Refrigerator Power Clamp
13	WP489467 Whirlpool Hinge Shim
15	WP489497 Whirlpool Screw
16	WP2254618 Whirlpool Center Door Hinge
17	WP2183854 Whirlpool Refrigerator Shim
18	WP489464 Whirlpool Refrigerator Screw
20	WP2254473 Whirlpool Refrigerator Door Hinge
23	Shim, Bottom Hinge
24	Fitting, Water Tube (Not Serviced)
27	Hole Plug (6) (Biscuit)
27	WP2183998 Whirlpool Refrigerator Button Plug
27	WP2151652 Whirlpool Refrigerator Button Plug
29	WP489427 Whirlpool Refrigerator Screw
35	WPW10283959 Whirlpool Refrigerator Filler
35	W11252732 Whirlpool Refrigerator Filler
35	W10283958 Whirlpool Refrigerator Filler
36	WP2254386 Whirlpool Refrigerator Grille
36	Grille (Black)
37	CLIP, GRILLE
38	WP487576 Whirlpool Washer
40	2213364 Whirlpool Refrigerator Cover
40	WP2213360 Whirlpool Refrigerator Cover
40	WP2213363 Whirlpool Refrigerator Cover
41	Rail Center (Not Serviced)
42	WP489442 Whirlpool Refrigerator Screw
44	Cover, Unit
45	Cabinet (Not A Serviceable Part)
