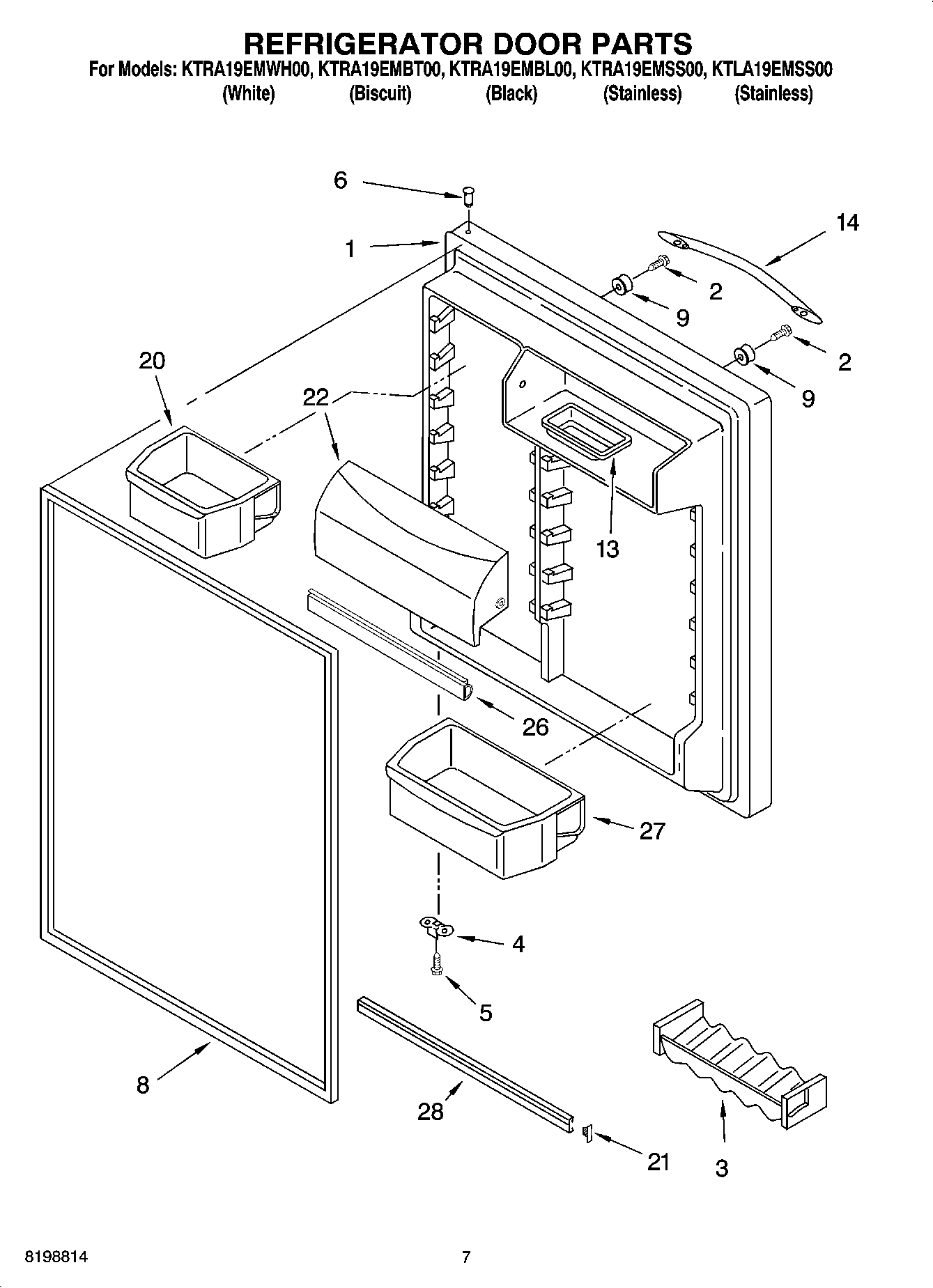

KTRA19EMWH00 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Black)
1	Refrigerator Door (Biscuit)
1	Refrigerator Door (White)
1	Refrigerator Door (Stainless, Right Hand)
1	Refrigerator Door (Stainless, Left Hand (Includes No.6 & No.8))
2	WP488163 Whirlpool Refrigerator Screw
3	Beverage Holder
4	W11745278 Whirlpool Bracket
5	WP488921 Whirlpool Refrigerator Screw
6	WP2183003 Whirlpool Thimble
8	2177305 Whirlpool Refrigerator Door FIP Gasket
8	2159057 Whirlpool Refrigerator Fresh Food Door Gasket
9	WPW10170540 Whirlpool Screw
13	Butter Tray
14	Handle (Biscuit)
14	Handle (Black)
14	Handle (White)
14	Handle (Stainless)
20	Bin, Door Shelf (3)
21	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
22	Door, Compartment
26	Gasket, Door Compartment
27	Bin, Door Shelf
28	Following Parts Not Illustrated (Optional Parts Only)
28	WPW10421484 Whirlpool Refrigerator Door Trim
28	LEFT HAND DOOR SWING (Biscuit)
28	LEFT HAND DOOR SWING (White)
28	LEFT HAND DOOR SWING (Black)
28	LEFT HAND DOOR SWING
