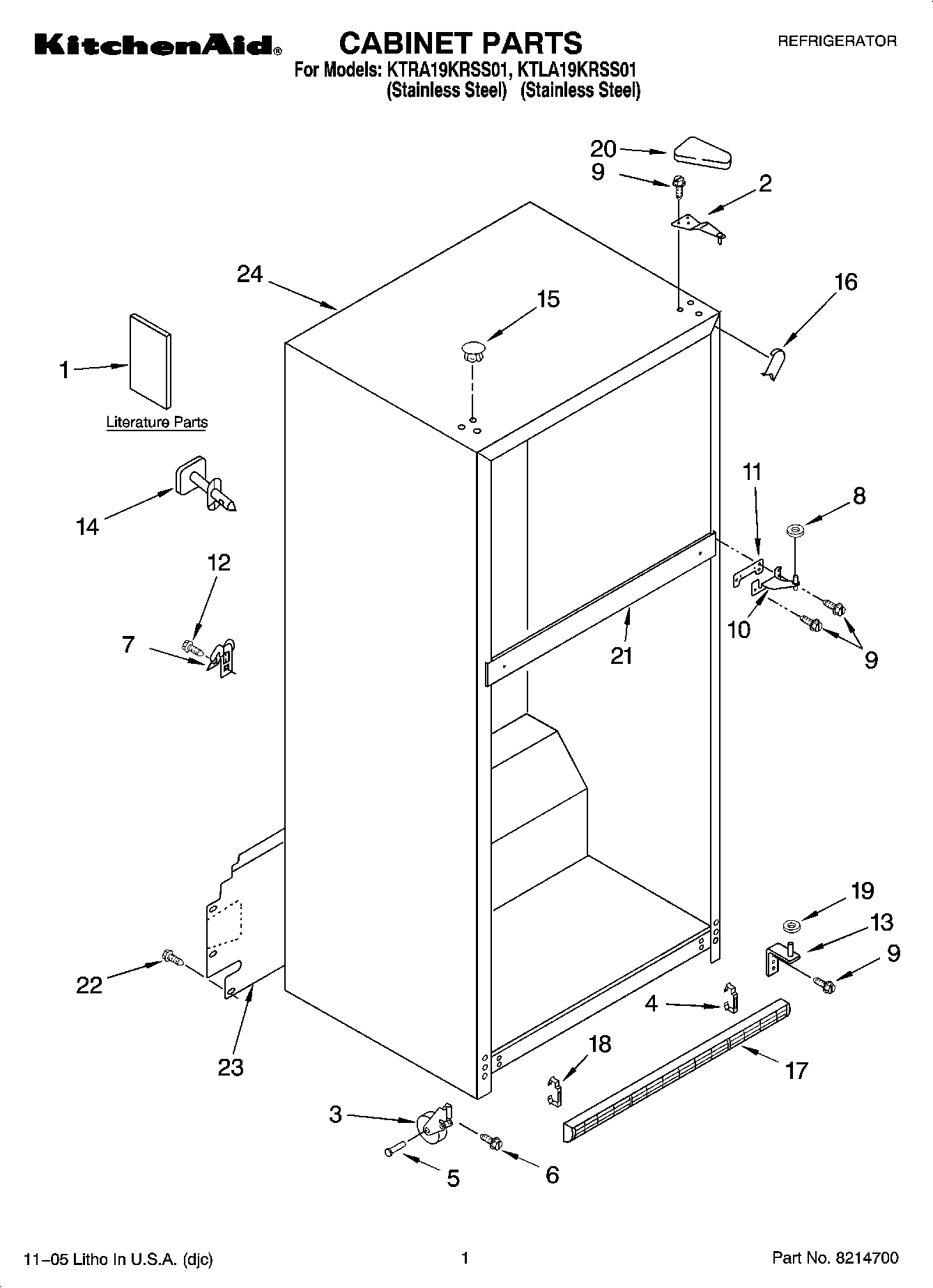

KTRA19KRSS01 01 – CABINET PARTS

Products

PositionProduct
1Energy Label
1Customer Instructions
1Use & Care Guide
1Service & Wiring Sheet
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
42254385 Whirlpool Refrigerator Clip
5W11594405 Whirlpool Axle
6WP3400504 Whirlpool Refrigerator Screw
7549193 Whirlpool Refrigerator Power Clamp
8WP489467 Whirlpool Hinge Shim
9WP489497 Whirlpool Screw
10WP2254618 Whirlpool Center Door Hinge
11WP2183854 Whirlpool Refrigerator Shim
12WP489464 Whirlpool Refrigerator Screw
13WP2254473 Whirlpool Refrigerator Door Hinge
14Fitting, Water Tube (Not Serviced)
15WP2183998 Whirlpool Refrigerator Button Plug
16W11252732 Whirlpool Refrigerator Filler
17Grille (Includes Illus. 4 & 24) (Black)
18CLIP, GRILLE
19WP487576 Whirlpool Washer
20WP2213363 Whirlpool Refrigerator Cover
21Rail Center (Not Serviced)
22WP489427 Whirlpool Refrigerator Screw
23Cover, Unit
24Cabinet (Not A Serviceable Part)
