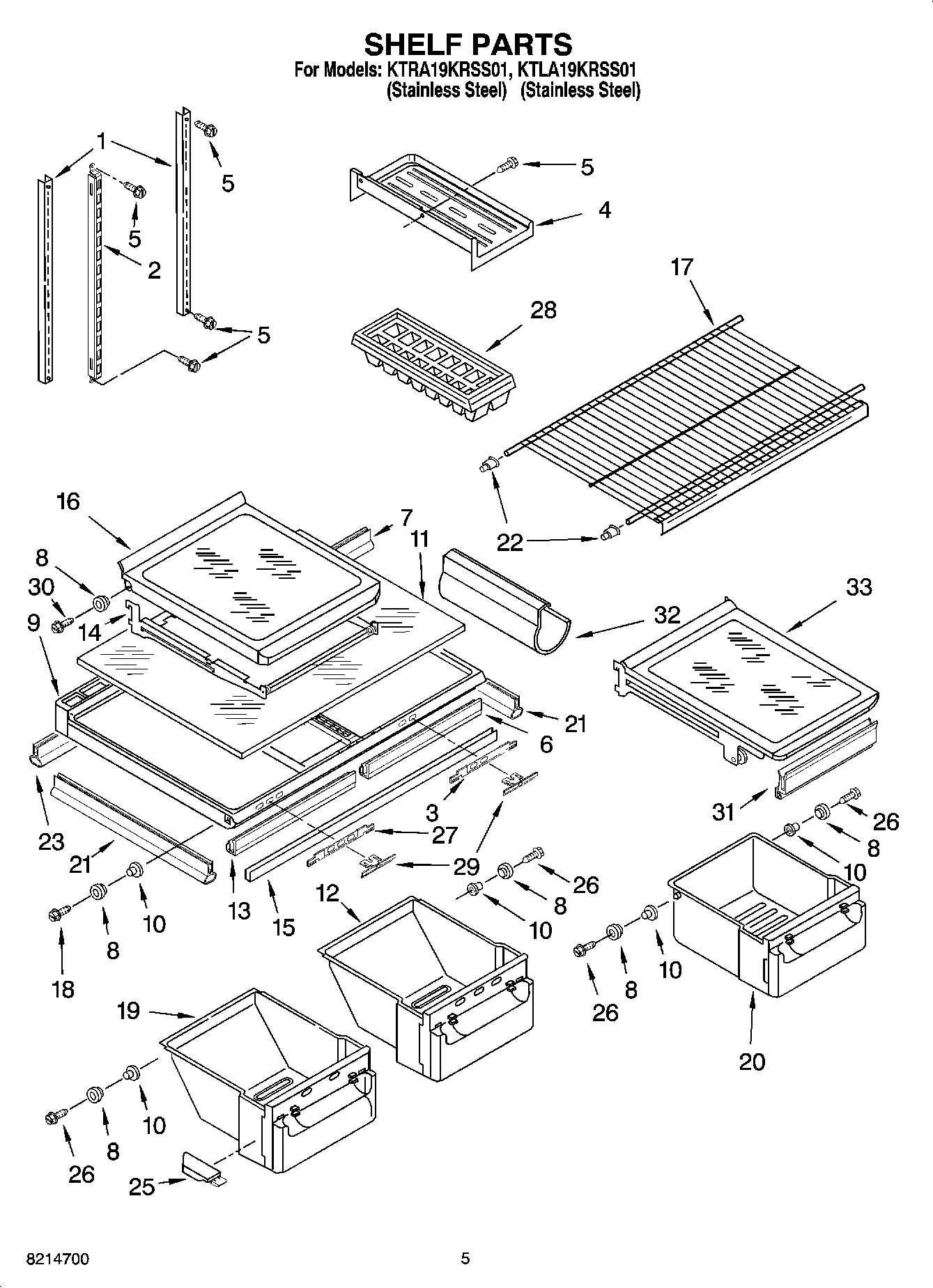

KTRA19KRSS01 03 – SHELF PARTSadmin2025-04-26T13:02:06+00:00KTRA19KRSS01 03 – SHELF PARTS
Products
| Position | Product |
|---|
| 1 | Shelf, Ladder (2) |
| 2 | Shelf, Ladder Center |
| 3 | Slide, Humidity |
| 4 | Shelf, Ice Tray |
| 5 | WP489478 Whirlpool Refrigerator Screw |
| 6 | WP1125528 Whirlpool Refrigerator Gasket |
| 7 | Gasket, Crisper Cover (Rear) |
| 8 | Roller |
| 9 | Crisper Cover (Includes Rollers) |
| 10 | Eyelet, Roller |
| 11 | Glass, Crisper Cover |
| 12 | Pan, Crisper (Includes Rollers) |
| 14 | Frame Assembly, Spillguard |
| 15 | WP2172748 Whirlpool Drawer Support |
| 16 | Shelf Assembly, Spillguard (3) (Includes Rollers) |
| 17 | WP2176275 Whirlpool Refrigerator Wire Shelf |
| 18 | WPW10272364 Whirlpool Refrigerator Screw |
| 19 | Pan, Crisper (Includes Items 8,10,27 & 29) |
| 20 | Pan, Meat (Includes Rollers) |
| 21 | Gasket, Crisper Cover (Side) (4) |
| 22 | 2163762 Whirlpool Refrigerator Cup Assembly |
| 23 | Gasket, Pan Cover-Rear |
| 25 | Cap, Crisper (Right Side) |
| 25 | Cap, Crisper (Left Side) |
| 26 | WP489261 Whirlpool Refrigerator Screw |
| 27 | Slide, Humidity |
| 28 | WP841180A Whirlpool Microwave Glass Turntable Tray |
| 29 | Button, Humidity Control |
| 30 | Screw |
| 31 | Gasket, Front |
| 32 | W10777924 Whirlpool Refrigerator Wine Rack |
| 33 | Shelf Assembly, Spillguard |
