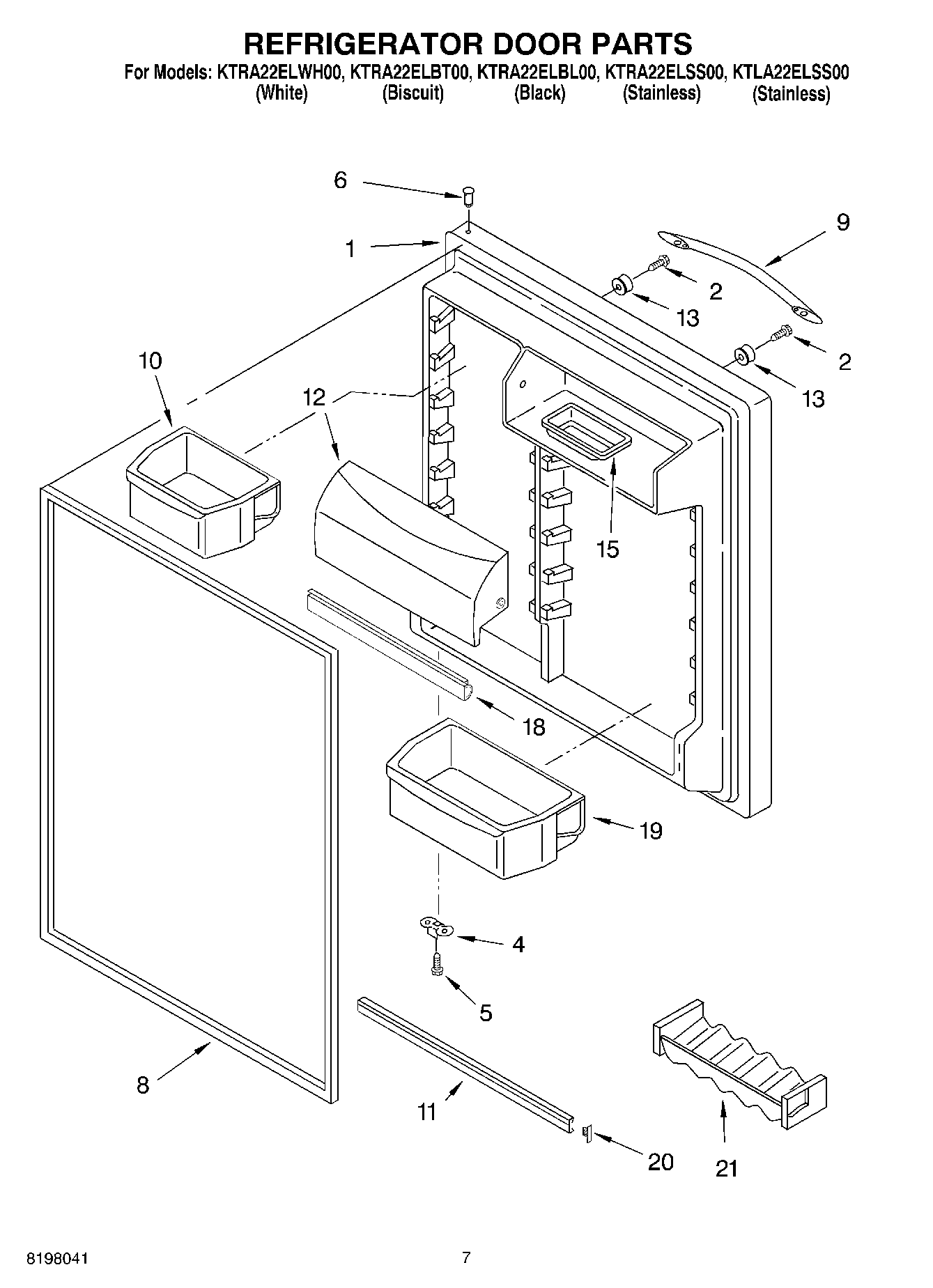

KTRA22ELSS00 04 – REFRIGERATOR DOOR

KTRA22ELSS00 04 – REFRIGERATOR DOOR

Written by

in

KTRA22ELSS00 04 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes Illus. 6,7 & 8) (Stainless (For Model KTLA22EMSS03))
1Refrigerator Door (Includes Illus. 6,7 & 8) (Stainless (For Model KTRA22EMSS03))
1Refrigerator Door (Includes Illus. 6,7 & 8) (Biscuit)
1Refrigerator Door (Includes Illus. 6,7 & 8) (Black)
1Refrigerator Door (Includes Illus. 6,7 & 8) (White)
2WP489463 Whirlpool Refrigerator Screw
4W11745278 Whirlpool Bracket
5WP488921 Whirlpool Refrigerator Screw
6WP2183003 Whirlpool Thimble
82177311 Whirlpool Refrigerator Magnetic Door Gasket
82159061 Whirlpool Refrigerator Door Gasket
9Handle (Biscuit)
9Handle (White)
9Handle (Black)
9Handle (Stainless)
10Bin, Door Shelf (2)
11WPW10421486 Whirlpool Refrigerator Door Trim
12Door, Compartment
13Stud, Handle
15Butter Tray
18Gasket, Door Compartment
19Bin, Door Shelf
20WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
21LEFT HAND DOOR SWING (Biscuit)
21LEFT HAND DOOR SWING (Black)
21LEFT HAND DOOR SWING (White)
21Beverage Holder
