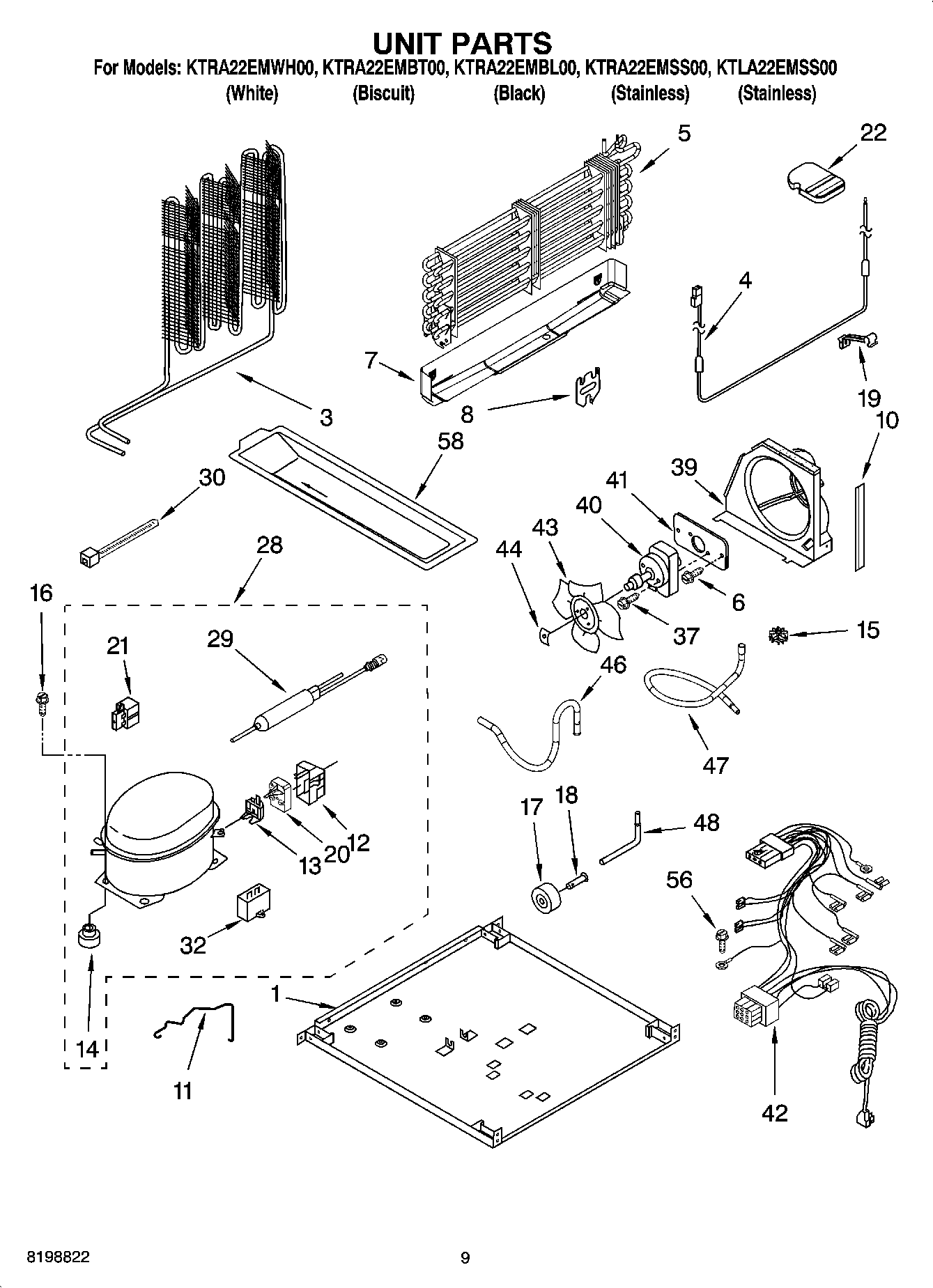

KTRA22EMBL00 05 – UNIT PARTSadmin2025-04-26T13:03:12+00:00KTRA22EMBL00 05 – UNIT PARTS ProductsPositionProduct1Plate, Unit Mounting3WP2214960 Whirlpool Refrigerator Condenser4WP2315530 Whirlpool Refrigerator Heater5EVAPORATOR ASSY.6WP8281196 Whirlpool Screw7Drain Pan8Bracket, Heater10Extension, Air Baffle11WP2301684 Whirlpool Retainer12WP2162358 Whirlpool Refrigerator Terminal Cover13WP2214067 Whirlpool Refrigerator Overload Relay14876811 Whirlpool Grommet14WP4387558 Whirlpool Refrigerator Compressor Grommet15Grommet17WPW10475495 Whirlpool Roller Assembly18W11594405 Whirlpool Axle19Clip, Heater208201647 Whirlpool Refrigerator Start Device21W10920279 Whirlpool Refrigerator Start Relay22Support Block28W10309988 Whirlpool Refrigerator Compressor29W10843121 Whirlpool Refrigerator Tube30WPW10339879 Whirlpool Wire Tie32WPW10662129 Whirlpool Refrigerator Run Capacitor378281197 Whirlpool Refrigerator Screw39Air Baffle40W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade41Plate42Wire Assembly Unit43W11458267 Whirlpool Refrigerator Fan Blade44WP486692 Whirlpool Refrigerator Nut462205533 Whirlpool Refrigerator Tube472214924 Whirlpool Refrigerator Tube482154109 Whirlpool Refrigerator Tube56WP489128 Whirlpool Refrigerator Screw58Following Parts Not Illustrated and Optional Parts Not Included588201826 Whirlpool Refrigerator Evaporator Tray58REFRIGERANT CHARGE 4.0 Ozs. (R134A)58876764 Whirlpool Refrigerator Primary Valve58VALVE, ACCESS (1/2``)58WP978025 Whirlpool Refrigerator Valve58978030 Whirlpool Refrigerator Valve58978027 Whirlpool Refrigerator Primary Valve58978026 Whirlpool Refrigerator Primary Valve58VALVE, ACCESS (5/8``)
