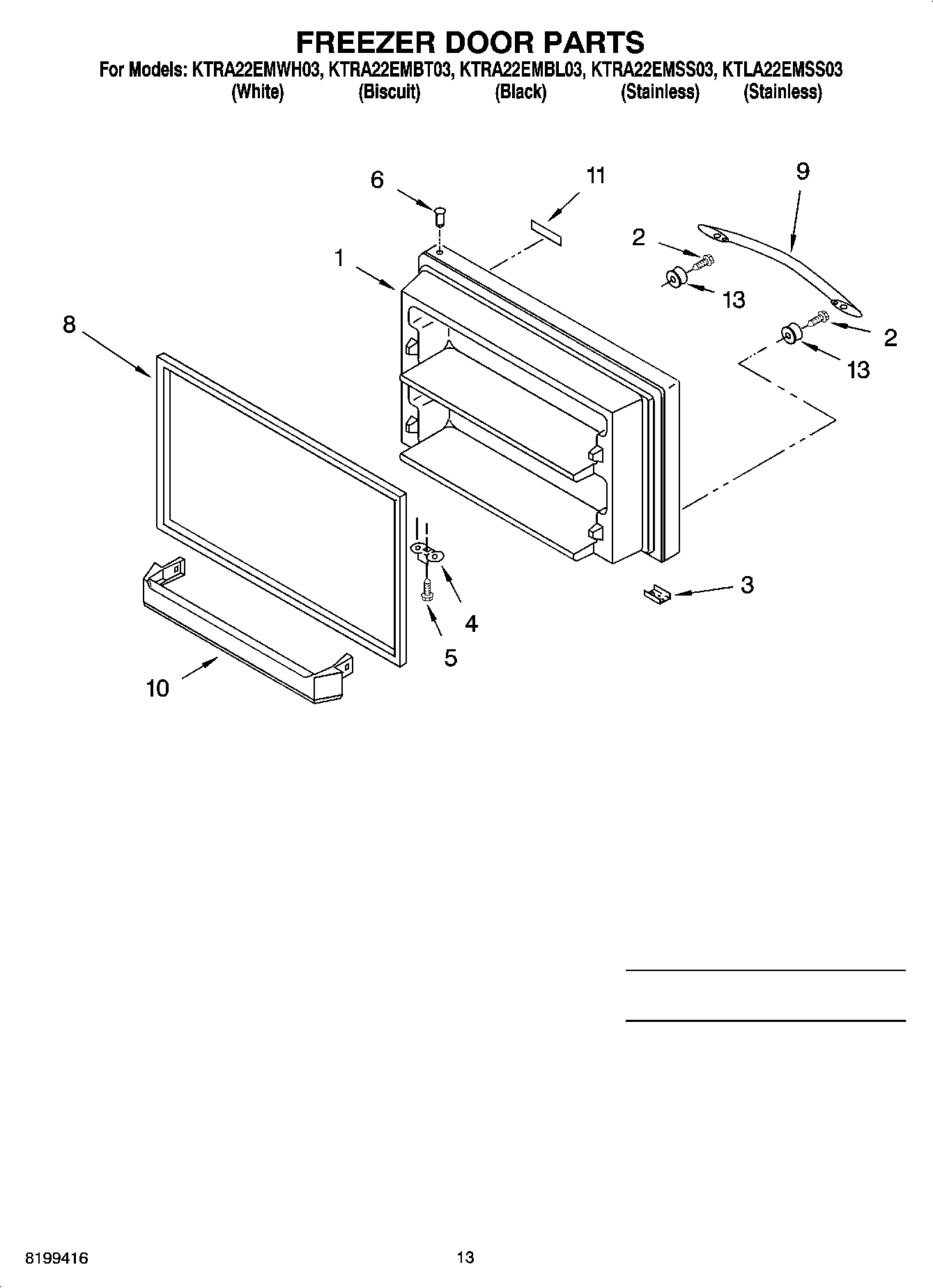

KTRA22EMSS03 07 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes Illus. 3,6 & 8) (Black)
1	Freezer Door (Includes Illus. 3,6 & 8) (Stainless (For Model KTLA22EMSS03))
1	Freezer Door (Includes Illus. 3,6 & 8) (Stainless (For Model KTRA22EMSS03))
1	Freezer Door (Includes Illus. 3,6 & 8) (Biscuit)
1	Freezer Door (Includes Illus. 3,6 & 8) (White)
2	WP488163 Whirlpool Refrigerator Screw
3	Tap Plate
4	W11745278 Whirlpool Bracket
5	WP488921 Whirlpool Refrigerator Screw
6	WP2183003 Whirlpool Thimble
8	2177310 Whirlpool Refrigerator Door Gasket
8	WHITE DOOR GASKET-FIP
9	Handle (White)
9	Handle (Black)
9	Handle (Biscuit)
9	Handle (Stainless)
10	Trim, Door
11	Nameplate (White)
11	Nameplate (Black)
11	Nameplate (Biscuit)
13	Following Parts Not Illustrated (Optional Parts Only)
13	LEFT HAND DOOR SWING (Black)
13	LEFT HAND DOOR SWING (Biscuit)
13	LEFT HAND DOOR SWING (White)
13	WPW10170540 Whirlpool Screw
13	LEFT HAND DOOR SWING FREEZER DOOR
