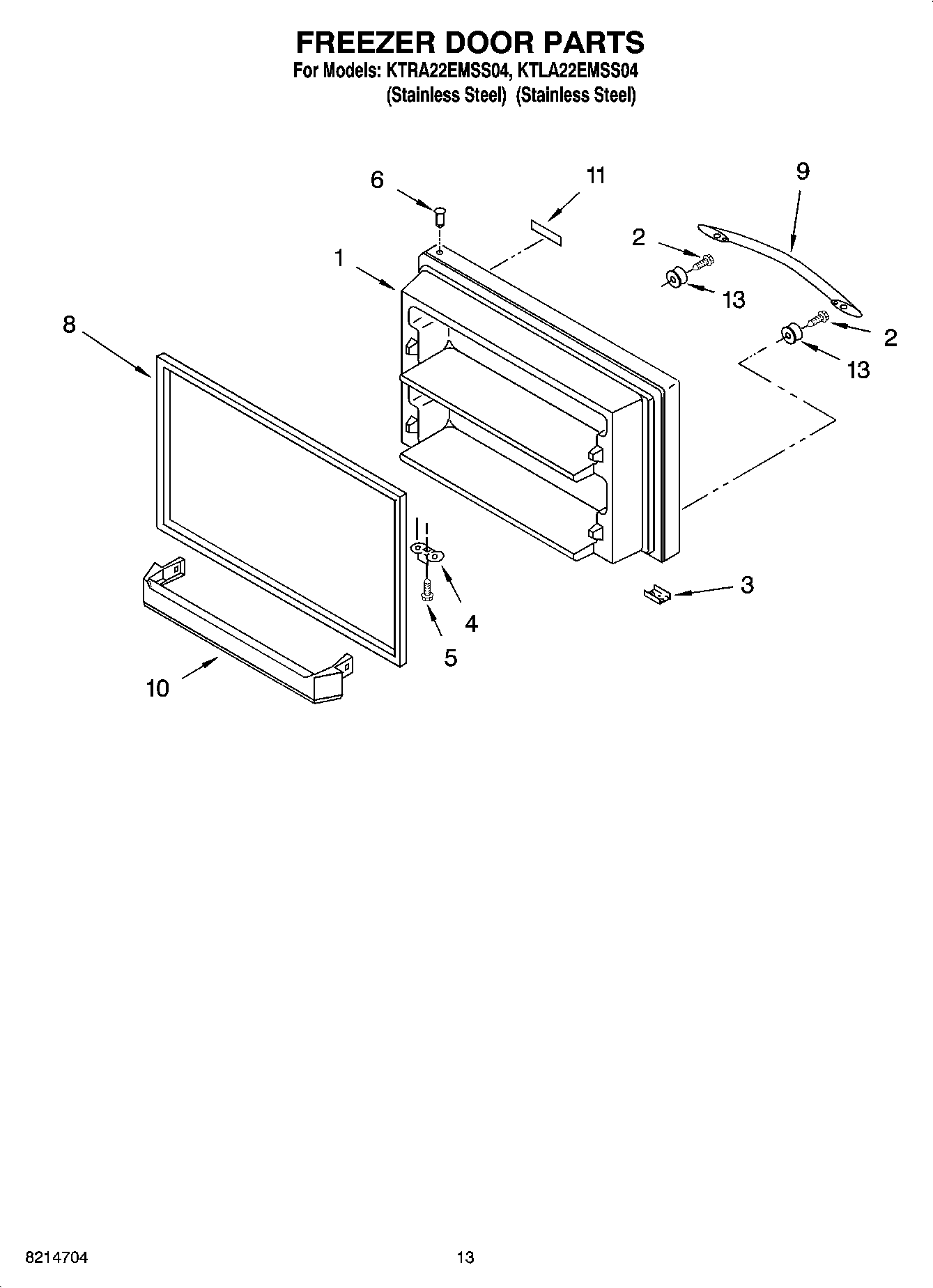

KTRA22EMSS04 07 – FREEZER DOOR PARTS

KTRA22EMSS04 07 – FREEZER DOOR PARTS

Written by

in

KTRA22EMSS04 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes Illus. 3,6 & 8) (Stainless (For Model KTLA22EMSS03))
1Freezer Door (Includes Illus. 3,6 & 8) (Stainless (For Model KTRA22EMSS03))
2WP488163 Whirlpool Refrigerator Screw
3Tap Plate
4W11745278 Whirlpool Bracket
5WP488921 Whirlpool Refrigerator Screw
6WP2183003 Whirlpool Thimble
82177310 Whirlpool Refrigerator Door Gasket
9Handle (Stainless)
10Trim, Door
11Nameplate (Black)
13WPW10170540 Whirlpool Screw
