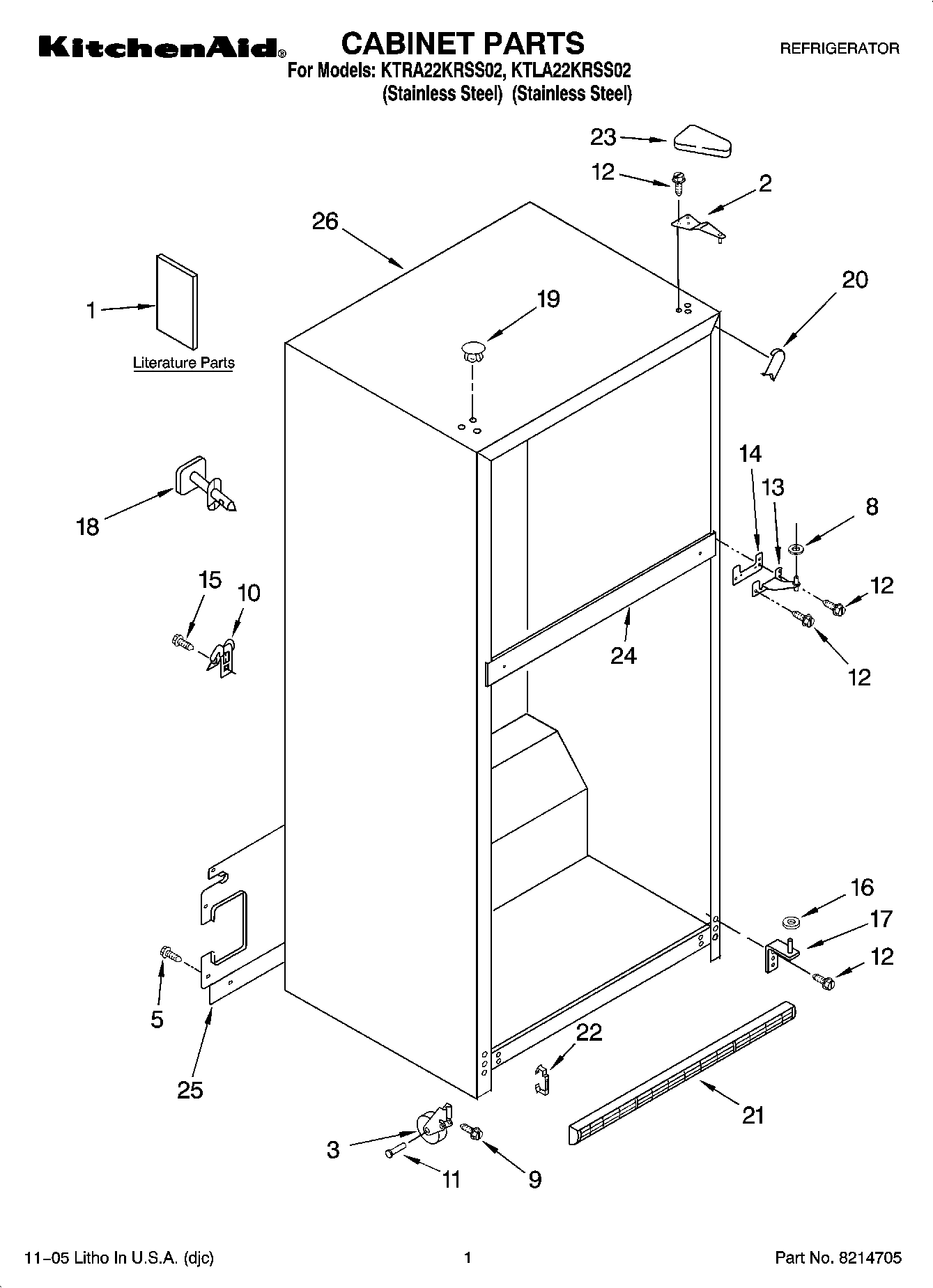

KTRA22KRSS02 01 – CABINET PARTSadmin2025-04-26T13:04:06+00:00KTRA22KRSS02 01 – CABINET PARTS ProductsPositionProduct1Use & Care Guide1Energy Label1Customer Instructions1Service & Wiring Sheet2WP2261963 Whirlpool Refrigerator Door Hinge3WP2166108 Whirlpool Refrigerator Cabinet Roller5WP489427 Whirlpool Refrigerator Screw8WP489467 Whirlpool Hinge Shim9WP3400504 Whirlpool Refrigerator Screw10549193 Whirlpool Refrigerator Power Clamp11W11594405 Whirlpool Axle12WP489497 Whirlpool Screw13WP2254618 Whirlpool Center Door Hinge14WP2183854 Whirlpool Refrigerator Shim15WP489464 Whirlpool Refrigerator Screw16WP487576 Whirlpool Washer17WP2254473 Whirlpool Refrigerator Door Hinge18Fitting, Water Tube (Not Serviced)19WP2183998 Whirlpool Refrigerator Button Plug20W11252732 Whirlpool Refrigerator Filler21GRILLE (INCLUDES ILLUS. 19) (BLACK)22CLIP, GRILLE23WP2213363 Whirlpool Refrigerator Cover24Rail Center (Not Serviced)25Cover, Unit26Cabinet (Not A Serviceable Part)
