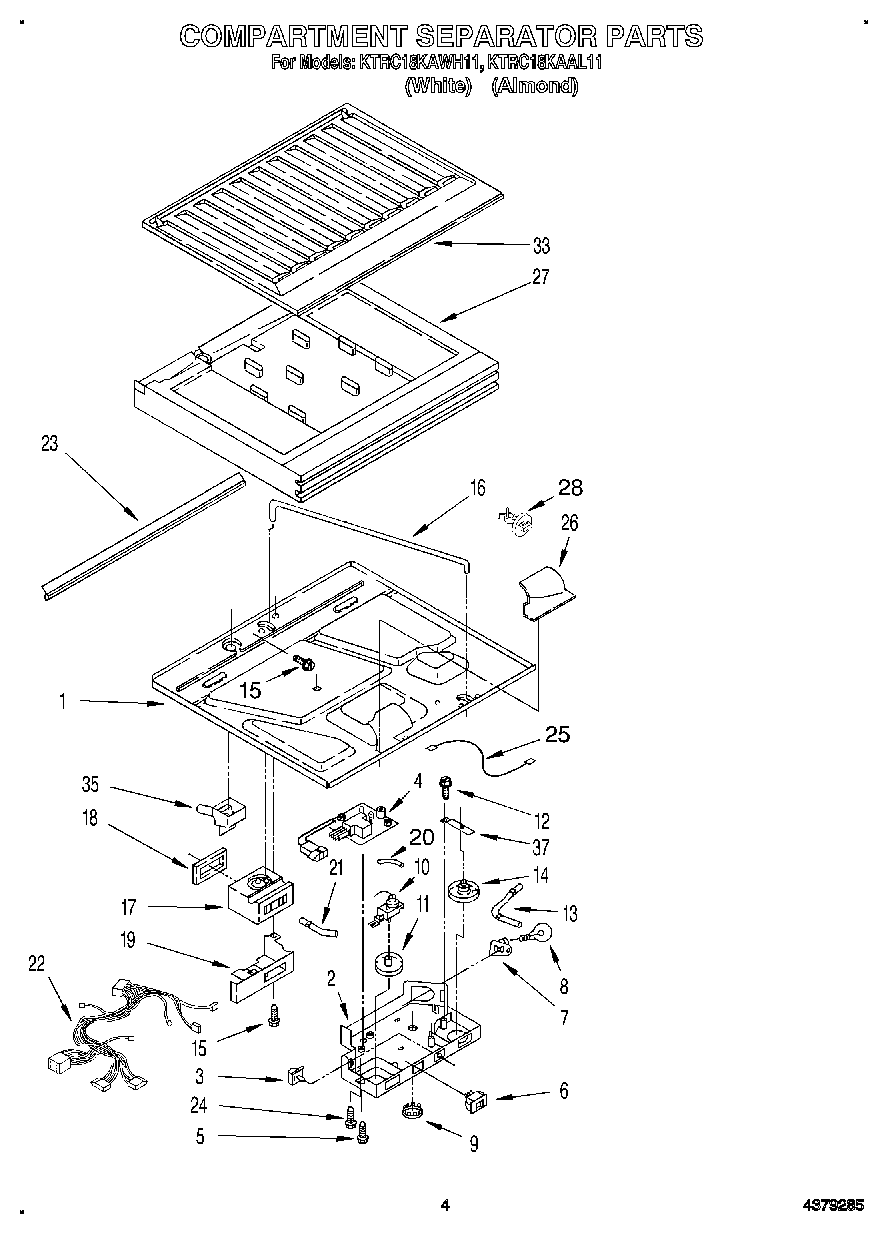

KTRC18KAWH11 03 – COMPARTMENT SEPARATOR

Products

Position	Product
1	Bottom, Compartment Separator
2	Box, Control
3	WP2149705 Whirlpool Refrigerator Door Switch
4	4388931 Whirlpool Defrost Timer
5	WP487353 Whirlpool Refrigerator Screw
6	WP938213 Whirlpool Refrigerator Power Switch
7	4387478 Whirlpool Refrigerator Light Socket
8	W11679940 Whirlpool Refrigerator Light Bulb Assembly
9	940014 Whirlpool Refrigerator Primary Button Plug
10	1123394 Whirlpool Cold Control Thermostat
11	Knob, Thermostat
12	WP965173 Whirlpool Dishwasher Screw
13	Light, Bar
14	Knob, Air Control
15	WP489478 Whirlpool Refrigerator Screw
16	Rod, Connecting
17	Air Diffuser Assembly
18	Gasket, Air Diffuser
19	Cover, Air Diffuser
20	WP2196003 Whirlpool Refrigerator Bar Riser
21	Light, Bar
22	Wiring Assembly, Control Box
23	Gasket, Bottom Separator
24	WP250830 Whirlpool Refrigerator Screw
25	Wire Assembly
26	Insulation, Filler
27	Insulation, Compartment Separator
28	Clip, Thermostat Tube Retention
33	Separator, Compartment (Top)
35	Cup, Drain
37	Bracket, Control Knob
