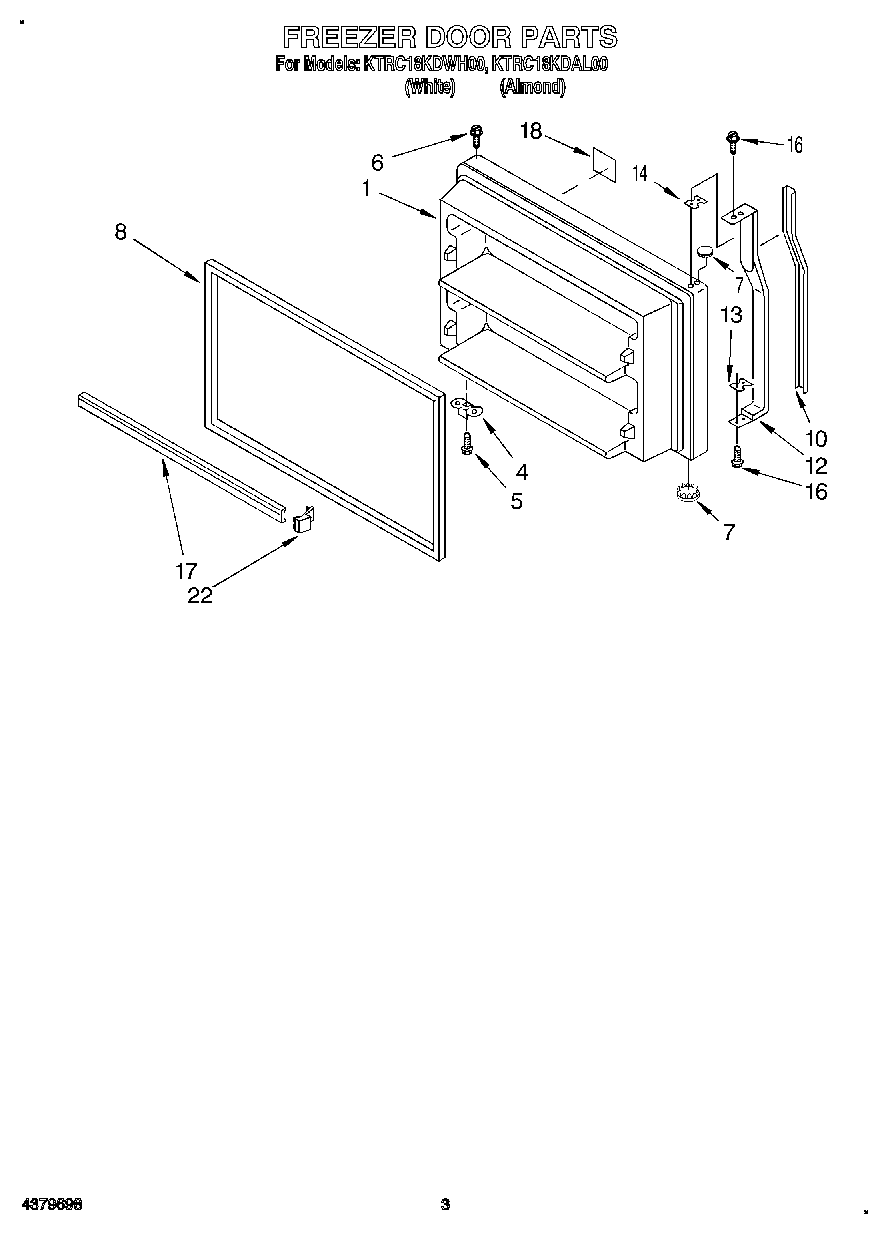

KTRC18KDWH00 02 – FREEZER DOOR

KTRC18KDWH00 02 – FREEZER DOOR

Written by

in

KTRC18KDWH00 02 – FREEZER DOOR

Products

PositionProduct
1Panel, Freezer Door (Includes Item 8) (Almond)
1Panel, Freezer Door (Includes Item 8) (White)
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
6WP8281206 Whirlpool Refrigerator Screw
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7Hole Plug (Almond)
8Door Gasket, Magnetic (Service)
10Insert, Handle (Almond)
10Insert, Handle (White)
12Handle
13Shim, Bottom
14Spacer, Handle
16WP488920 Whirlpool Refrigerator Screw
17Trim, Door Shelf (2)
18Nameplate (Almond Model)
18Nameplate (White Model)
22ENDCAP
