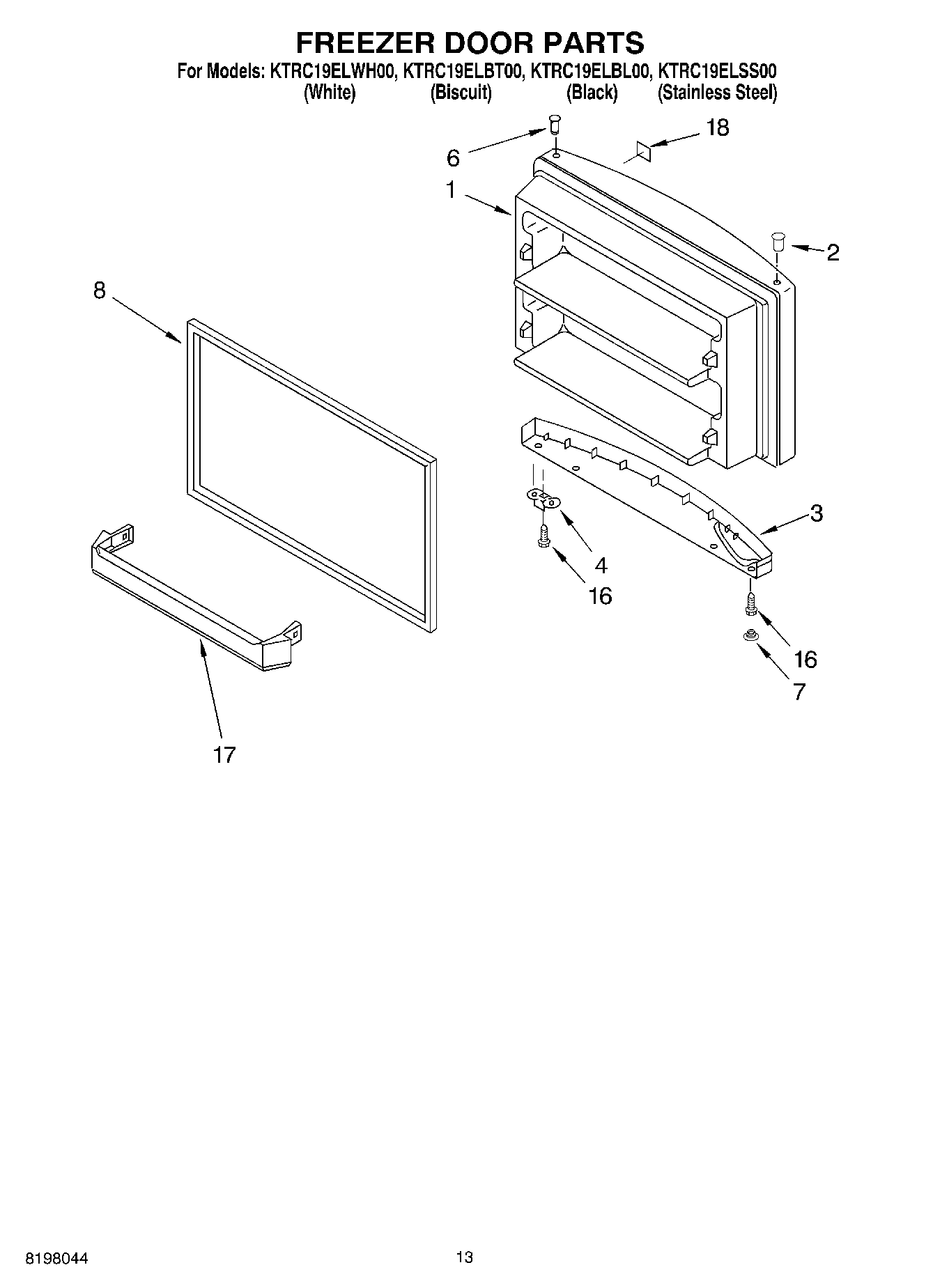

KTRC19ELBL00 07 – FREEZER DOOR

KTRC19ELBL00 07 – FREEZER DOOR

Written by

in

KTRC19ELBL00 07 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes Illus. 4 & 6) (Stainless Steel)
1Freezer Door (Includes 6 & 8) (Biscuit)
1Freezer Door (Includes Illus. 6 & 7) (Black)
1Freezer Door (Includes Illus. 6 & 7) (White)
2WP2212651 Whirlpool Refrigerator Button Plug
2WP2212649 Whirlpool Refrigerator Button Plug
2WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
3Handle (White)
3Handle (Biscuit)
3Handle (Black)
4W11745278 Whirlpool Bracket
6WP2183003 Whirlpool Thimble
7Hole Plug, Handle (Biscuit)
7HOLE PLUG, ENDCAP (BLACK)
7HOLE PLUG, ENDCAP (WHITE)
82177304 Whirlpool Refrigerator FIP Gasket
82159327 Whirlpool Refrigerator Door Gasket
16WP681249 Whirlpool Screw Assembly
17Trivet, Door
18Nameplate (Biscuit)
18Nameplate (Black)
18Nameplate (White)
