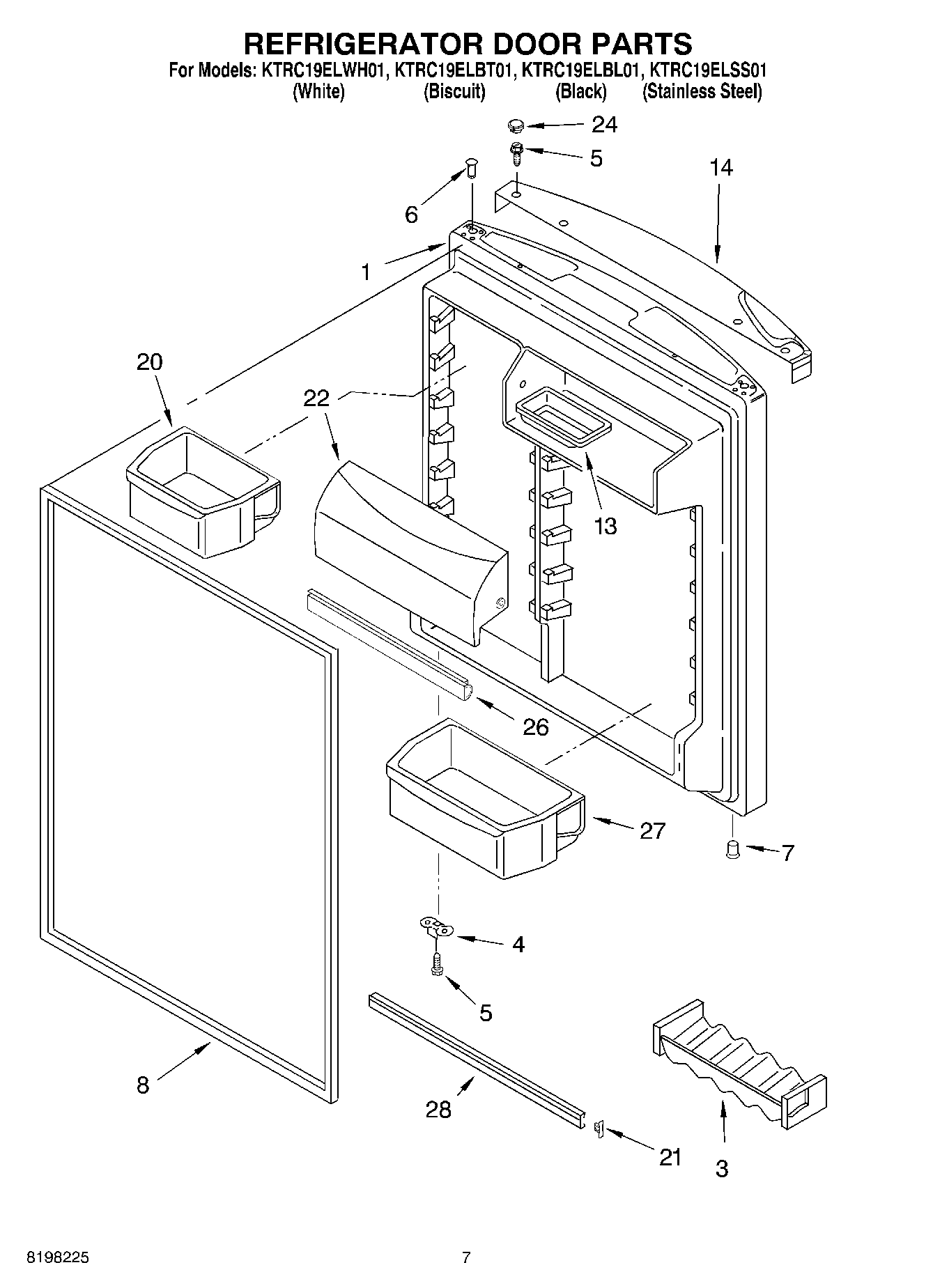

KTRC19ELWH01 04 – REFRIGERATOR DOORadmin2025-04-26T13:05:28+00:00KTRC19ELWH01 04 – REFRIGERATOR DOOR
Products
| Position | Product |
|---|
| 1 | Refrigerator Door (Includes Illus. 6 & 8) (White) |
| 1 | Refrigerator Door (Includes Illus. 6 & 8) (Biscuit) |
| 1 | Refrigerator Door (Includes Illus. 6 & 8) (Black) |
| 1 | Refrigerator Door (Includes Illus. 6 & 8) (Stainless Steel) |
| 3 | Beverage Holder |
| 4 | W11745278 Whirlpool Bracket |
| 5 | WP681249 Whirlpool Screw Assembly |
| 6 | WP2183003 Whirlpool Thimble |
| 7 | WP2212651 Whirlpool Refrigerator Button Plug |
| 7 | WP2212649 Whirlpool Refrigerator Button Plug |
| 7 | WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug |
| 8 | 2177305 Whirlpool Refrigerator Door FIP Gasket |
| 8 | 2159057 Whirlpool Refrigerator Fresh Food Door Gasket |
| 13 | Butter Tray |
| 14 | Handle, Endcap (Biscuit) |
| 14 | Handle, Endcap (White) |
| 14 | Handle, Endcap (Black) |
| 20 | Bin, Door Shelf (3) |
| 21 | WP2156006 Whirlpool Refrigerator Shelf Trim Endcap |
| 22 | Door, Compartment |
| 24 | Hole Plug, Handle (Biscuit) |
| 24 | HOLE PLUG, ENDCAP (WHITE) |
| 24 | HOLE PLUG, ENDCAP (BLACK) |
| 26 | Gasket, Door Compartment |
| 27 | Bin, Door Shelf |
| 28 | WPW10421484 Whirlpool Refrigerator Door Trim |
