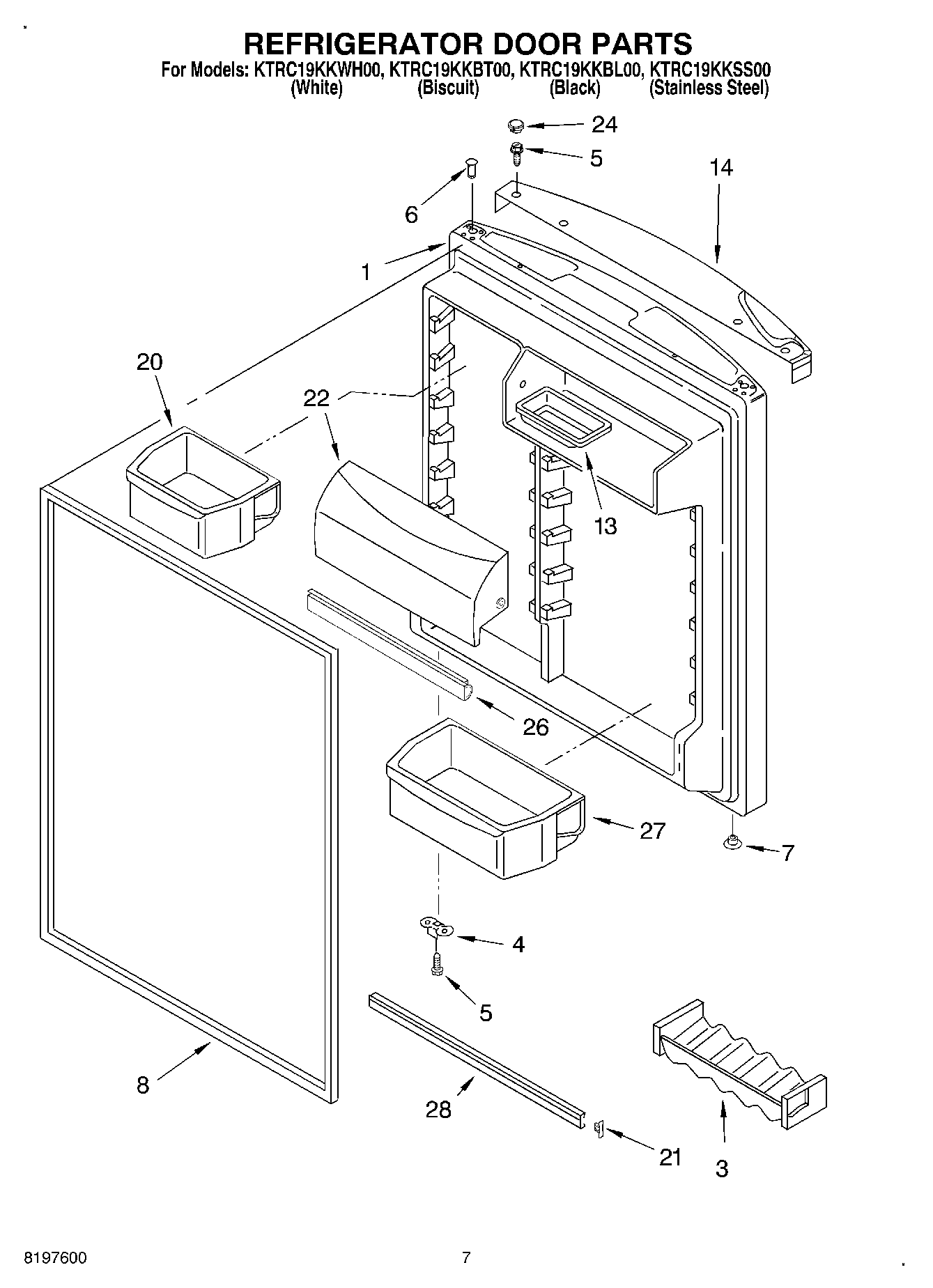

KTRC19KKBL00 04 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes Illus. 6 & 8) (White)
1Refrigerator Door (Includes Illus. 6 & 8) (Biscuit)
1Refrigerator Door (Includes Illus. 6 & 8) (Black)
1Refrigerator Door (Includes Illus. 6 & 8) (Stainless Steel)
3Beverage Holder
4W11745278 Whirlpool Bracket
5WP681249 Whirlpool Screw Assembly
6WP2183003 Whirlpool Thimble
7WP2212651 Whirlpool Refrigerator Button Plug
7WP2212649 Whirlpool Refrigerator Button Plug
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
82177305 Whirlpool Refrigerator Door FIP Gasket
82159057 Whirlpool Refrigerator Fresh Food Door Gasket
13Butter Tray
14Handle, Endcap (Biscuit)
14Handle, Endcap (White)
14Handle (Black)
20Bin, Door Shelf (3)
21WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
22WP2313637 Whirlpool Cutting Grid Assembly
24HOLE PLUG, ENDCAP (WHITE)
24HOLE PLUG, ENDCAP (BLACK)
24Hole Plug, Handle (Biscuit)
26Gasket, Door Compartment
27Bin, Door Shelf
28WPW10421484 Whirlpool Refrigerator Door Trim
