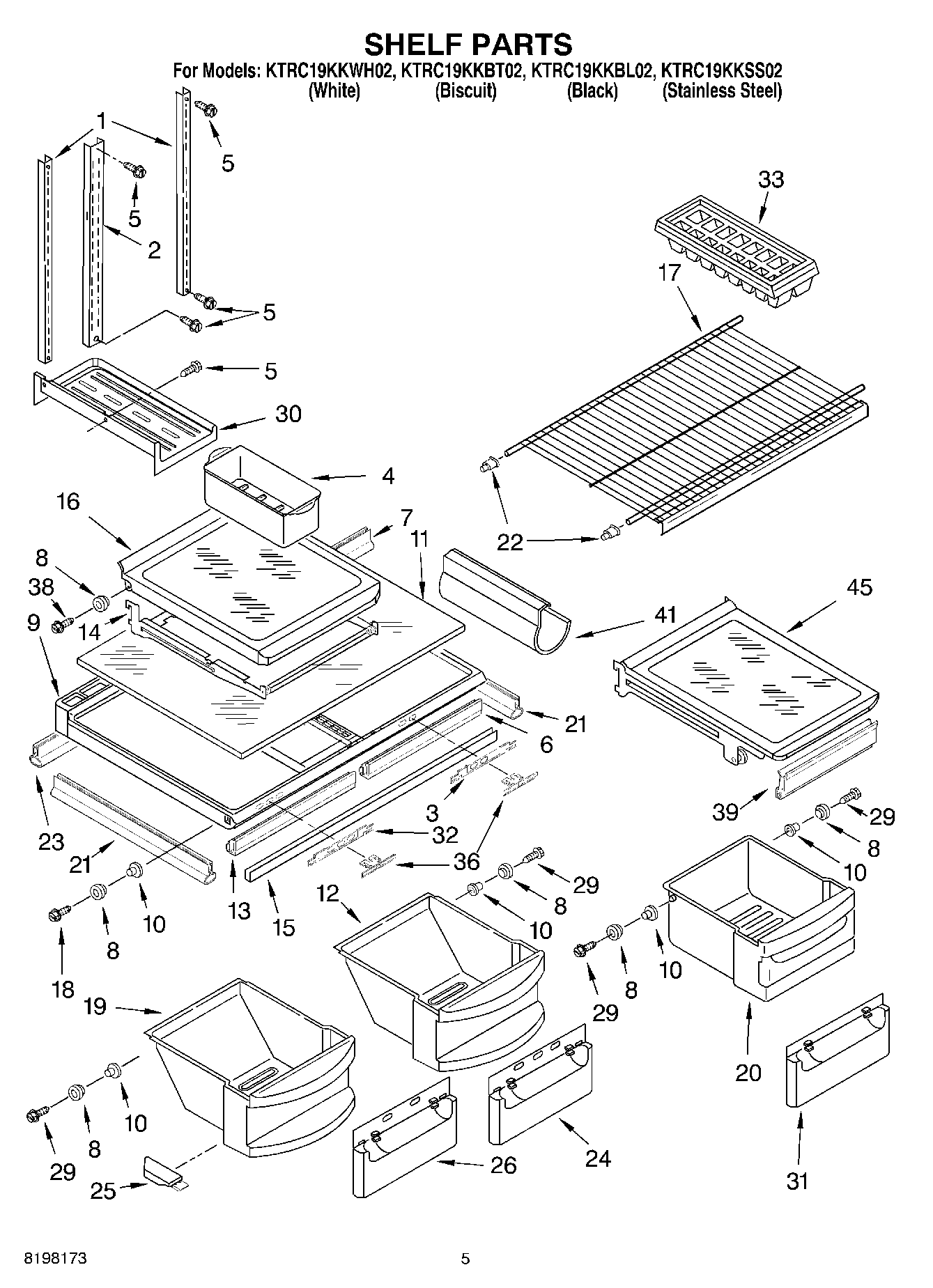

KTRC19KKBL02 03 – SHELF

Products

Position	Product
1	Shelf, Ladder (2)
2	Shelf, Ladder
3	Slide, Humidity
4	W10136387A Whirlpool Refrigerator Egg Container
5	WP489478 Whirlpool Refrigerator Screw
6	WP1125528 Whirlpool Refrigerator Gasket
7	Gasket, Crisper Cover (Rear)
8	Roller
9	Crisper Cover (Includes Rollers)
10	Eyelet, Roller
11	Glass, Crisper Cover
12	Pan, Crisper (Includes Rollers)
14	Frame Assembly, Spillguard
15	WP2172748 Whirlpool Drawer Support
16	Shelf Assembly, Spillguard (3) (Includes Rollers)
17	WP2176275 Whirlpool Refrigerator Wire Shelf
18	WPW10272364 Whirlpool Refrigerator Screw
19	Pan, Crisper (Includes Rollers)
20	Pan, Meat (Includes Rollers)
21	Gasket, Crisper Cover (Side) (4)
22	2163762 Whirlpool Refrigerator Cup Assembly
23	Gasket, Pan Cover-Rear
24	Window, Crisper Pan
25	Cap, Crisper (Left Side)
25	Cap, Crisper (Right Side)
26	Window, Crisper
29	WP489261 Whirlpool Refrigerator Screw
30	Shelf, Ice Tray
31	Window, Meat Pan
32	Slide, Humidity
33	WP841180A Whirlpool Microwave Glass Turntable Tray
36	Button, Humidity Control
38	Screw
39	Gasket, Front
41	W10777924 Whirlpool Refrigerator Wine Rack
45	Shelf Assembly, Spillguard
