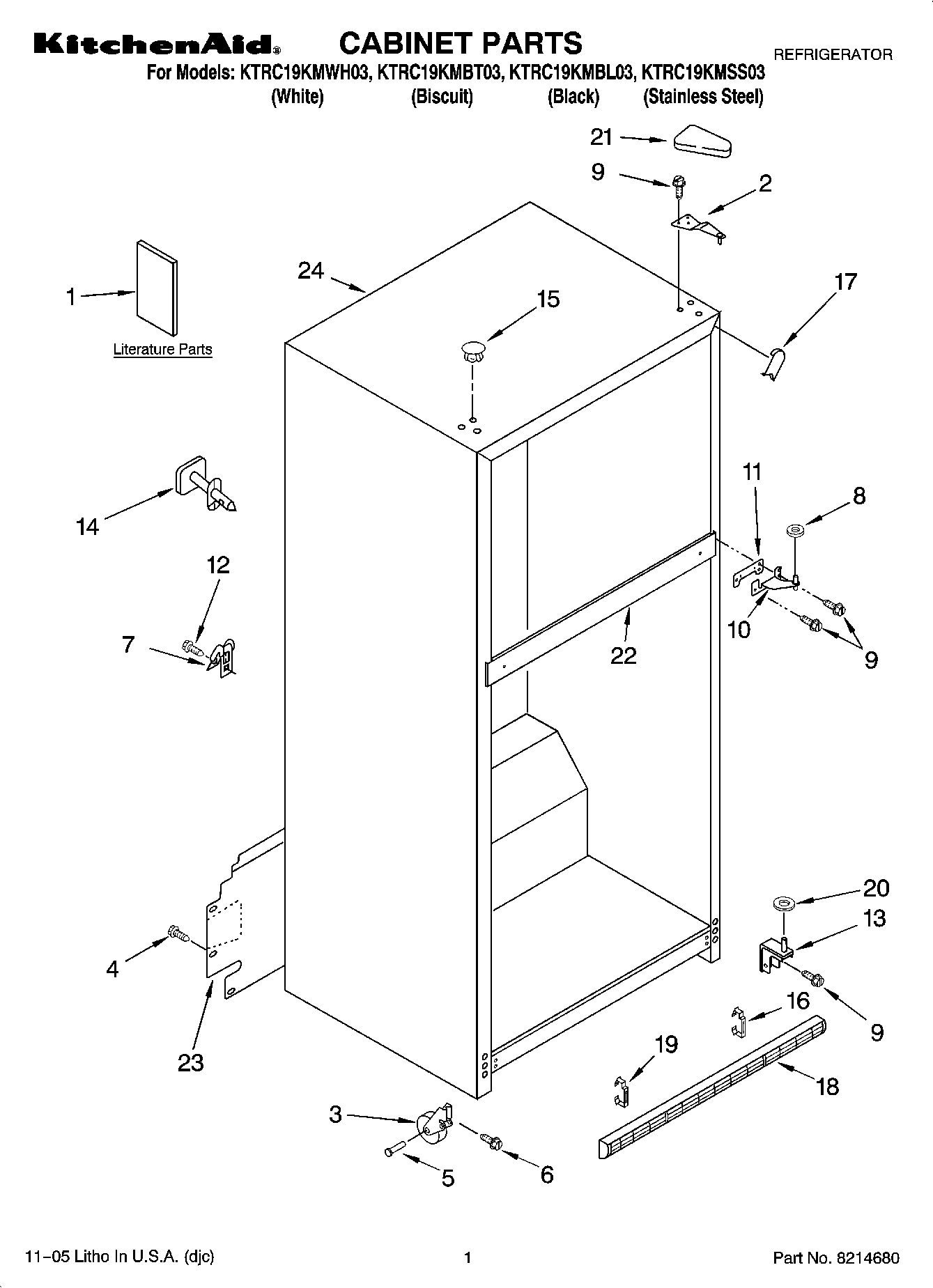

KTRC19KMBL03 01 – CABINET PARTS

Products

PositionProduct
1Service & Wiring Sheet
1Energy Label
1Use & Care Guide
1Customer Instructions
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
4WP489427 Whirlpool Refrigerator Screw
5W11594405 Whirlpool Axle
6WP3400504 Whirlpool Refrigerator Screw
7549193 Whirlpool Refrigerator Power Clamp
8WP489467 Whirlpool Hinge Shim
9WP489497 Whirlpool Screw
10WP2254618 Whirlpool Center Door Hinge
11WP2183854 Whirlpool Refrigerator Shim
12WP489464 Whirlpool Refrigerator Screw
13WP2254473 Whirlpool Refrigerator Door Hinge
14Fitting, Water Tube (Not Serviced)
15Hole Plug (6) (Biscuit)
15WP2151652 Whirlpool Refrigerator Button Plug
15WP2183998 Whirlpool Refrigerator Button Plug
162254385 Whirlpool Refrigerator Clip
17W11252732 Whirlpool Refrigerator Filler
17WPW10283959 Whirlpool Refrigerator Filler
17W10283958 Whirlpool Refrigerator Filler
18WP2254386 Whirlpool Refrigerator Grille
18Grille (Includes Illus. 4 & 24) (Black)
19CLIP, GRILLE
20WP487576 Whirlpool Washer
21WP2213363 Whirlpool Refrigerator Cover
21WP2213360 Whirlpool Refrigerator Cover
212213364 Whirlpool Refrigerator Cover
22Rail Center (Not Serviced)
23Cover, Unit
24Cabinet (Not A Serviceable Part)
