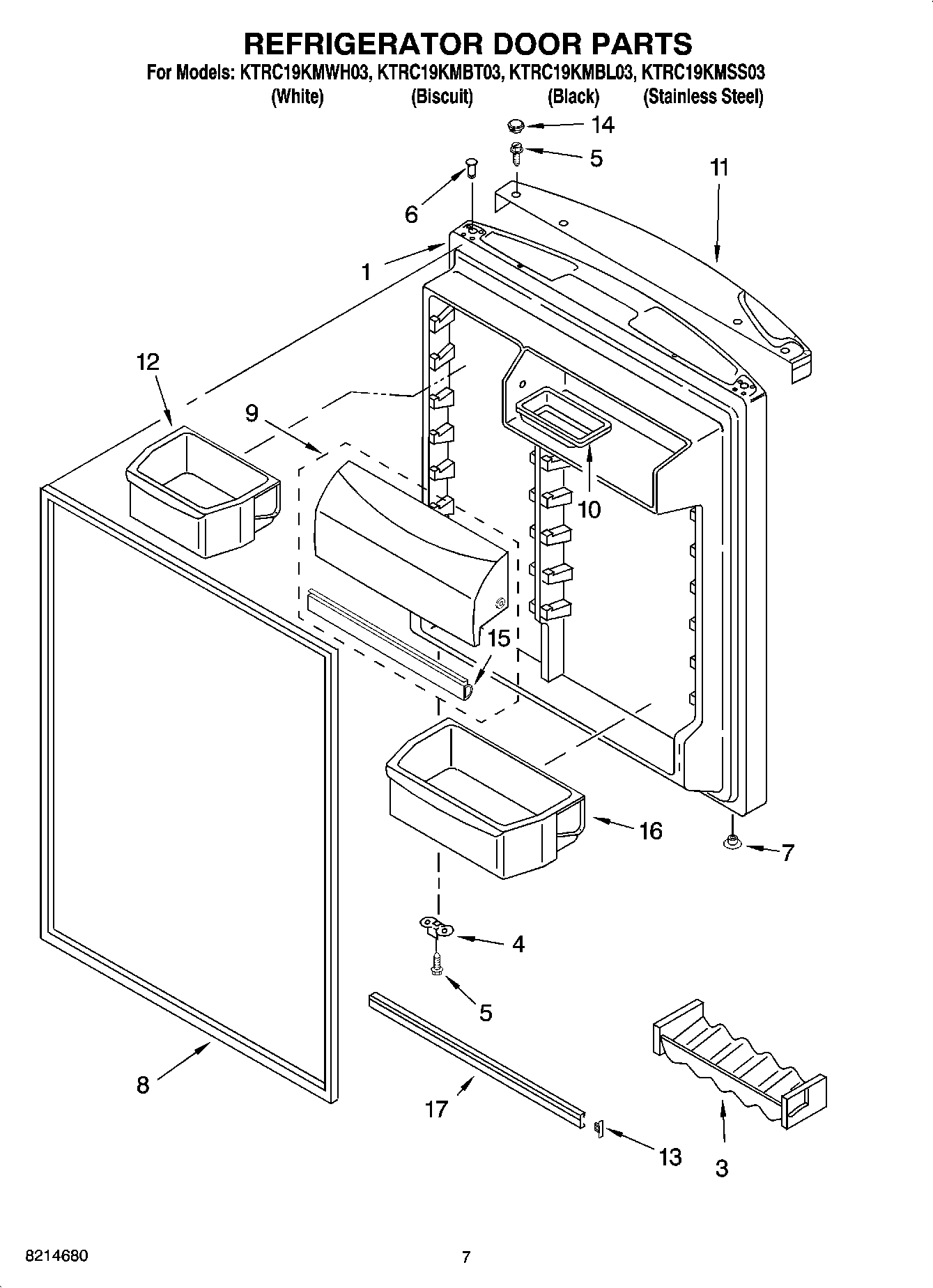

KTRC19KMBL03 04 – REFRIGERATOR DOOR PARTS

KTRC19KMBL03 04 – REFRIGERATOR DOOR PARTS

Written by

in

KTRC19KMBL03 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Illus. 6 & 8) (Black)
1Refrigerator Door (Includes Illus. 6 & 8) (Stainless Steel)
1Refrigerator Door (Includes Illus. 6 & 8) (Biscuit)
1Refrigerator Door (Includes Illus. 6 & 8) (White)
3Beverage Holder
4W11745278 Whirlpool Bracket
5WP681249 Whirlpool Screw Assembly
6WP2183003 Whirlpool Thimble
7WP2212649 Whirlpool Refrigerator Button Plug
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7WP2212651 Whirlpool Refrigerator Button Plug
82177305 Whirlpool Refrigerator Door FIP Gasket
82159057 Whirlpool Refrigerator Fresh Food Door Gasket
9Door, Compartment (Includes 9)
10Butter Tray
11Handle, Endcap (White)
11Handle, Endcap (Biscuit)
11Handle, Endcap (Black)
12Bin, Door Shelf (3)
13WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
14Hole Plug, Handle (Biscuit)
14HOLE PLUG, ENDCAP (BLACK)
14HOLE PLUG, ENDCAP (WHITE)
15Gasket, Door Compartment
16Bin, Door Shelf
17WPW10421484 Whirlpool Refrigerator Door Trim
