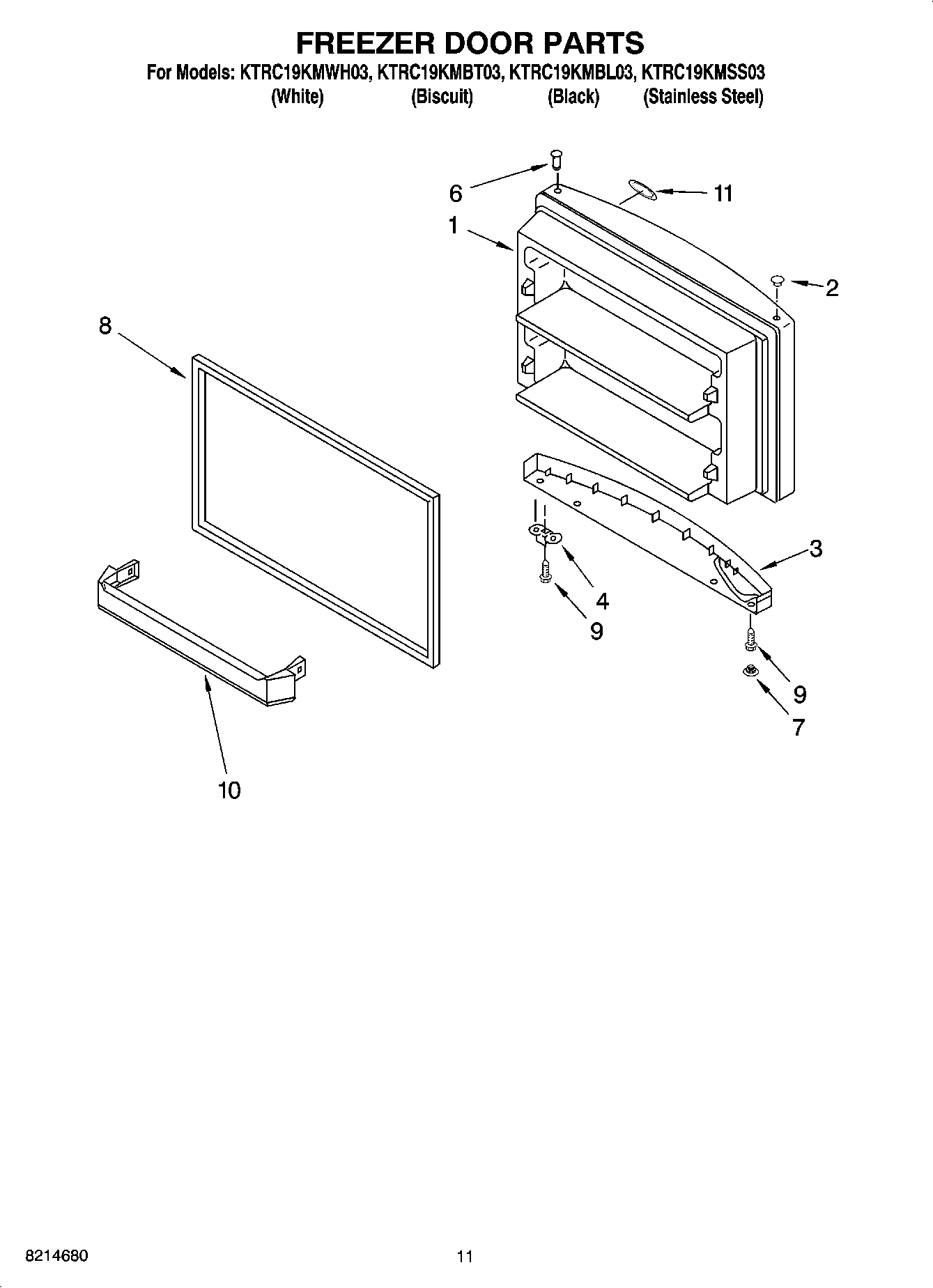

KTRC19KMSS03 06 – FREEZER DOOR PARTS, OPTIONAL PARTS

KTRC19KMSS03 06 – FREEZER DOOR PARTS, OPTIONAL PARTS

Written by

in

KTRC19KMSS03 06 – FREEZER DOOR PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI109358A
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799832
WPL 799833
WPL 876029
W11729596 Whirlpool Ice Maker Field Install Kit
72032 Whirlpool Touch Up Paint Black
285006 Whirlpool Spray
WPL ARI109359A
WPL ARI109355A
WPL ARI109356A
WPL ARI109357A
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
Torx Key
WP542638 Whirlpool Refrigerator Grease
350942 Whirlpool Spray Paint
212643 Whirlpool Refrigerator Permagum Sealer
799344 Whirlpool Refrigerator Paint
4392899 Whirlpool Biscuit Touch-Up Paint
72017 Whirlpool Appliance Touch-Up Paint White
350930 Whirlpool White Spray Paint
4392901 Whirlpool Biscuit Spray Paint
511873 Whirlpool Refrigerator Paint
606755 Whirlpool Refrigerator Bag
833938 Whirlpool Refrigerator Terminal
876370 Whirlpool Refrigerator Insulation
WP503695 Whirlpool Refrigerator Sealer
WP505587 Whirlpool Refrigerator Sealer
1Freezer Door (Includes 6 & 8) (Biscuit)
1Freezer Door (Includes Illus. 4 & 6) (Stainless Steel)
1Freezer Door (Includes Illus. 6 & 7) (Black)
1Freezer Door (Includes Illus. 6 & 7) (White)
2WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
2WP2212649 Whirlpool Refrigerator Button Plug
2WP2212651 Whirlpool Refrigerator Button Plug
3Handle (Black)
3Handle (Biscuit)
3Handle (White)
4W11745278 Whirlpool Bracket
6WP2183003 Whirlpool Thimble
7HOLE PLUG, ENDCAP (BLACK)
7HOLE PLUG, ENDCAP (WHITE)
7Hole Plug, Handle (Biscuit)
82177304 Whirlpool Refrigerator FIP Gasket
82159327 Whirlpool Refrigerator Door Gasket
9WP681249 Whirlpool Screw Assembly
10Trivet, Door
11Nameplate (Biscuit)
11Nameplate (White)
11Nameplate (Black)
