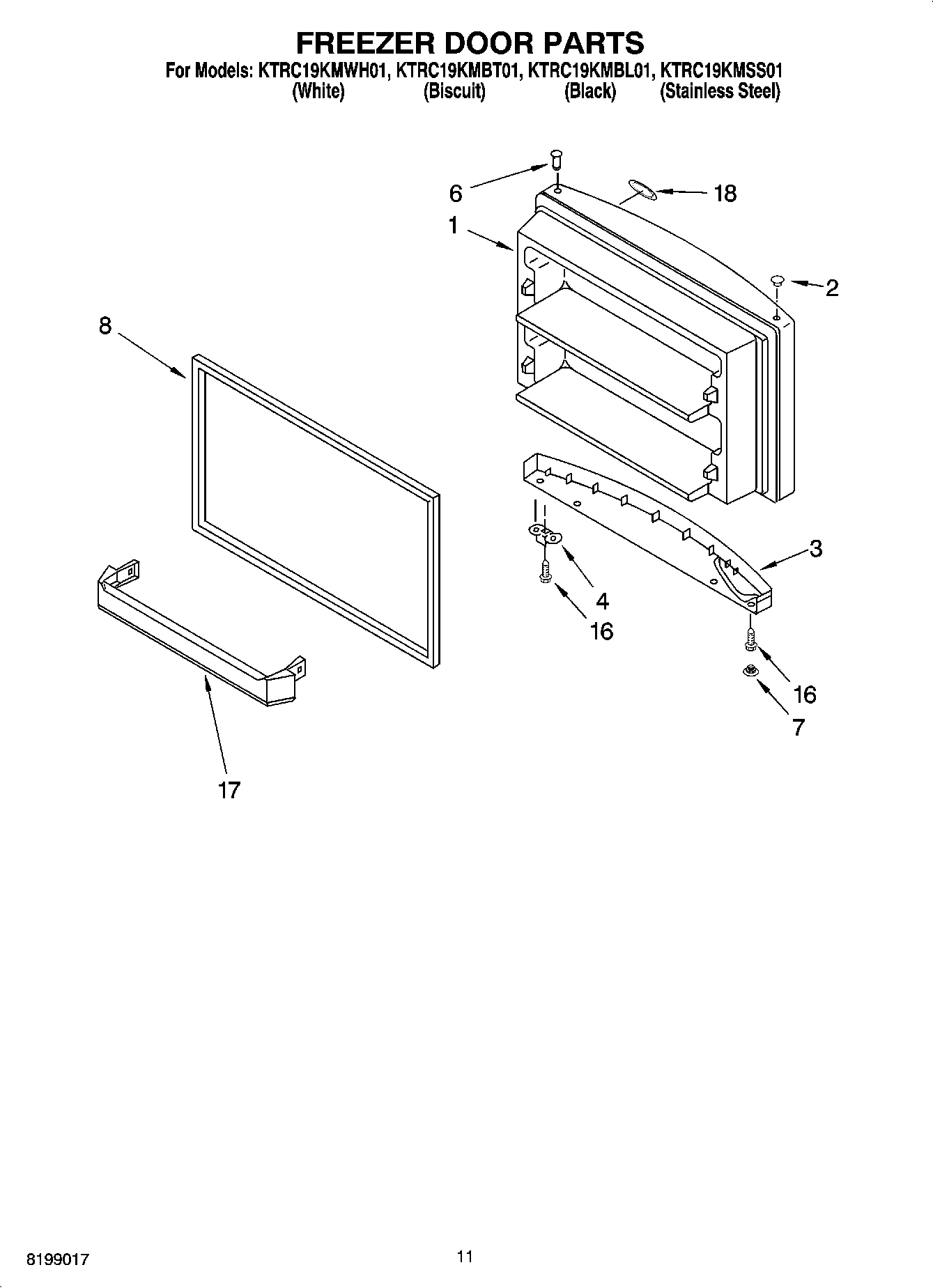

KTRC19KMWH01 06 – FREEZER DOOR PARTS, OPTIONAL PARTS

KTRC19KMWH01 06 – FREEZER DOOR PARTS, OPTIONAL PARTS

Written by

in

KTRC19KMWH01 06 – FREEZER DOOR PARTS, OPTIONAL PARTS

Products

PositionProduct
350930 Whirlpool White Spray Paint
Torx Key
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799832
WPL 799833
WPL 876029
W11729596 Whirlpool Ice Maker Field Install Kit
WPL ARI109381A
WPL ARI109380A
WPL ARI109379A
WPL ARI109383A
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
WP542638 Whirlpool Refrigerator Grease
WP505587 Whirlpool Refrigerator Sealer
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Almond (Uncut)
606755 Whirlpool Refrigerator Bag
212643 Whirlpool Refrigerator Permagum Sealer
350942 Whirlpool Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
511873 Whirlpool Refrigerator Paint
WPL ARI109382A
WP503695 Whirlpool Refrigerator Sealer
876370 Whirlpool Refrigerator Insulation
833938 Whirlpool Refrigerator Terminal
1Freezer Door (Includes Illus. 6 & 7) (Black)
1Freezer Door (Includes Illus. 4 & 6) (Stainless Steel)
1Freezer Door (Includes 6 & 8) (Biscuit)
1Freezer Door (Includes Illus. 6 & 7) (White)
2WP2212651 Whirlpool Refrigerator Button Plug
2WP2212649 Whirlpool Refrigerator Button Plug
2WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
3Handle (Black)
3Handle (Biscuit)
3Handle (White)
4W11745278 Whirlpool Bracket
6WP2183003 Whirlpool Thimble
7Hole Plug, Handle (Biscuit)
7HOLE PLUG, ENDCAP (BLACK)
7HOLE PLUG, ENDCAP (WHITE)
82159327 Whirlpool Refrigerator Door Gasket
82177304 Whirlpool Refrigerator FIP Gasket
16WP681249 Whirlpool Screw Assembly
17Trivet, Door
18Nameplate (Biscuit)
18Nameplate (White)
18Nameplate (Black)
